UNIVIEW
Videowall kit 2x2 - Inkluderer monitorer - Inkluderer vægbeslag - Daisy chain via HDMI
SKU: UV-MWA55B1E-KIT2X2-WALL
5.665.69 kr
Ekskl. moms
Levering 1-4 dage
På lager
Videowall kit 2x2 - Inkluderer monitorer - Inkluderer vægbeslag - Daisy chain via HDMI
Kategori
Video wall monitors
Mærke
UNIVIEW
- Videowall kits er komplette løsninger der integrerer professionelle monitorer og et robust kabinet-type støttesystem, designet til at skabe storformat skærme i forskellige konfigurationer. Takket være deres modulære struktur og kabinet-type støtte tilbyder videowall kits en stabil, sikker og æstetisk installation. Derudover gør de det muligt at konfigurere forskellige størrelser og opløsninger for at tilpasse sig de specifikke behov i hvert projekt og garantere en imponerende og professionel visuel oplevelse.

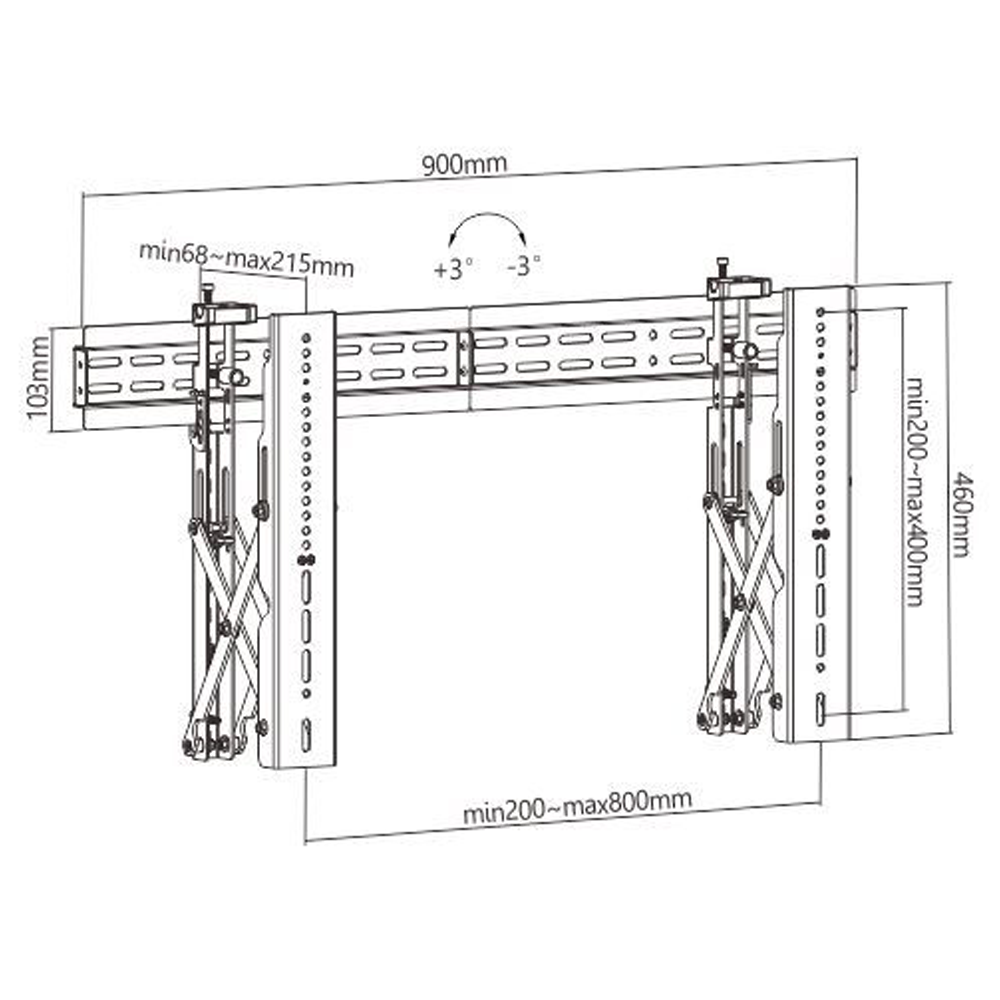

MONITOR SUPPORT (LVW02-48T) | |
| Type | Wall bracket for video wall |
| Maximum supported weight | 45 Kg |
| VESA | 200x200 mm 400x200 mm 300x300 mm 400x400 mm 600x400 mm 800x400 mm |
| Distance to wall | 68 ~ 215 mm |
| Level adjustment | +/-3° |
| Dimensions | 900 (W) x 465 (H) x 215 (D) mm |
| Material | Steel |
| Colour | Black |
UV-MW-A55-B1-E | |
| Brand | UNIVIEW |
| Size | 55" |
| Resolution | 1920x1080 |
| Refresh rate | 60 Hz |
| Panel type | ADS |
| Mark | 3,5 mm (A-A: total frame when installing two monitors together) Superior: 2,3 mm Left: 2,3 mm Inferior: 1,2 mm Law: 1,2 mm |
| Brightness | 450 nits |
| Contrast | 1200:1 |
| Anti-reflective (haze) | 25% |
| Response time | 8 ms |
| Viewing angle (horizontal / vertical) | 178º / 178º |
| Colour depth | 8 bit (16,7 M) |
| Color range | 72% NTSC |
| Functioning | 24/7 |
| Inputs | HDMI x1 DVI x1 VGA x1 CVBS x1 DisplayPort x1 USB 2.0 x1 RS232 x1 IR x1 |
| Outputs | HDMI x1 RS232 x1 |
| Daisy chain | Yes, via HDMI Up to a maximum of 9 monitors (total) |
| Video wall configuration | Using the remote control and the monitor's video wall settings |
| Orientation | Horizontal |
| Dimensions | 1.213,5 (W) x 684,3 (H) x 89,89 (D) mm |
| VESA | 600x400 mm |
| Weight | 14,9 Kg |
| Power | AC 100 ~ 240 V 50/60 Hz |
| Energy consumption | 180 W (max.) |
| Operating conditions | Temperature: 0 ~ 40 ºC Humidity: 20 ~ 90 % (No condensation) |
| Storage conditions | Temperature: -20 ~ 60 ºC Humidity: 10 ~ 90 % (No condensation) |
- 4 x Videowall monitors 55" UV-MW-A55-B1-E
- 4 x Power cable
- Network cable
- 3 x HDMI cable (1,8 m)
- 4 x Grounding cable
- IR receiver
- Remote control
- 4 x Monitor brackets
- Screws
- Quick start guide
