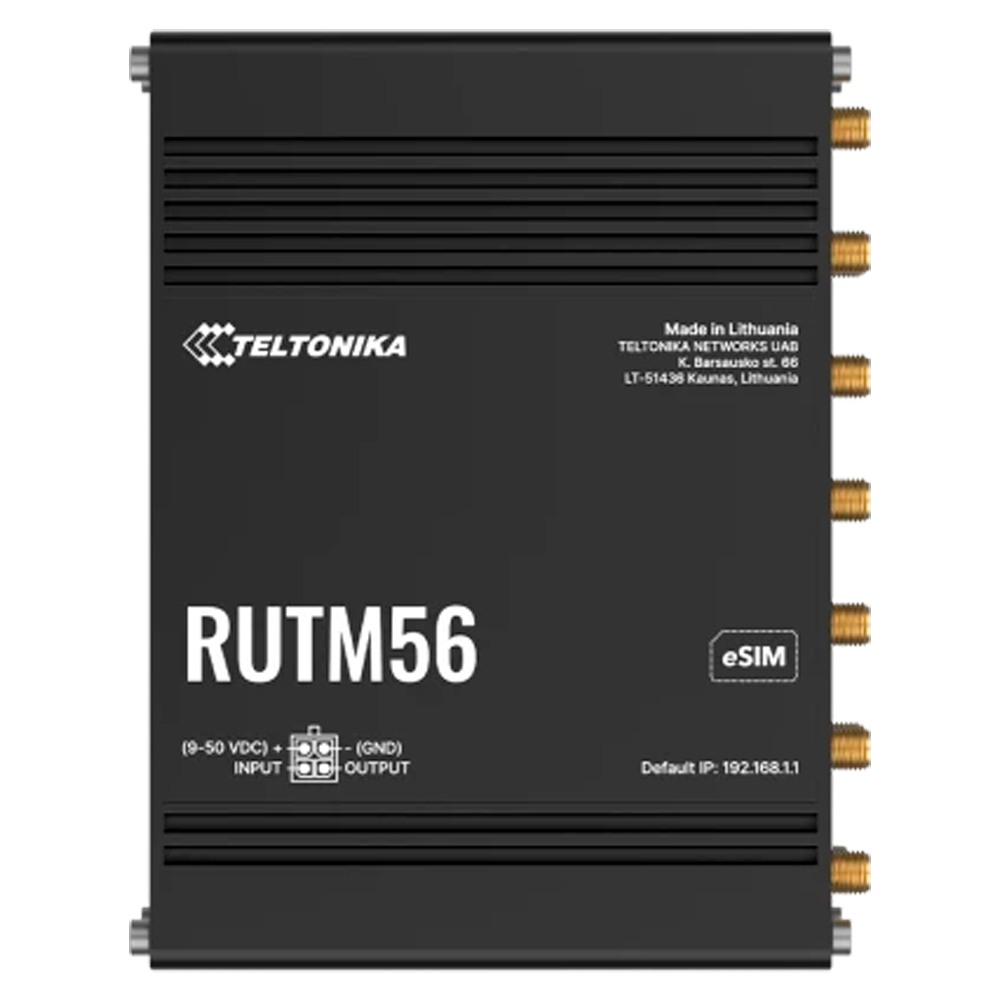

Teltonika Industriel Router 5G - Dobbelt modem (1x Modem 5G, 1x Modem 4G) - 5 porte 10/100/1000Mbps - WiFi 802.11 b/g/n/ac - Aluminiumshus

SKU: TK-RUTM56

9.787.50 kr

Ekskl. moms

Levering 1-4 dage

På lager

Teltonika Industriel Router 5G - Dobbelt modem (1x Modem 5G, 1x Modem 4G) - 5 porte 10/100/1000Mbps - WiFi 802.11 b/g/n/ac - Aluminiumshus

Brand	Teltonika
Geographical area of operation/Bands supported	EMEA, APAC, Brazil 5G NR NSA: n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78 5G NR SA: n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78 4G (LTE-FDD): B1, B3, B5, B7, B8, B20, B28, B32 4G (LTE-TDD): B38, B40, B41, B42, B43 3G: B1, B5, B8
Device	Industrial Router 5G
WiFi	IEEE 802.11 b/g/n/ac Wave 2 Dual Band 2.4+5GHz
LTE	Double modem (1x Modem 5G , 1x Modem 4G)
Ethernet	5 Ethernet ports RJ45 10/100/1000 Mbps (1x LAN/WAN + 4x LAN)
Antenna connectors	4 x LTE and 2 x WiFi (antennas included)
SIM	2 microSIM card slots
eSIM	2 x eSIM compatible Modem (up to 7 profiles per eSIM)
CPU	880 MHz, Dual-Core MediaTek MIPS1004KC
RAM	256 MB DDR3
Flash	16MB serial NOR flash, 256MB serial NAND flash
Operating System	RutOS (Based on OpenWRT)
Network Protocols	TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)
GNSS Technologies	GPS, GLONASS, BeiDou, Galileo and QZSS
Ports	1 x Digital Input, 0 - 6 V detected as low level, 8 - 50 V detected as high level 1 x Digital Output, Open Collector Input, Maximum Output 50 V, 300 mA
Power	DC connector 4 DC industrial pins 9~50V (power supply 18W included)
Material	Aluminium housing
Temp. operation	-40º C ~ +75º C
Operating humidity	10 ~ 90 % (non-condensing)
Optional mounting kits	Rail Mounting Kit, Compact Rail Mounting Kit, Surface Mounting Kit
Degree of protection	IP30
Installation	DIN rail
Dimensions	132 × 95 × 44,2 mm
Weight	515 g
