Teltonika Router 4G Industrial - 2 Ethernet porte RJ45 Fast Ethernet - 4G (LTE) Cat 4 til 150Mbps - 1 x 6-pin RS232/RS485 - Wi-Fi 802.11b/g/n 2.4GHz - Aluminiumskabinet
SKU: TK-RUT206
2.100.00 kr
Ekskl. moms
Levering 1-4 dage
På lager
Teltonika Router 4G Industrial - 2 Ethernet porte RJ45 Fast Ethernet - 4G (LTE) Cat 4 til 150Mbps - 1 x 6-pin RS232/RS485 - Wi-Fi 802.11b/g/n 2.4GHz - Aluminiumskabinet
Kategori
Routers 3G/4G/5G
Mærke
TELTONIKA

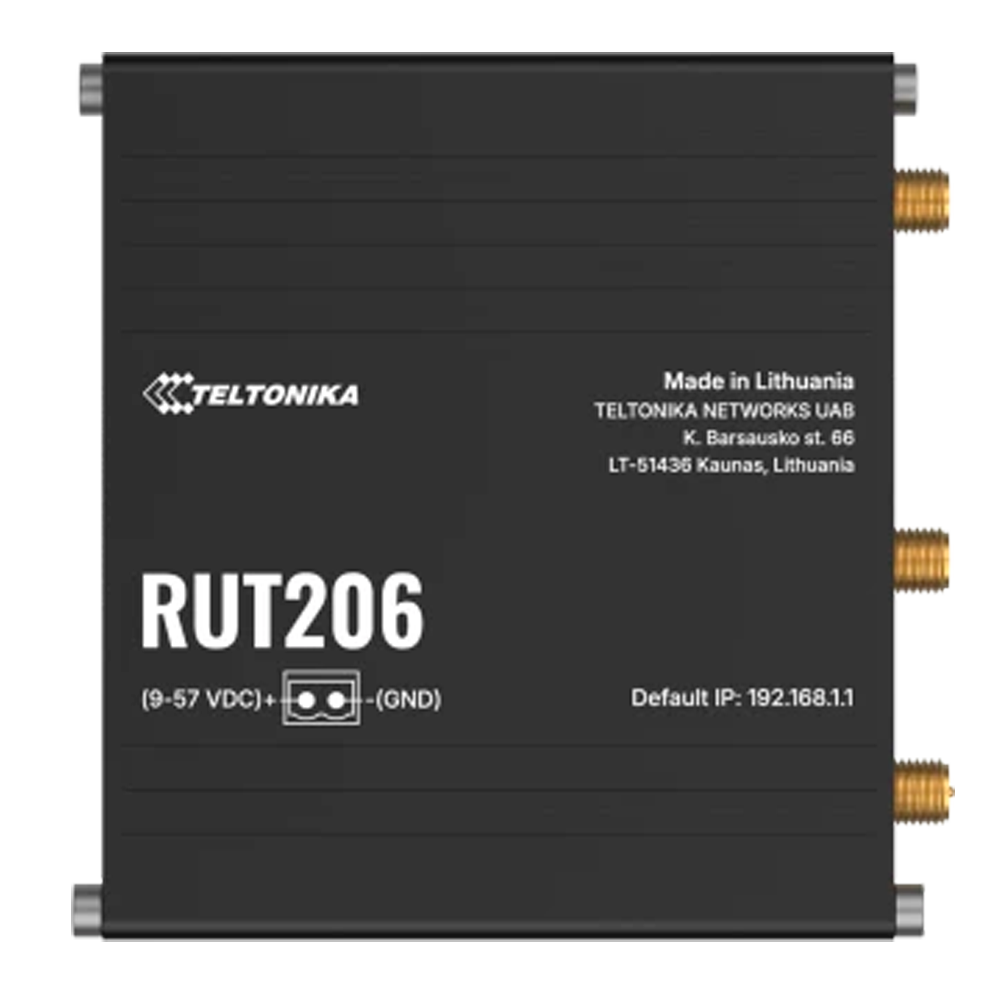

- RUT206 er en kompakt industrirouter, der understøtter RS232 og RS485 serielle interfaces sammen med aktive og passive PoE-input. Dens robuste design, 2-pin strømindgang og udvidelig datalagring via microSD-slot gør den til et ideelt valg til forskellige IoT og M2M-applikationer. Denne 4G Cat 4 router inkluderer RutOS open source software og understøtter centrale industrielle protokoller som Modbus, DNP3 og DLMS. Tilbyder fremragende fjernstyringsegenskaber (RMS) og VPN-funktionalitet.
| Brand | Teltonika |
| Device | Industrial 4G Router |
| Ethernet | 2 Ethernet ports RJ45 10/100Mbps (1 WAN + 1 LAN) |
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
| RAM | 128MB DDR2 |
| Flash | 32MB |
| External storage | Micro SD ( up to 2TB ) |
| Wi-Fi features | 802.11b/g/n 2.4GHz (AP Mode and STA Mode) |
| Type of 4G | Cat 4 to 150Mbps |
| Maximum Number of Wi-Fi Clients | 50 (Depending on traffic generated) |
| Operating System | RutOS (Based on OpenWRT) |
| Network Protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, PPPoE, DHCP, Telnet |
| VPN Protocols | OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP,Wireguard, Zerotier |
| Monitoring and Management | WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS |
| Cloud Solutions | RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx |
| Services | DDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP, Traffic Logging |
| RS232/RS485 | 1 x 6-pin terminal block |
| Power | DC connector 2 Industrial pins 9~57V Power Supply Included Standard Poe 802.3af (12.94 W) and Passive Poe (16 - 57 VDC) on Lan port |
| Material | Aluminium |
| Temp. operation | -40º C ~ +75º C |
| Operating humidity | 10 ~ 90 % (non-condensing) |
| Optional Mounting Kit (Not included) | Rail Mounting Kit, Compact Rail Mounting Kit, Surface Mounting Kit |
| Dimensions | 25 (Al) x 83 (W) × 83 (D) mm |
| Weight | 132 g |
- Industrial 4G Router
- AC power supply 9W
- Ethernet Cable 1,5m
- User instructions
- 2x LTE Antennas
- 1x Wi-Fi Antenna
- 1x SIM Adapter
