TELTONIKA

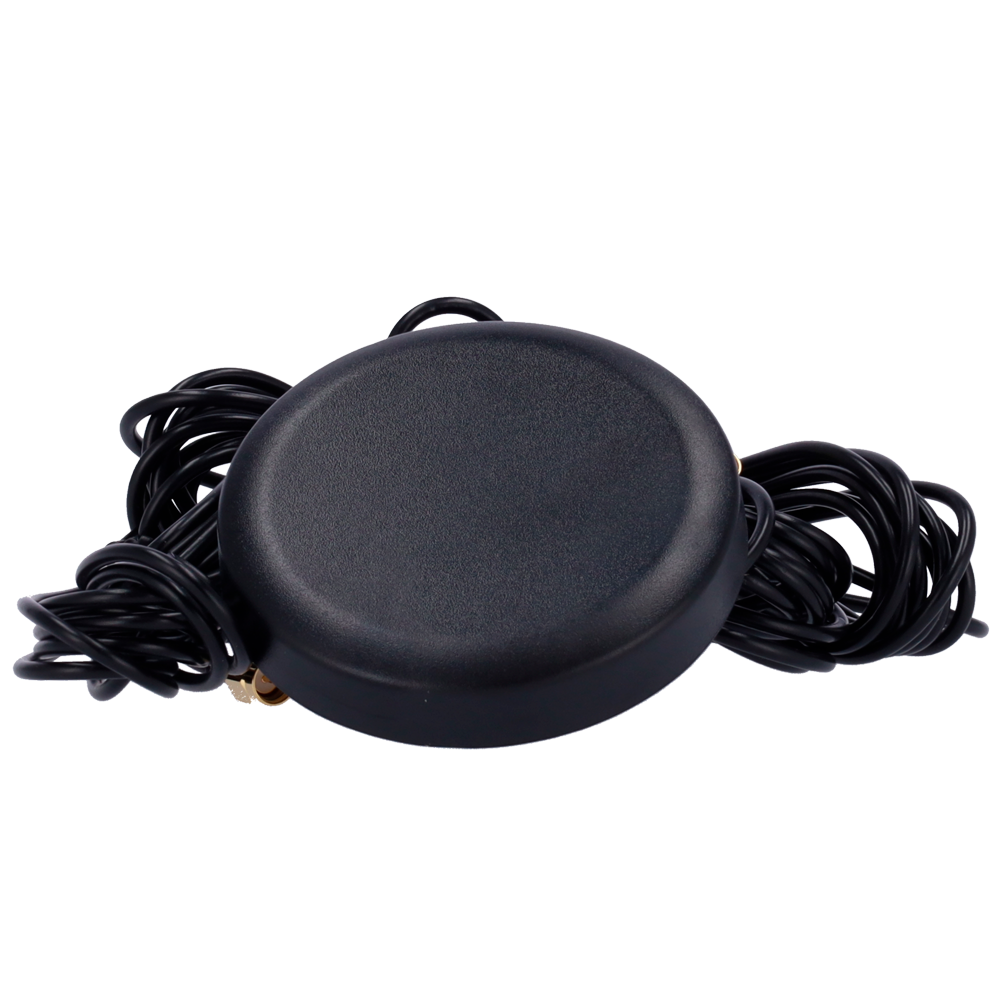

Teltonika Antenne - LTE/Wi-Fi/GNSS Combo - Køretøj tagmontering - SMA connectorer - Udendørs certifikat IP67 - Kabler RG174 3 meter lange
SKU: TK-PR1KCS28
393.75 kr
Ekskl. moms
Levering 1-4 dage
På lager
Teltonika Antenne - LTE/Wi-Fi/GNSS Combo - Køretøj tagmontering - SMA connectorer - Udendørs certifikat IP67 - Kabler RG174 3 meter lange
Kategori
Accessories
Mærke
TELTONIKA
- Teltonika • LTE GNSS Wi-Fi Combo Antenne til køretøj tagtop • LTE Frekvens 617-960/1710-2690 MHz Connector 1x SMA Male • GNSS antenne 1575-1610 MHz 1x SMA Male Connector • Wi-Fi antenne 2350-2500 MHz Connector 1x RP SMA Male • Udendørs certifikat IP67 • 3x Kabler RG174 3 meter lange
| Mounting | Ceiling mounting (screwed) |
| LTE Antennas | Frequency Range: 617-960/1710-2690 MHz Polarization: Linear Gain: 3.5dBi V.S.W.R < 1.5 Impedance: 50 ohms 1x SMA Male connectors |
| Wi-Fi antennas | Frequency: 2350-2500 MHz Polarization: Linear Gain: 2.5 dBi V.S.W.R < 1.5 Impedance: 50 ohms 1x RP-SMA Male Connectors |
| GNSS Antenna | Frequency: 1575-1610 MHz Polarization: RHCP Impedance: 50 ohms LNA gain: 28±2 dB Noise LNA: < 1.5 dB 2.7-5 ±0.5Vdc Voltage Current consumption < 15mA LNA V.S.W.R < 1.5 1x SMA Male connector |
| Cables | 3x RG174, 3 meters |
| Dimensions | 110x55mm |
| Weight | < 225g |
