TELTONIKA

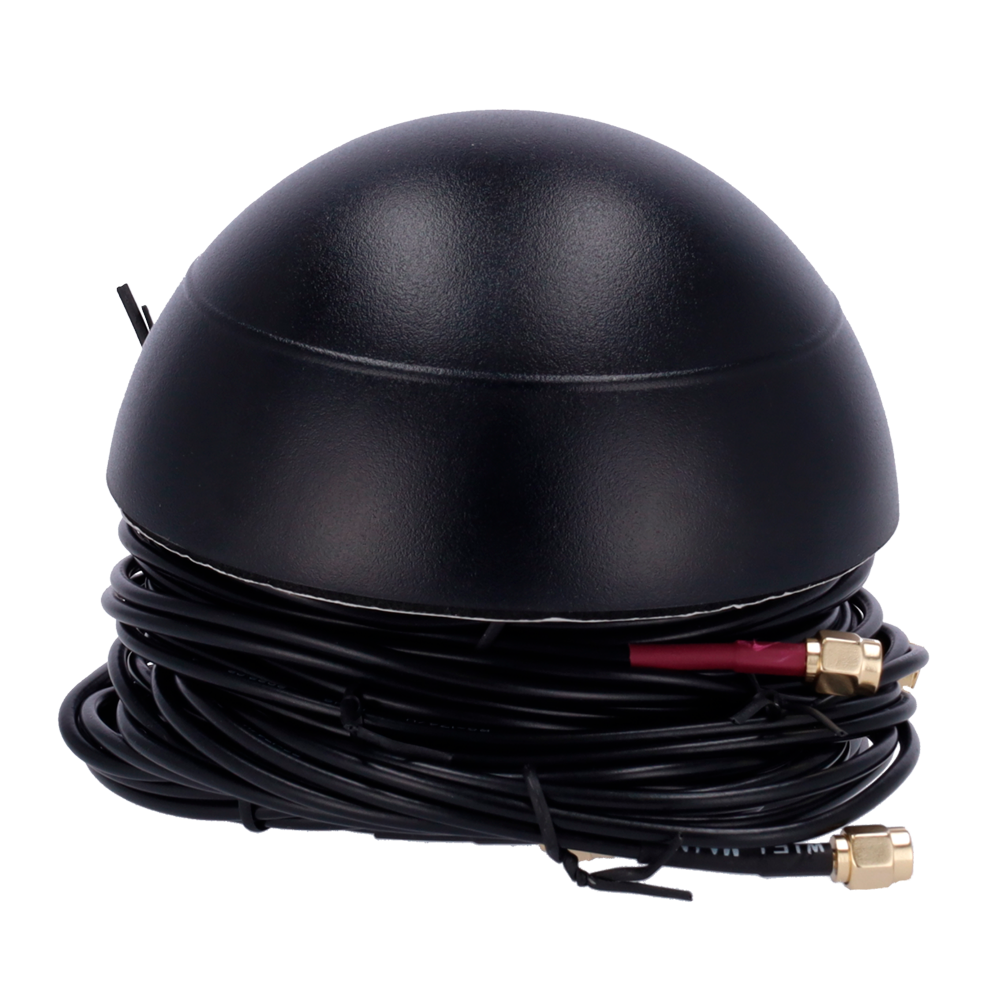

Teltonika Antenne - LTE/Wi-Fi/GNSS Combo - Køretøj tagmontering - SMA connectorer - Udendørs certifikat IP65 - Kabler RG174 3 meter lange
SKU: TK-PR1KCO28
656.25 kr
Ekskl. moms
Levering 1-4 dage
På lager
Teltonika Antenne - LTE/Wi-Fi/GNSS Combo - Køretøj tagmontering - SMA connectorer - Udendørs certifikat IP65 - Kabler RG174 3 meter lange
Kategori
Accessories
Mærke
TELTONIKA
- Teltonika • LTE GNSS Wi-Fi Combo Antenne til køretøj tagtop • LTE Frekvens 698-960/1710-2690 MHz Connector 2x SMA Male • GNSS antenne 1575.42-1610 MHz 1x SMA Male Connector • Wi-Fi antenne 2400-2483.5/4900-5825 MHz Connector 2x RP SMA Male • Udendørs certifikat IP65 • 5x Kabler RG174 3 meter lange
| Mounting | Ceiling mounting (screwed) |
| LTE Antennas | Frequency Range: 698-960/1710-2690 MHz Polarization: Linear Gain: 3dBi V.S.W.R < 3.0 Impedance: 50 ohms 2x SMA Male connectors |
| Wi-Fi antennas | Frequency: 2400-2483.5/4900-5825 MHz Polarization: Linear Gain: 2dBi V.S.W.R < 1.5 Impedance: 50 ohms 2x RP-SMA Male Connectors |
| GNSS Antenna | Frequency: 1575.42-1610 MHz Polarization: RHCP Impedance: 50 ohms LNA gain: 28±2 dB Noise LNA: < 1.5 dB Voltage 3-5 VDC Current consumption < 15mA LNA V.S.W.R < 2.0 1x SMA Male connector |
| Cables | 5x RG174, 3 meters |
| Dimensions | 110x55mm |
| Weight | < 550g |
