TELTONIKA

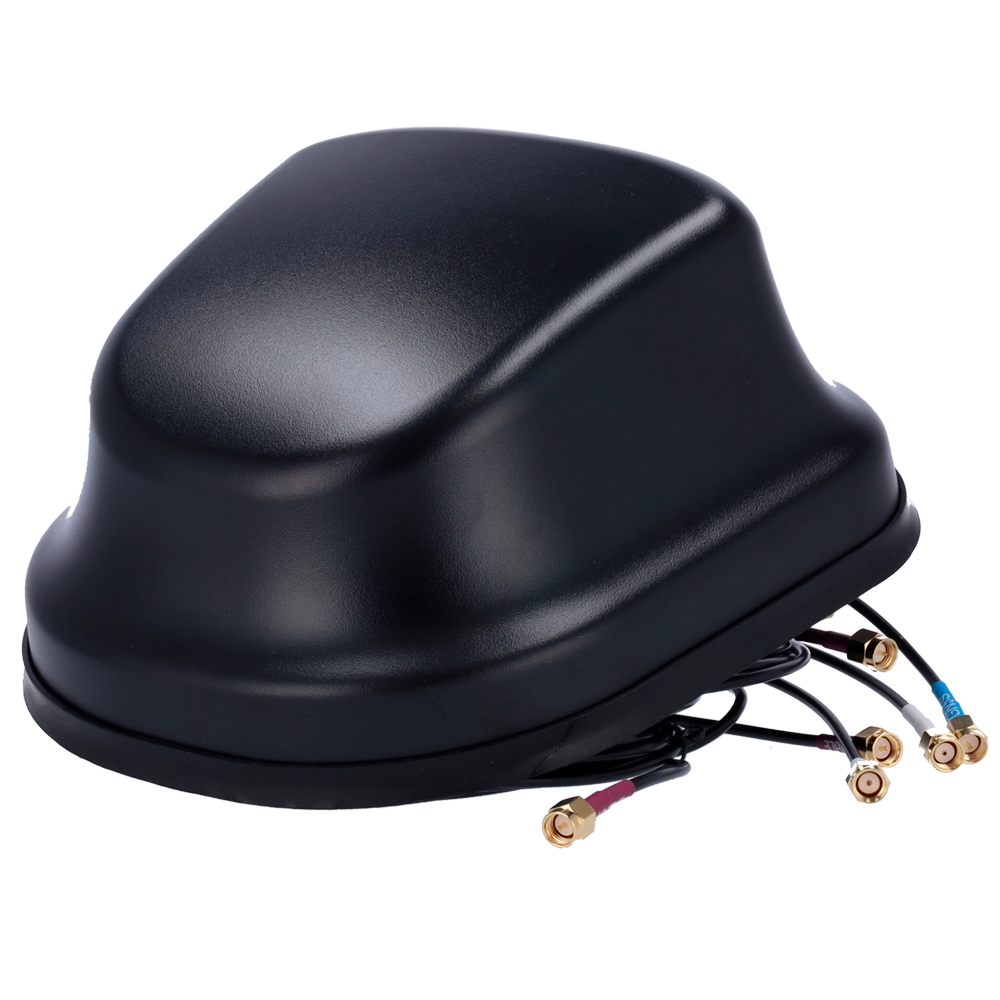

Teltonika Antenne - 5G Combo LTE/Wi-Fi/GNSS - Køretøjstagmontering - SMA stik - Udendørs certificering IP67 - Kabler LMR100 3 meter lange
SKU: TK-PR1KC640
1.706.25 kr
Ekskl. moms
Levering 1-4 dage
På lager
Teltonika Antenne - 5G Combo LTE/Wi-Fi/GNSS - Køretøjstagmontering - SMA stik - Udendørs certificering IP67 - Kabler LMR100 3 meter lange
Kategori
Accessories
Mærke
TELTONIKA
- • Teltonika antenne 5G LTE GNSS Wi-Fi combo til køretøjstag
- • LTE frekvens 617-960/1710-2690/2900-4200 MHz med 4x SMA Male stik
- • GNSS antenne 1164-1300/1559-1610 MHz med 1x SMA Male stik
- • Wi-Fi antenne 2400-2483.5/4900-5925 MHz med 2x RP SMA Male stik
- • Udendørs certificering IP67
- • 7x LMR100 kabler 3 meter lange
- • Kompatible routere TK-RUTX50, TK-TRB500
| Mounting | Ceiling mounting (screwed) |
| LTE Antennas | Frequency Range: 617-960/1710-2690/2900-4200 MHz Polarization: Linear Gain: 4dBi V.S.W.R < 3.0 Impedance: 50 ohms 4x SMA Male connectors |
| Wi-Fi antennas | Frequency: 2400-2483.5/4900-5925 MHz Polarization: Linear Gain: 4dBi V.S.W.R < 2.5 Impedance: 50 ohms 2x RP-SMA Male Connectors |
| GNSS Antenna | Frequency: 1164-1300/1559-1610 MHz Polarization: RHCP Impedance: 50 ohms LNA gain: 40±2 dB Voltage 3-12 VDC Current consumption < 60mA LNA V.S.W.R < 2.0 1x SMA Male connector |
| Cables | 7x LMR100, 3 meters |
| Dimensions | 189 x 182 x 85 mm |
| Weight | 960 ± 30 g |
- Antenna 5G Combo
