TELTONIKA

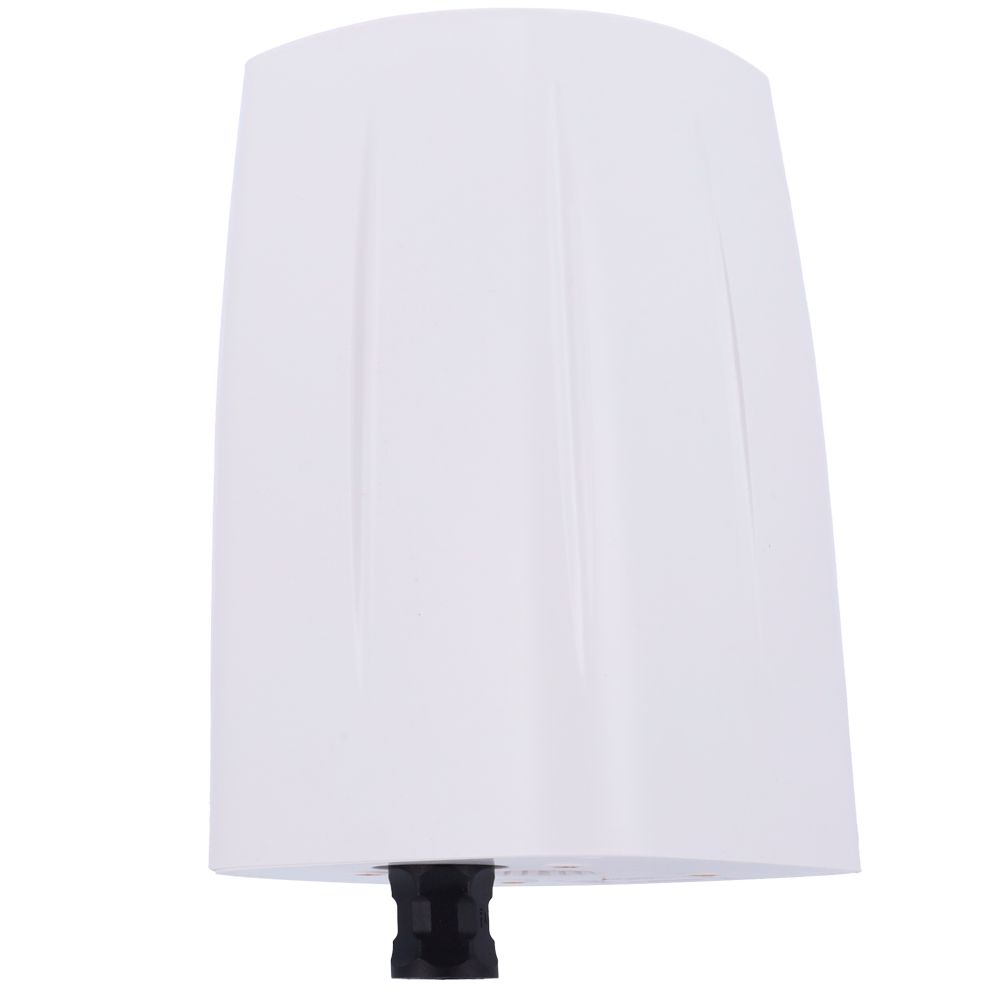

Teltonika Industriel Udendørsantenne - 4G LTE/Wi-Fi/GPS/BLUETOOTH Combo - Stang/mast montering - SMA stik - Udendørs certificering IP67 - Antenne+Hus til montering
SKU: TK-PR1IC970
1.856.25 kr
Ekskl. moms
Levering 1-4 dage
På lager
Teltonika Industriel Udendørsantenne - 4G LTE/Wi-Fi/GPS/BLUETOOTH Combo - Stang/mast montering - SMA stik - Udendørs certificering IP67 - Antenne+Hus til montering
Kategori
Accessories
Mærke
TELTONIKA
- • Teltonika industriel antenne 4G LTE Wi-Fi GPS BLUETOOTH combo til udendørs stang
- • LTE frekvens 617-960, 1700-2700, 3300-4300 MHz med 2x SMA Male stik
- • Wi-Fi antenne 2400-2500/4700-6000 MHz med 1x RP SMA Male stik
- • Udendørs certificering IP67
- • 5x RG316 1x RG174 kabler
- • Kompatible routere TK-RUTX11 og TK-RUTM11
| Mounting | Mast or wall mounting (bolt-on) (Screws not included) |
| LTE Antennas | Frequency Range: 617-960, 1700-2700, 3300-4300 MHz Polarization: Vertical Gain: 4 dBi (Max) V.S.W.R < 2 Impedance: 50 ohms 2x SMA Male connectors |
| Wi-Fi antennas | Frequency: 2400-2500/4700-6000 MHz Polarization: Vertical Gain: 7,5 dBi V.S.W.R < 2.0 Impedance: 50 ohms 2x RP-SMA Male Connectors |
| GNSS Antennas | Frequency Range: 1560-1610 MHz Polarization: Vertical Gain: 28 dBi (Max) V.S.W.R < 2 Impedance: 50 ohms 1x SMA Male connectors Consumption 2.5 - 6.5 mA |
| Bluetooth Antennas | Frequency Range: 2200-27000 MHz Polarization: Vertical Gain: 2 dBi (Max) V.S.W.R < 2 Impedance: 50 ohms 1x RP-SMA Male Connectors The Bluetooth antenna is not used in the router RUTM11 |
| Cables | 5x RG316 1x RG174 |
| Degree of protection | IP67 |
| Dimensions | 160 x 240 x 189 mm |
| Operating temperature | -40º C ~ +75º C |
| Weight | 1500 g |
| Power | It is necessary to power the indoor Teltonika with Passive PoE, through the LAN1 port with at least the TK-PR324EUB adapter (not included) |
| Compatibility | Compatible with TK-RUTX11 and TK-RUTM11 models |
- Antenna 4G Outdoor Combo
