THERMTEC

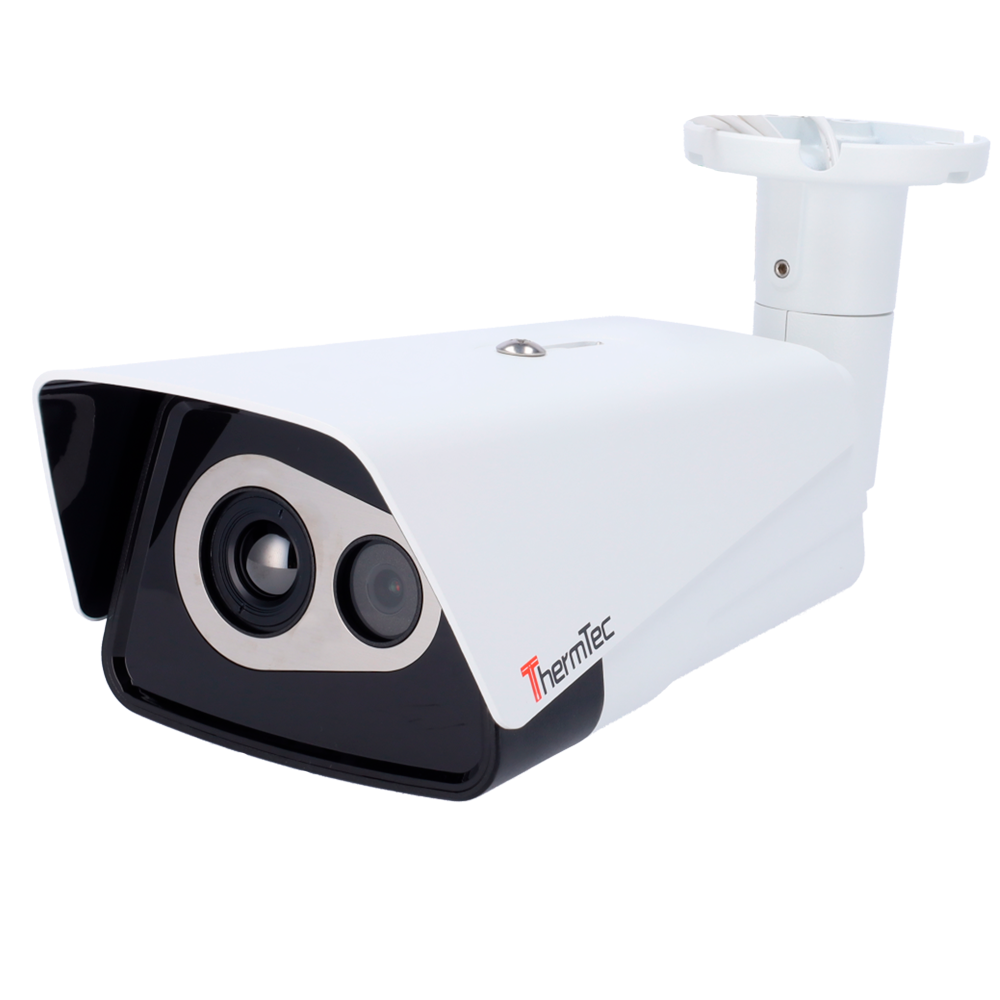

ThermTec Dual IP Thermal Camera - 640x512 VOx | 10mm Lens - Pixel pitch 12μm - Thermal sensitivity ≤35mK - Optical sensor 1/2.8" 4 Mpx
SKU: THERMTEC-HM610
3.187.50 kr
Ekskl. moms
Levering 1-4 dage
På lager
ThermTec Dual IP Thermal Camera - 640x512 VOx | 10mm Lens - Pixel pitch 12μm - Thermal sensitivity ≤35mK - Optical sensor 1/2.8" 4 Mpx
Kategori
Perimeter protection
Mærke
THERMTEC
- ThermTec Dual Thermal IP kamera med termisk sensor 640x512 VOx og optisk sensor 1/2.8" Progressive Scan CMOS 4Mpx. Objektiv 10mm (termisk) / 8mm (optisk), rækkevidde IR30m, termisk følsomhed ≤35mK (0.05ºC), pixel pitch 12μm. Understøtter H.265/H.264, RJ-45 10/100M BaseT, PoE+ IEEE802.3af med alarmer. WEB, CMS, smartphone og NVR interface. ONVIF kompatibel og vejrbestandig.
| Brand | ThermTec |
| Thermal sensor | 640x512 Vanadium oxide |
| Thermal focus | Motorized |
| Optical sensor | 1/2.8” Progressive Scan CMOS 4 Megapixel |
| Main Stream rate | Term: 1280x720 / 768x576 / 640x480 / 384x288 (25fps) Opt: 2592x1536 / 1920x1080 / 1280x720 (25fps) |
| Extra Stream rate | Term: 768x576 / 640x480 / 352x288 / 384x288 (25fps) Opt: 1280x720 / 768x576 / 640x480 / 384x288 (25fps) |
| Image Fusion | Supported |
| Compression | H.265 / H.264 |
| Image Enhancement | DWDR, 3DNR, BLC, HLC AGC, ROI, Privacy Mask |
| Lens | 10mm (Term) / 8mm (Opt) |
| Thermal viewing angle | 43,3°×34,6° (Therm) |
| Thermal sensitivity | ≤35mK (0.05 º C) |
| Thermal measurement range | -20~150ºC / ±8ºC |
| Spectral range | 8~14μm |
| Pitch Detector | 12μm |
| Audio | Does not have |
| Alarms | 1 IN / 1 OUT |
| Internal memory | EMMC up to 16GB |
| Network interface | Ethernet 10/100M BaseT |
| Remote access | WEB Interface |
| Interoperability | ONVIF Profile S/T |
| Power | 12VDC, max.15W / PoE (802.3af) |
| Temp. operation | -20ºC~+60ºC |
| Degree of protection | Waterproof IP66, TVS |
| Dimensions | 356 x 145 x 162 mm |
| Weight | ≤2200 g. |
- ThermTec Dual IP Thermal Camera
- Installation material
- Junction box
