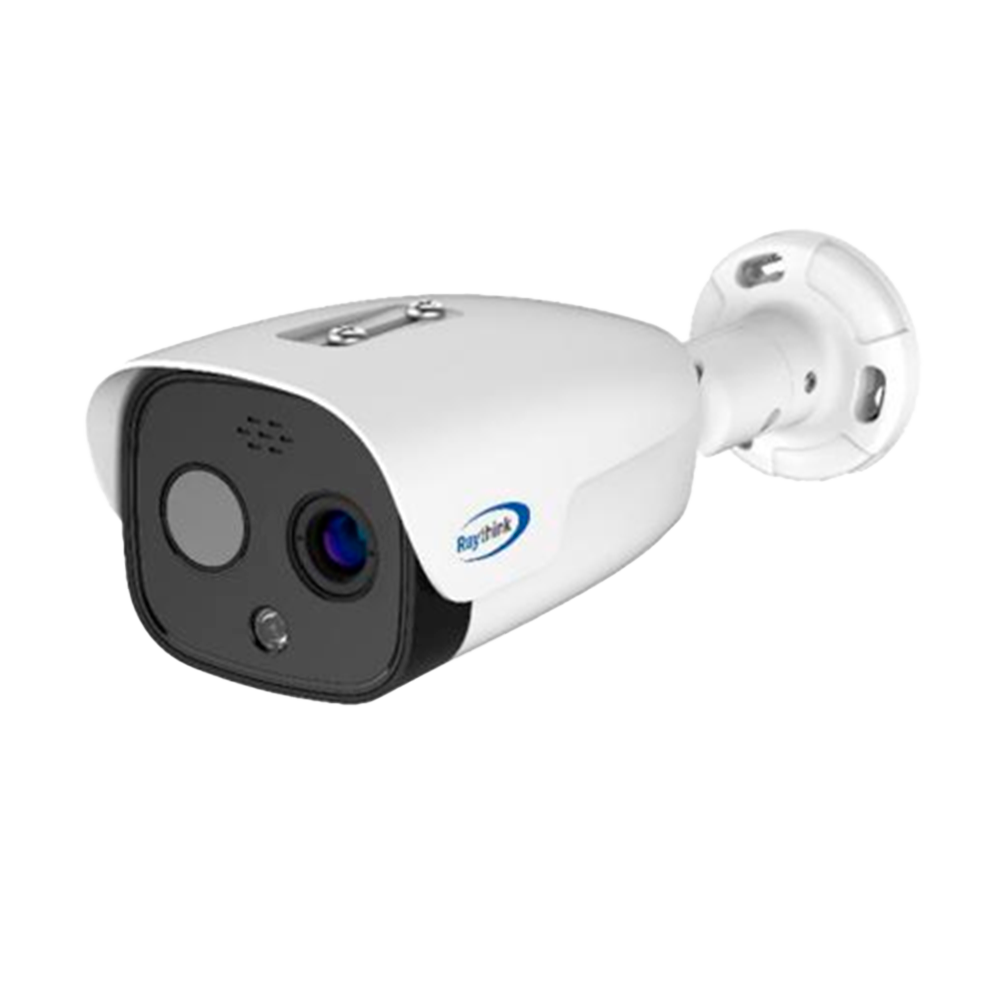

Raythink IP termisk kamera FC4 serie - VOx FPA termisk sensor 640x512 12μm | 19mm Linse - Synlig 1/2.8" CMOS sensor 5Mpx Linse 6mm - Termisk følsomhed ≤40mK - Temperaturmåleområde -20~550ºC/±2ºC eller ±2% - Forebyggende brand- og indtrængningsdetektion

SKU: RP-FC465T-019

2.814.94 kr

Ekskl. moms

Levering 1-4 dage

På lager

Brand	Raythink
Range	FC4
Thermal sensor	VOx FPA non-refrigerated
Thermal sensor resolution	640 x 512
Pixel pitch	12μm
Thermal lens	19mm
Thermal sensitivity	≤40mK
Thermal measurement range	-20~550ºC / ±2ºC or ±2%
Spectral range	LWIR 8~14μm
Thermal viewing angle	22° (H) x 18° (V)
Visible sensor	1/2.8" Progressive Scan CMOS
Visible sensor resolution	2560 x 1920 (5Mpx)
Visible lens	6mm
Visible viewing angle	46° (H) x 35° (V)
Infrared illuminator	40m. maximum
Bi-spectrum vision parameters	Fusion / PiP
Main Stream rate	Visible: 25fps (2560×1920, 2560×1440,1920×1080,1280×720) Thermal: 25fps(1280×1024, 1024×768)
Sub Stream Rate	Visible: 25fps (704×576, 352×288) Thermal: 25fps (640x512, 352x288)
Compression	H.265 / H.264
DRI	Human: 792m (D), 198m (R), 99m (I) Vehicle: 2428m (D), 607m (R), 303m (I)
Smart Analysis Ranges	Human: 148m Vehicle: 455m Temperature Measurement (object 2x2m)): 528m Temperature Measurement (object 1x1m)): 264m Fire detection (object 2x2m): 2111m Fire detection (object 1x1m): 1056m
VCA	Line crossover, intrusion, temperature measurement and fire detection
Temperature rules	Full window, point, line and region, multiple rules simultaneously
Alarms	2 inputs / 2 relay
Audio	1 input / 1 output
Audio compression formats	G.711a/G.711u/AAC/PCM
Internal memory	MicroSD card slot up to 256 GB
Network interface	Ethernet 10/100 BaseT
Communication	1 x RS-485 protocol Pelco
Remote access	Web Browser, PC VMS Software
Interoperability	ONVIF, API, SDK
Power	DC 12V, 8W max. PoE IEEE802.3af
Temp. operation	-40ºC~+70ºC, <95% RH
Grado de protección	Impermeable IP66
Dimensiones	319.5mm ×121.5mm × 103.6mm
Peso	1.800g
