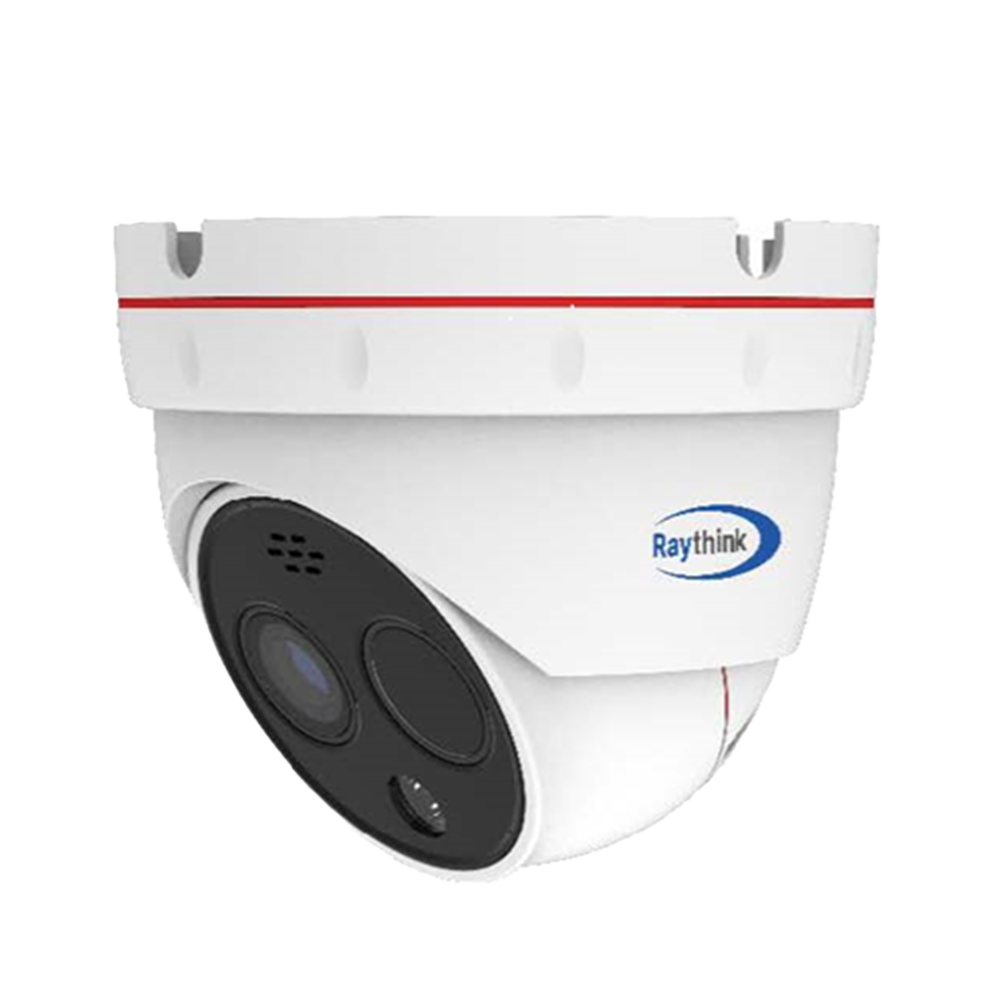

Raythink IP termisk kamera FC1 serie - VOx FPA termisk sensor 256x192 12μm | 3,2mm objektiv - Synlig 1/2.8" CMOS sensor 5Mpx 4mm objektiv - Termisk følsomhed ≤40mK - Temperaturmåling -20ºC~550º/±2ºC eller ±2% - Forebyggende brand- og indtrængningsdetektion

SKU: RP-FC125T-3D2

5.212.50 kr

Ekskl. moms

Levering 1-4 dage

På lager

Brand	Raythink
Range	FC1
Thermal sensor	VOx FPA non-refrigerated
Thermal sensor resolution	256 x 192
Pixel pitch	12μm
Thermal lens	3.2mm
Thermal sensitivity	≤40mK
Thermal measurement range	-20ºC~550ºC / ±2ºC or ±2%
Spectral range	LWIR 8~14μm
Thermal viewing angle	56° (H) x 42° (V)
Visible sensor	1/2.7" Progressive Scan CMOS
Visible sensor resolution	2560 x 1920 (5Mpx)
Visible lens	4mm
Visible viewing angle	84° (H) x 61° (V)
Infrared illuminator	30m. maximum
Bi-spectrum vision parameters	Fusion
Main Stream rate	Visible: 25fps (2592×1944, 2560×1440, 1920×1080) Thermal: 25fps (1280×960, 1024×768)
Sub Stream Rate	Visible: 25fps (704×576, 640×480, 352×288) Thermal: 25fps (640×480, 256×192)
Compression	H.265 / H.264
DRI	Human: 133m (D), 33m (R), 17m (I) Vehicle: 409m (D), 102m (R), 51m (I)
Smart Analysis Ranges	Human: 25m Vehicle: 77m Temperature Measurement (object 2x2m)): 89m Temperature Measurement (object 1x1m)): 44m Fire detection (object 2x2m): 356m Fire detection (object 1x1m): 178m
VCA	Line crossover, intrusion, temperature measurement and fire detection
Temperature rules	Full window, point, line and region, multiple rules simultaneously
Alarms	1 input / 1 relay
Audio	1 input / 1 output
Audio compression formats	G.711a/G.711u/AAC/PCM
Internal memory	MicroSD card slot up to 256 GB
Network interface	Ethernet 10/100 BaseT
Communication	1 x RS-485 protocol Pelco
Remote access	Web Browser, PC VMS Software
Interoperability	ONVIF, API, SDK
Power	DC 12V, 10W max. PoE IEEE802.3af
Temp. operation	-40ºC~+70ºC, <95% RH
Grado de protección	Impermeable IP66
Dimensiones	Φ129mm × 96mm
Peso	800g
