QUECLINK
4G LTE Cat 4 - Pålidelig dual SIM forbindelse - IEEE 802.11 a/b/g/n 2,4GHz - Sikker VPN forbindelse - 2 ethernet interfaces (1 WAN/LAN, 1LAN) - Seriel port RS485
SKU: QL-WR100LEU-485
1.312.50 kr
Ekskl. moms
Levering 1-4 dage
På lager
4G LTE Cat 4 - Pålidelig dual SIM forbindelse - IEEE 802.11 a/b/g/n 2,4GHz - Sikker VPN forbindelse - 2 ethernet interfaces (1 WAN/LAN, 1LAN) - Seriel port RS485
Kategori
Routers 3G/4G/5G
Mærke
QUECLINK

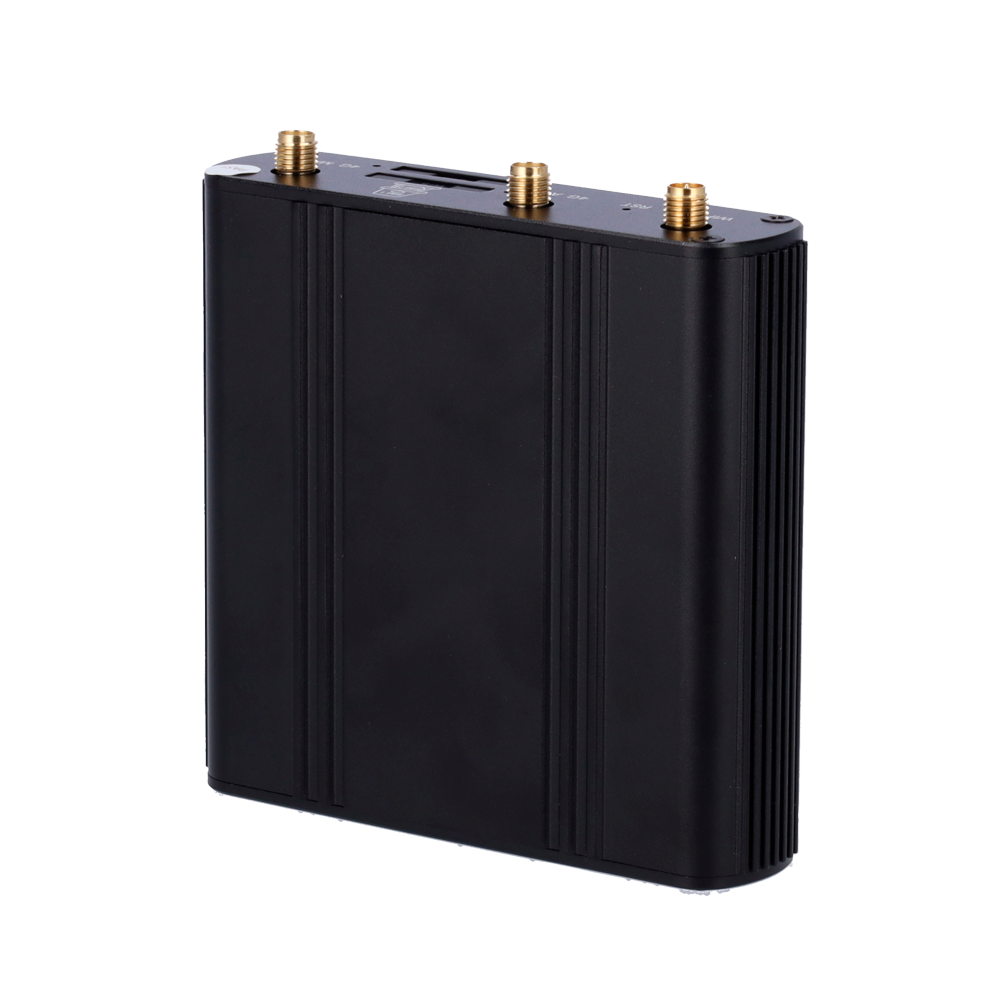

- WR100LEU er Queclinks første industrielle CPE. Med højhastigheds cellulær forbindelse op til 150 Mbps (LTE CAT4) og industrielt serielt port interface giver WR100LEU en platform til dataintensive IoT applikationer som industriel automatisering, smarte byer, transport og detailhandel. Med Queclinks unikke teknologi kan produktet installeres i køretøjer og bruges sammen med vores eksisterende sporingsudstyr.
| Brand | Queclink |
| Model | WR100LEU |
| Installation | Indoor |
| LTE connectivity CAT4 | WCDMA GSM |
| Operating band | LTE Cat 4: LTE FDD: B1/B3/B5/B7/B8/B28 LTE TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM/EDGE :B3/B8 |
| Data transmission | LTE-FDD: Max 150Mbps(DL)/Max 50Mbps(UL) LTE-TDD: Max 130Mbps(DL)/Max 30Mbps(UL) HSPA+:Max 21Mbps(DL) HSUPA: Max 5.76Mbps (UL) WCDMA: Max 384Kbps (DL)/Max 384Kbps (UL) EDGE: Max 236.8Kbps (DL)/Max 236.8Kbps (UL) GPRS: Max 85.6Kbps (DL)/Max 85.6Kbps (UL) |
| Wifi | IEEE 802.11 a/b/g/n, 2.4 GHz Up to 144Mbps for 20MHz and 300Mbps for 40MHz |
| Ethernet | 1 x FE (WAN/LAN) 1 x FE (LAN) |
| Network Protocols | TCP/ UDP/ PPP/ NTP/ NITZ/ FTP/ FTPS/ HTTP/ HTTPS/ PING/ CMUX /FILE/ MQTT/ MMS/ SMTP/ SSL/ |
| RAM | 128MB,DDR2 |
| FLASH storage | 16MB,SPI Flash |
| Ethernet ports | 1 WAN(10/100Mbps) 1 LAN(10/100Mbps) |
| Serial port | 1 serial port RS485 Supports RS232 in the QL-WR100LEU reference |
| SIM slot | 2 |
| Telephone antennas | 2x SMA |
| Wifi antenna | 1x RP-SMA |
| Power supply connector | 4 pins |
| LED indicators | Power supply, GSM status, coverage, wifi |
| Reset button | 1 |
| Dimensions | 90mm x 90mm x 24mm |
| Weight | 200g |
| Working voltage | 8 - 32V DC |
| Working temperature | -30℃ a + 70℃ -40℃ a + 80℃ for storage |
| Firewall | IP/MAC filtering, Domain filtering, NAT, etc. |
| Attack prevention | DDOS, DMZ, port scanning |
| Wifi Security | WPA-PSK, WPA2-PSK, AES etc. |
| Access control | Scan data connection. MAC address filtering. |
| Open VPN | Client and server support |
| IPsec | Supported |
| GRE | Supported |
| PPTP, L2TP | Client and server support |
| Operating system | OpenWrt based on linux |
| Alternative network link | Mobile, wired, WiFi, main and backup link configured as required, automatic load balancing |
| Network functions | NAT, static/dynamic routing(Rip Protocol), Firewall |
| Connection monitoring | Ping restart, scheduled restart |
| Remote administration | WEB UI, SSH, SMS, FOTA |
