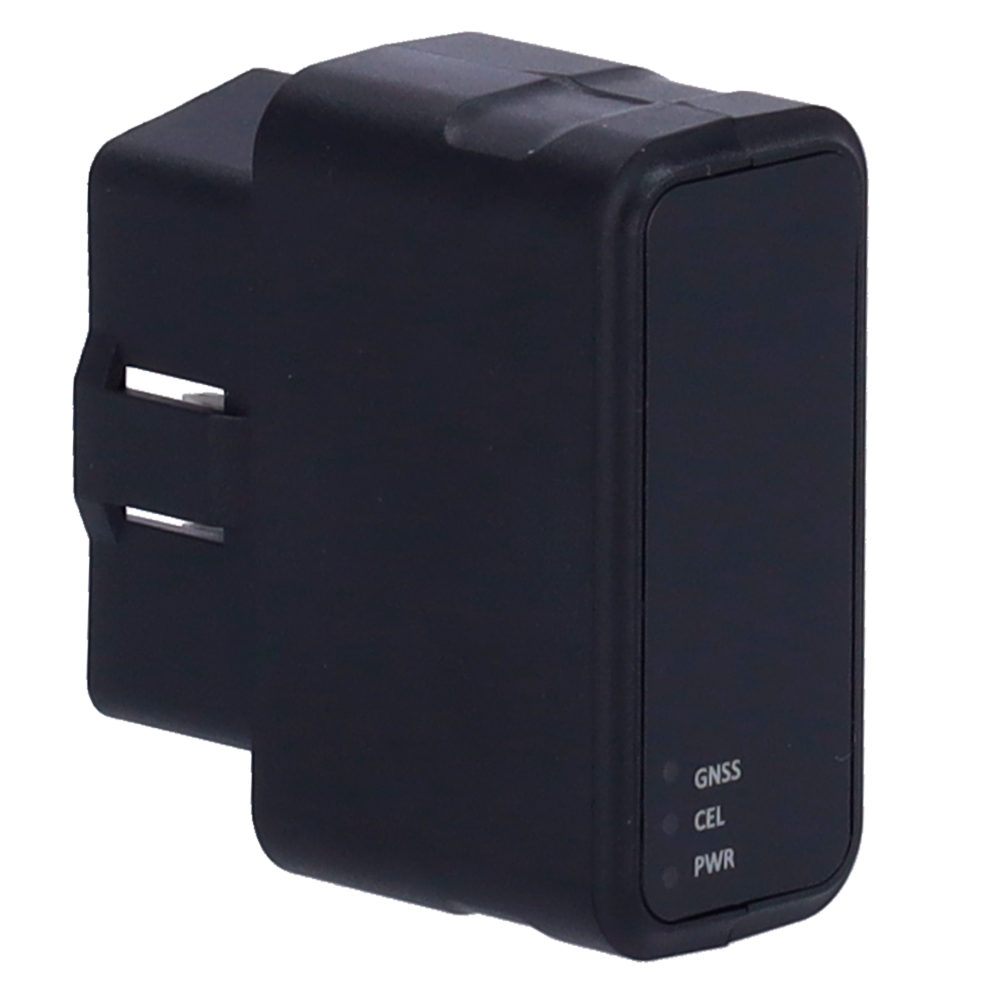

- GV500CG er en kompakt, LTE-integreret 4G OBD Cat1 tracker. Minimal størrelse tillader nem installation i alle biler. Produktet har også chaufføradfærdsovervågning, kollisionsdetektion, kilometerlogning samt BLE forbindelse, som er ideelt til forsikringsapplikationer og connected car services. • Mini OBD LTE locator Cat 1 • Kompakt størrelse • BLE support 5.2 • Ideel til køretøjsleasing
| Brand | Queclink |
| Model | GV500CG |
| Installation | OBD port |
| Operating band | Cat 1: LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 |
| LTE data transmission | LTE-FDD: Max 10Mbps (DL)/Max 5Mbps (UL) |
| Work frequency | GSM850/GSM900/GSM1800/GSM1900 |
| GSM data transmission | GPRS:(DL)85.6Kbps/(UL)85.6Kbps EDGE:(DL)236.8Kbps/(UL)236.8Kbps |
| GNSS type | All-in-one GNSS receiver |
| Sensitivity | Autonomous: -147 dBm Hot start: -163 dBm Reconnection: -160 dBm On the move: -165 dBm |
| Positioning accuracy (CEP) | Autonomous: < 2.0m |
| TTFF (open field) | Cold start: 24s approx Intermediate start: 24s approx Hot start: 1s approx |
| Dimensions | 50(LA) x 46(AN) x 23(AL) |
| Weight | 41g |
| Battery | Lithium polymer, 3,7 V, 60 mAh |
| Working voltage | 8V ~ 32V DC |
| Working temperature | -20 ℃ ~ +60 ℃ -40 ℃ ~ +80 ℃ (storage) |
| Message buffer | Up to 10000 messages |
| BLE | BLE support 5.2 |
| Cellular antenna | Internal only |
| GPS Antenna | Internal only |
| LED indicators | CELL, GNSS, PWR |
| Micro USB | Port for configuration and FW update |
| OBD | For food only |
| Transmission protocols | TCP, UDP, SMS |
| Programmable reports | Reports position and status based on preset time intervals, distance, mileage, or a combination of these settings. |
| Geo-fence | Geo-fence alarm, parking, supports up to 20 regions |
| Battery report | Low battery notification |
| Ignition report | Notifies when the device is turned on/off |
| Trawl alarm | Notifies when the vehicle is towed while the power is off |
| Inhibition detection | Interference detection based alerting |
| Virtual boot detection | Based on voltage and accelerometer |
| Driver monitoring | Monitors aggressive behavior, including hard braking, acceleration, etc... |
| Collision detection | Gather information for accident reconstruction and analysis |
| Motion Detection | Accelerometer-based motion alarm with 3 internal axes |
| MQTT | Data report to MQTT server |
| TLS | Supports encryption TLS1.2 |
- Device only
