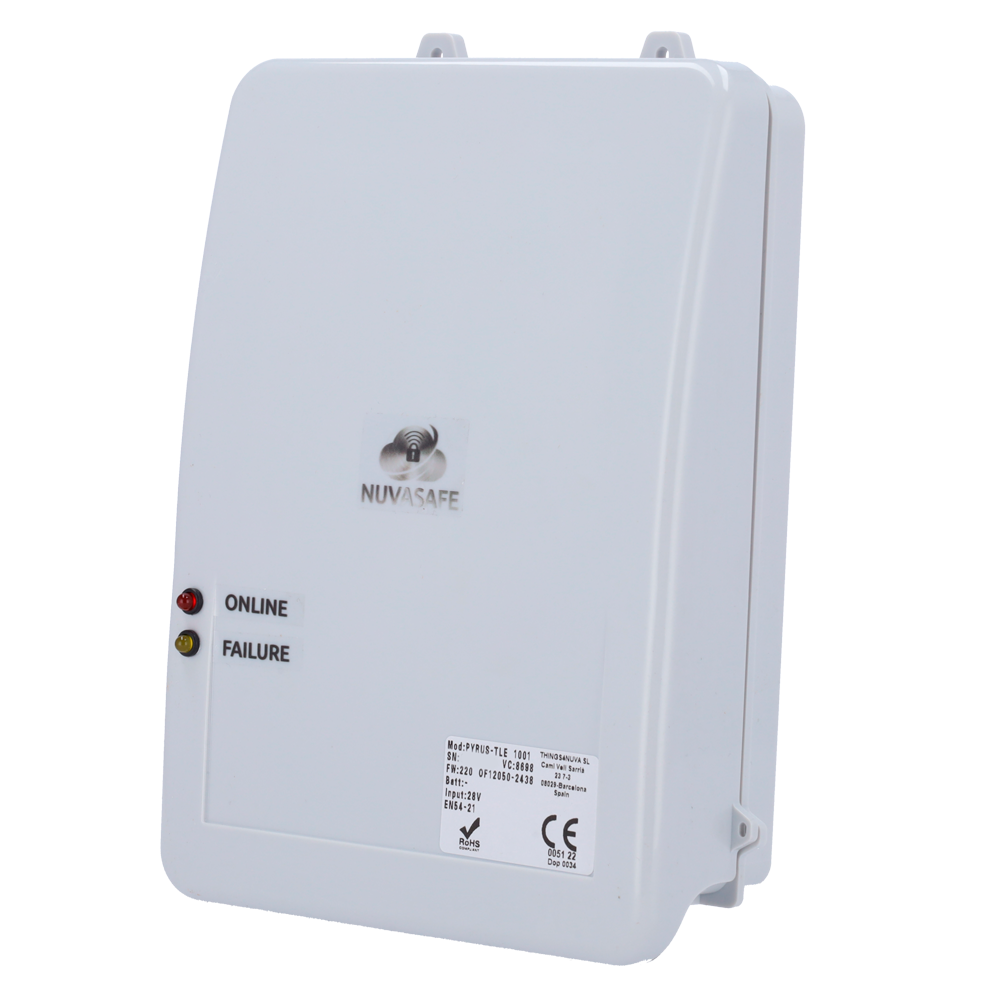

EN54-21 Certificeret alarmtransmitter - ETHERNET, GPRS/NBIOT/LTE-CAT-M1 + LORA - Kommunikation med CRA/CRI - 3 indgange (NO, NC, RFL) og 2 OC udgange - Cloud til konfiguration og overvågning - Muliggør intern/ekstern PCI montering

SKU: PYRUS-TLE

2.737.50 kr

Ekskl. moms

Levering 1-4 dage

På lager

Brand	Nuvathings
Fire certificate	EN54-21
Communicators	2G/NB-IOT/CAT-M1/ETH/LORA TTL / RS485 / RS232
LEDs	2 LEDS indicators EN54-21
Buffer	up to 126976 events with date and time
Report to alarm receiving centers	Cloud integration to all the most popular alarm CRMs from the Cloud Signal capture from associated panels, Contact ID / SIA-DC03 via RTC or SIA-DC-03 via RS485/RS232. 8 subscriber codes
Video backup communicator	Communicates via LORA to another PYRUS or CIRRUS unit which forwards to the cloud\|- Snapshot images of video analysis in jamming situations of IP networks. Bidirectional cloud-assisted via WEB interface.
Inputs	3 configurable as: NO, NC, RFL doubled. (100ms Sensitivity adjustment - 1s))
RFL Inputs	2K2 Ω Normal 820 Ω Failure 0-30VDC Voltage range
Analog measurements	Temperature, humidity, pressure probes, current transformers for consumption measurement, reading of single-phase / three-phase current meters by MODBUS RTU, Integration of any data readout via MODBUS-RTU
Outputs	2 open collector outputs up to 200mA / 0-30VDC
GPRS / LORA antenna	Gain - 2.5dBi Frequency bands - 850/900/1800/1900 Mhz LORA Frequencies - Europe 869.525MHz
Main power supply	5~30VDC - fuse of 300mA
Average consumption @ 24V	PCB - 3mA CELL - 5mA ETHERNET - 15mA LORA - 3mA Cellular transmission - 100mA
Dimensions and weight	120x75x45 mm / 200g
Working conditions	-10 to+40Cº Temperature 0-95% humidity without condensation
