MARCA BLANCA

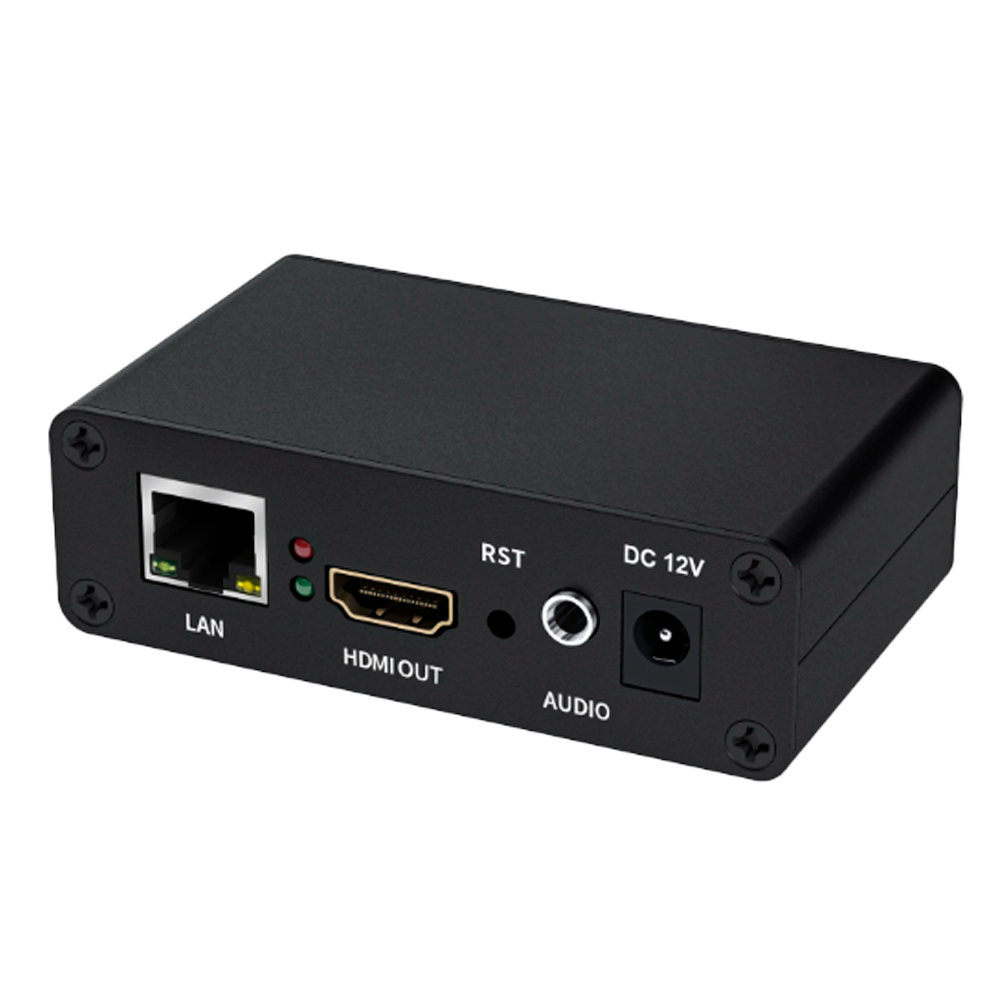

Video Decoder - Opløsning op til 1920x1080p - Encoding H.265/H.264 - Op til 4 x Stream - 54 x 90 x 29 mm / 100 g - Sort farve
SKU: ONVIF-HDMI
975.00 kr
Ekskl. moms
Levering 1-4 dage
På lager
Video Decoder - Opløsning op til 1920x1080p - Encoding H.265/H.264 - Op til 4 x Stream - 54 x 90 x 29 mm / 100 g - Sort farve
Kategori
Video Distributors
Mærke
MARCA BLANCA
- ONVIF til HDMI signal konverter • Opløsning op til 1920x1080p • Format H.265/H.264 • Kompatibel med forskellige live streaming platforme • Kompatibel med videoovervågningsenheder over ONVIF • Videoformat MWV/MPEG/MP4/MOV/FLV/F4V • Op til 4 x Stream
| Encoder | HDMI-ONVIF |
| Resolution | 1920x1080 @ 60P/50p,1920x1080 @ 60i/50i/1280x720 @ 60p/50P 720x57 6i/720x480i |
| Video output | 1 x HDMI (1,4) ,1 x VGA |
| Audio output | 1 x HDMI, RCA STEREO (3.5mm) |
| Type of coding | H.264 /H.265 |
| Communication | USB port |
| Coding resolution | 1920x1080 @ 60P/50p,1920x1080 @ 60i/50i/1280x720 @ 60p/50P 720x57 6i/720x480i |
| Video decoding | Maximum up to 4x Stream |
| Ethernet | 100M |
| Compatible with | HTTP, RTSP, RTMP, HLS, FLV, UDP Multicast Unicast |
| OSD | TXT, ROLL TXT, PNG |
| Management | Web page or remote control |
| Consumption | < 5 W |
| Power | DC 12 V / 1 A |
| Operating temperature | 0 ~ 45 ºC |
| Dimensions / Weight | 137 x 105 x 28mm / 100 g |
- Video Encoder
- DC power supply 12V / 2A
- HDMI cable
