HOCHIKI

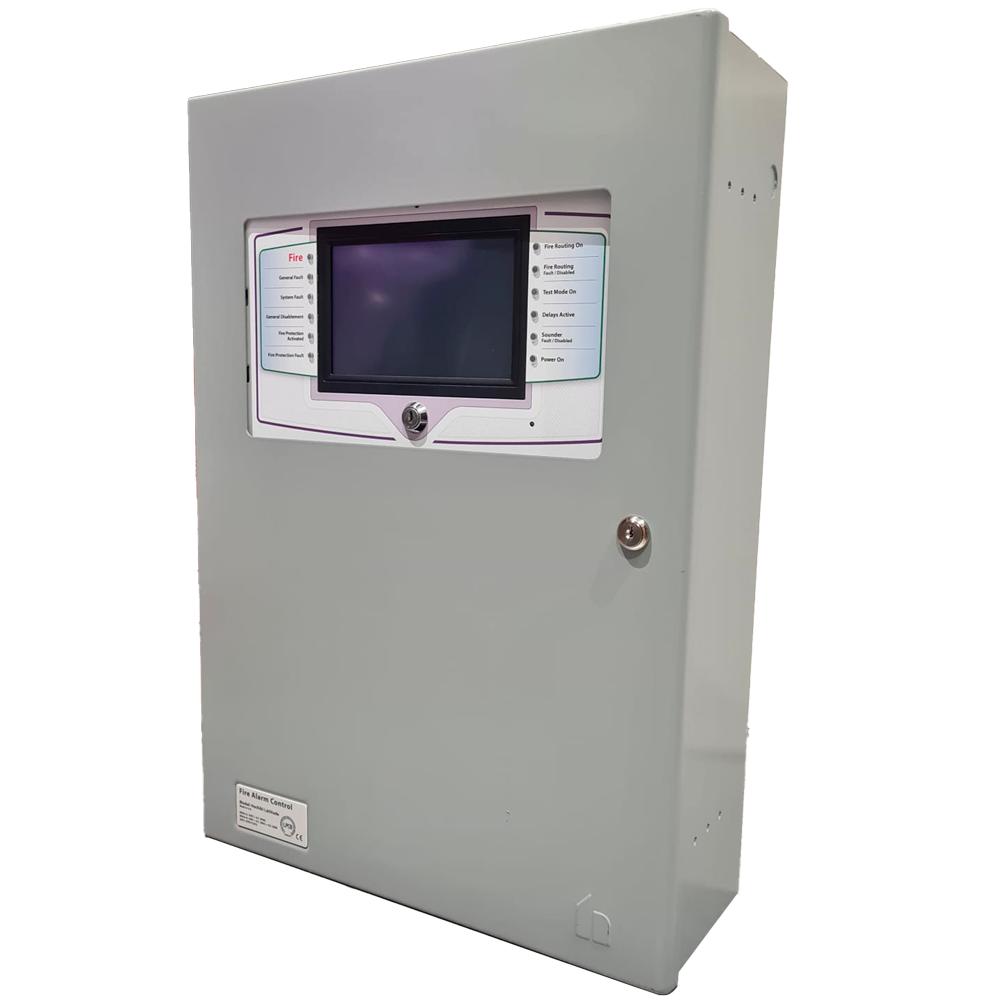

Adresserbar brandpanel med 2 loops - Strømforsyning 10,25 A - Loop-strøm på 500 mA - 4 sirenekredse og 5 programmerbare relæer - Resistiv touchscreen - Udvidelig til 8 loops
SKU: LAAED13010H1HEUK1
4.402.50 kr
Ekskl. moms
Levering 1-4 dage
På lager
Adresserbar brandpanel med 2 loops - Strømforsyning 10,25 A - Loop-strøm på 500 mA - 4 sirenekredse og 5 programmerbare relæer - Resistiv touchscreen - Udvidelig til 8 loops
Kategori
Hochiki — Paneler
Mærke
HOCHIKI
- Hochikis Latitude brandpanel tilbyder fleksibel branddetektering til mellemstore og store faciliteter. Dette alsidige system understøtter fra 2 loops, udvidelig til 8 loops takket være K758 loop-kort med kapacitet til op til 1.000 enheder. Intuitiv touchscreen-interface forenkler betjening og konfiguration. Panelet har robuste netværksmuligheder, der tillader integration af op til 127 paneler. Latitude-panelet sikrer præcis alarmstyring. Kompatibel med Hochikis brede udvalg af enheder.
| Reference | LAAEE11010H1HEUK1 |
| Battery capacity | Up to 45 Ah |
| Supply voltage | 230 VAC or 115 VAC |
| Power supply | A 24 V DC 10.25 A (charge up to 45 Ah) |
| Certificates | EN54-2, EN54-4, EN54-13 |
| LCD screen | Colour 800 x 480 with resistive touch screen and automatic backlight dimming |
| Printer | of 40 columns, front-loading thermal (optional) |
| LED zone indicators | Up to 3 banks of 48 (144) (optional) |
| Software zones | 2000 |
| Software groups | 5000 |
| Event registration | 10.000 events, resolution of 1 second. Filterable and printable |
| Detection loops | From 2 to 8 expandable with (K758 card from 2 loops) |
| Detection loop current | 500 mA each |
| Siren circuits, | 4 each rated 2,5 A, 24 V DC, programmable |
| Auxiliary supply of 24 V 1 | 24 V DC with fuse of 500 mA |
| Auxiliary supply of 24 V 2 | 24 V DC with fuse of 500 mA |
| Default Relays Failure, | Fire, Alarm, Programmable 1 and Programmable 2 (all reprogrammable) |
| Programmable inputs | 3, activated by volt-free contacts. |
| Auxiliary serial port A | RS232 programmable |
| Auxiliary serial port B | RS232 programmable |
| Serial fire routing port (Ifam) | RS485 programmable |
| USB host port | USB type A |
| USB device port | USB type B |
| Dimensions | 420mm (W) x 585mm (H) x 195mm (D) |
| Material | Steel sheet 1,5 mm. |
| Finished | Epoxy powder coated. |
| Color - Lid and Box | BS 00 A 05 fine texture |
| Weight (kg) | 20 |
| Fire routing output | Supervised |
| Fire routing input | Supervised |
| Fault routing output | Supervised |
| Fault routing input | Supervised |
| Extinguisher outlet | Supervised |
| Fire extinguisher input | Supervised |
| Extinguisher fault input | Supervised |
- Addressable fire panel of 2 loops expandable to 8
