THERMTEC

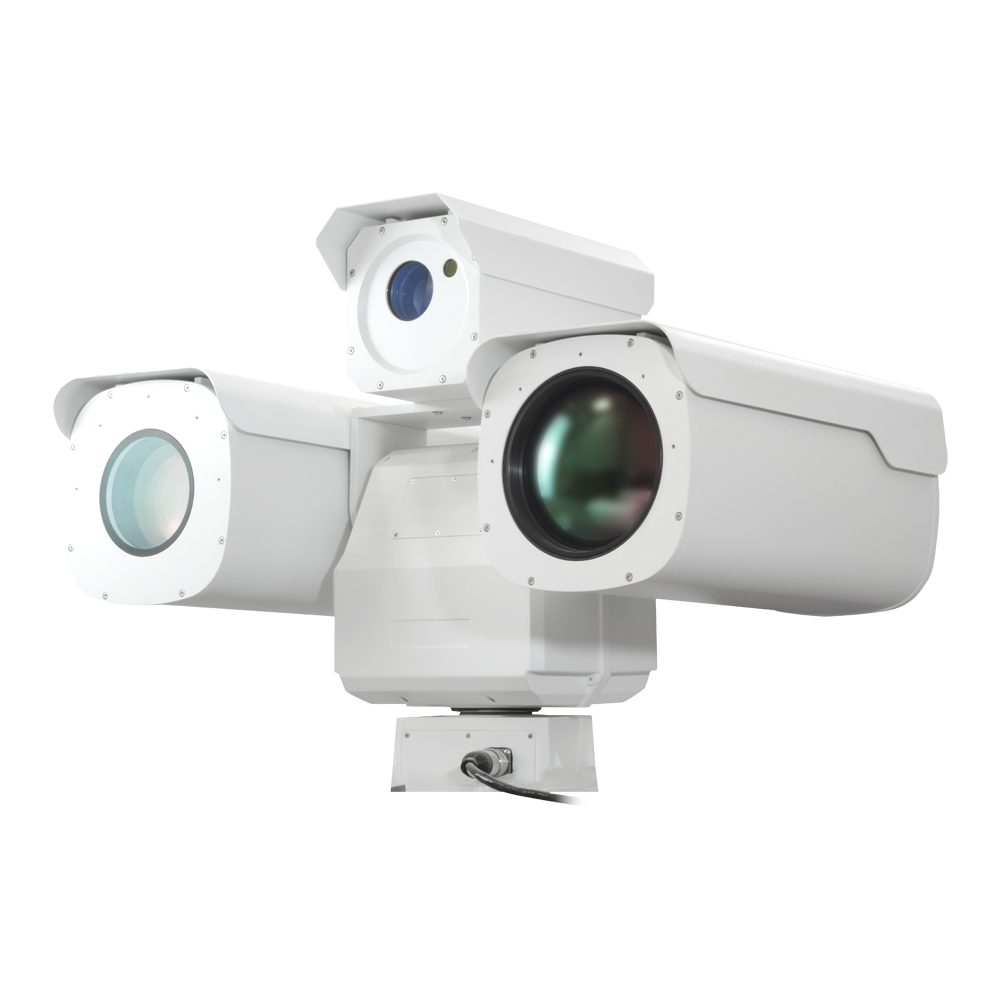

ThermTec Dual termisk IP PTZ kamera - 640x512 InSb kølet | Linse 30~660mm termisk - Termisk følsomhed ≤20mK - Nøjagtighed ± 8ºC - Temperaturdetektering og alarm - Alarmer | SD kort
SKU: IPPTZ900A-150D4-C
369.999.94 kr
Ekskl. moms
Levering 1-4 dage
På lager
ThermTec Dual termisk IP PTZ kamera - 640x512 InSb kølet | Linse 30~660mm termisk - Termisk følsomhed ≤20mK - Nøjagtighed ± 8ºC - Temperaturdetektering og alarm - Alarmer | SD kort
Kategori
Critical infrastructures
Mærke
THERMTEC
- ThermTec - Termisk Dual IP PTZ kamera - Temperatursensor 640x512 InSb kølet - Termisk motoriseret AF linse 30~660 mm - Bølgelængde 3~5 um - Termisk følsomhed ≤20mK - H.265 / H.264 - RJ-45 10/100M BaseT - Alarmer - Stærk vindmodstand - Temperaturdetektering og alarm - SD kort optagelse - WEB interface og VMS - ONVIF kompatibel
| Brand | ThermTec |
| Thermal sensor | 640x512 InSb cooled |
| Spectral range | 3 ~ 5 um |
| Optical sensor | 1/1.8" Sony CMOS |
| Main Stream rate | 640x512 (25fps) (Therm) / 2560x1440 (25fps) (Opt) |
| Extra Stream rate | CIF (25fps)(Term) / D1, VGA, 640x360, CIF, QCIF, QVGA (25fps) (Opt) |
| Compression | H.265 / H.264 / MJPEG |
| Lens | Motorized Autofocus 30 ~ 660 mm (Term) 22X / Motorized Autofocus 10.5 ~ 645 mm (Opt) 90X |
| Angle | H: 18.2º - 0.9º (Therm) / H: 24.55º - 2.77º (Opt) |
| Pan/Tilt Range | Horizontal: 0°~360° (without end), Vertical: -60° ~ 60° |
| Manual speed | Horizontal: 0.01° ~ 60°/sec, Vertical: 0.01° ~ 30°/sec |
| Preset positions | 256 preset |
| Thermal sensitivity | ≤20mK |
| Thermal image processing | DDE/ACE/DRC/Auto Pixel Failure Replacement |
| Range of Detectable Temperatures | -20 ℃ to 150 ℃ ( from -4 ℉ to ℉ 302 ) |
| Accuracy | ± 8ºC / ±2% |
| Image improvements | Defog, Privacy Masking, Mirror, ROI, 3D DNR, BLC, HLC |
| VCA ranges | Human detection (1.8x0.5 m): 20 Km Detection of vehículo(4x1.4 m): 75 Km Human Recognition (1.8x0.5 m): 7.2 Km Vehicle recognition (4x1.4 m): 25 Km Person ID (1.8x0.5 m): 3.5Km Vehicle identification (4x1.4 m): 13.5m |
| Intelligent functions | High temperature alarm, Motion detection, |
| Audio | Does not have |
| Alarm | 2 outputs |
| Internal memory | Micro SD card up to 64GB |
| Network interface | 1x Ethernet 10/100M BaseT |
| Others | RS 485, CVBS output |
| Remote access | WEB interface, VMS and NVR |
| Interoperability | ONVIF, SDK |
| Power | 48VDC / 400W |
| Temp. operation | -35º C ~ +75º C |
| Degree of protection | Weatherproof IP66 |
| Dimensions | 660 (D) x 786 (W) x 610(Al) mm |
| Weight | 50 Kg |
- Thermal Dual IP PTZ Camera
- Power supply 48V DC
- Installation material
- User instructions
