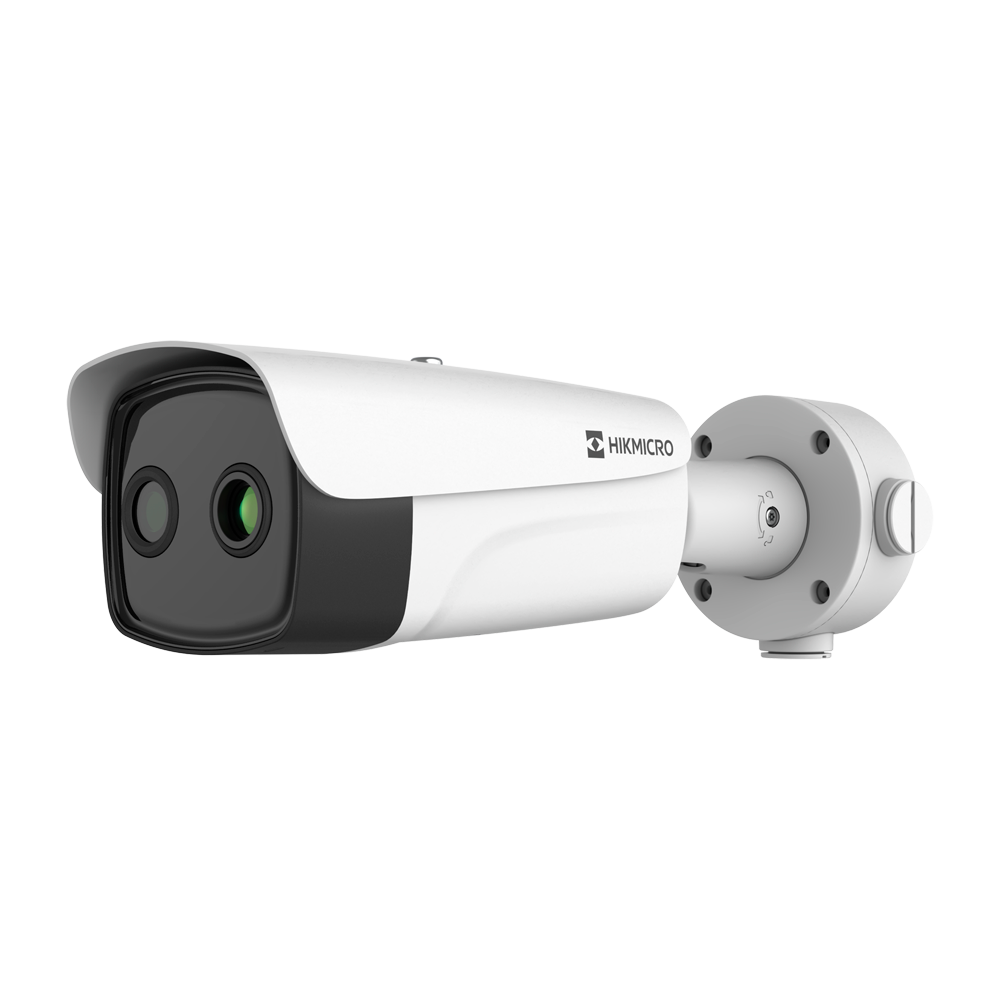

Hikmicro IP termisk kamera TD2638 serie - VOx FPA termisk sensor 384x288 12μm | Linse 7.6mm - Synlig 1/2.7" CMOS sensor 4Mpx Linse 4.3mm - Termisk følsomhed ≤25mK - Temperaturmåleområde -20~150ºC / ±8ºC - Beskyttelse IP67 - NEMA 4X - IK10
SKU: HM-TD2638-8/G0/T1Y
3.780.94 kr
Ekskl. moms
Levering 1-4 dage
På lager
Hikmicro IP termisk kamera TD2638 serie - VOx FPA termisk sensor 384x288 12μm | Linse 7.6mm - Synlig 1/2.7" CMOS sensor 4Mpx Linse 4.3mm - Termisk følsomhed ≤25mK - Temperaturmåleområde -20~150ºC / ±8ºC - Beskyttelse IP67 - NEMA 4X - IK10
Kategori
Perimeter protection
Mærke
HIKVISION PRO
- Hikmicro • Biespectro Thermal Bullet IP kamera • Termisk sensor 384x288 VOx FPA ukølet • Pixelstørrelse 12μm • 7.6mm linse • Temperaturmåleområde -20ºC~150ºC • Nøjagtighed ±8ºC • Termisk følsomhed ≤25mK • Synlig sensor 2688×1520 1/2.7" CMOS • 4.3mm linse • H.265/H.264 • RJ45 10/100 BaseT • RS485 • DC 12V/AC 24V/PoE IEEE802.3af • Maks. 12W • Alarmer
| Brand | Hikmicro |
| Range | TD2638 |
| Thermal sensor | VOx FPA non-refrigerated |
| Thermal sensor resolution | 384 x 288 |
| Pixel pitch | 12μm |
| Thermal lens | 7.6mm |
| Thermal sensitivity | ≤25mK |
| Thermal measurement range | -20~150ºC / ±8ºC |
| Spectral range | LWIR 8~14μm |
| Thermal viewing angle | 35° (H) x 26.1° (V) |
| Visible sensor | 1/2.7" CMOS |
| Visible sensor resolution | 2688 x 1520 (4Mpx) |
| Visible lens | 4.3mm |
| Visible viewing angle | 83.7° (H) x 43° (V) |
| Infrared illuminator | 30m. maximum |
| Bi-spectrum vision parameters | Fusion / Picture in picture |
| Main Stream rate | Thermal: 1280×720, 704x576, 352x288, 384×288 @25fps Visible: 2688×1520, 1920×1080, 1280×720 @25fps |
| Sub Stream Rate | Thermal: 704x576, 352x288, 384x288 @25fps Visible: 704x576, 352x288 @25fps |
| Compression | H.265 / H.264 |
| VCA | Temperature measurement, intrusion detection |
| Intelligent analysis | Intrusion, line crossing, area entry, area exit (8 maximum rules) |
| Advanced intelligent analysis | Smoker detection, fire detection |
| Temperature rules | 10 points, 10 areas and 1 line |
| DRI | Human: 317m (D), 79m (R), 40m (I) Vehicle: 971m (D), 243m (R), 121m (I) |
| Smart Analysis Ranges | Human: 104m Vehicle: 240m Temperature Measurement (object 0.2x0.2m)): 22.8m Temperature Measurement (object 0.5x0.5m)): 57m Fire detection (object 0.5x0.5m): 25.8m Smoker detection: 11.4m |
| Alarms | 2 inputs / 2 relays |
| Audio | 1 input / 1 output |
| Internal memory | SD card slot up to 512GB |
| Network interface | Ethernet 10/100 BaseT |
| Communication | RS-485 |
| Remote access | Web Browser, PC VMS Software (HikCentral/iVMS4200) |
| Interoperability | ONVIF, API, SDK |
| Power | 24 VAC ± 25% 12 VDC ± 25% 24 VDC PoE (802.3af, class 3) |
| Power consumption | 24 VAC ± 25%: 0.33A a 0.55A, max. 12.1W 12 VDC ± 25%: 0.8A a 1.33A, max. 11.3W PoE (802.3af, class 3): 36V to 57V, 0.33A to 0.21A, max. 11.8W |
| Temp. operation | -40ºC~+70ºC, <95% RH |
| Grado de protección | Impermeable IP67 NEMA 4X IK10 |
| Dimensiones | 376.1mm ×119.1mm × 118.1mm |
| Peso | 1.82Kg |
- Cámara térmica dual IP Hikmicro TD2638 series
- Caja de conexiones
- Material de instalación
- Instrucciones de uso
