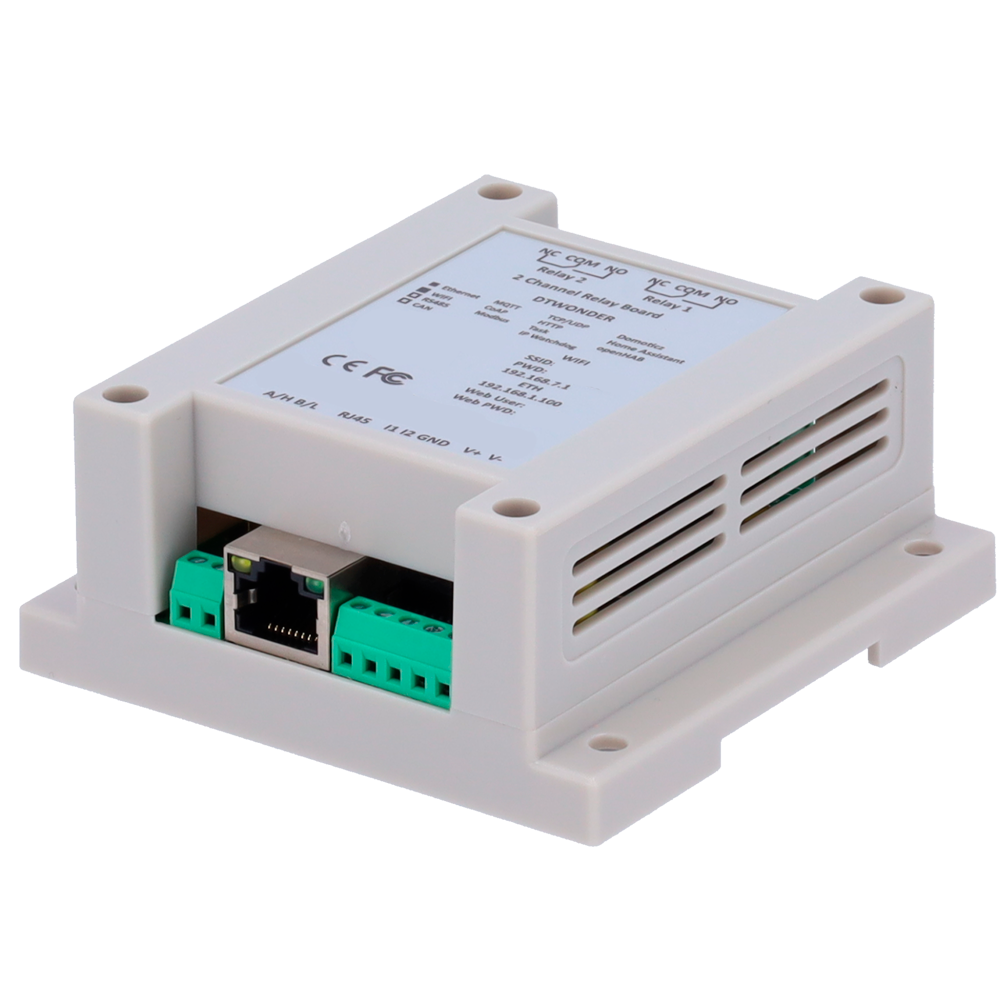

Dataindsamlings- og kontrolmodul - 2 digitale indgange | 2 relæudgange (NO/NC) - Protokoller: Modbus/TCP, TCP/IP, UDP, HTTP,... - Integreret webserver - Ethernet Port 10/100 Base-TX | WiFi Port - Strømforsyning ikke inkluderet (12VDC/1A)

SKU: DT-R002

285.00 kr

Ekskl. moms

Levering 1-4 dage

På lager

Dataindsamlings- og kontrolmodul (DA&C) • 2 digitale indgange og 2 relæudgange • LED indikator • Protokoller: Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT • Integreret webserver • Watchdog funktion til systemgendannelse • AND logikoperationer mellem indgange og udgange (fra version V3.1.5406) • 1 Ethernet port 10/100 Base-TX • 1 WiFi port

Inputs	2 digital
Outputs	2 relays
Protocols	Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP
Communication	1 Port 10/100 Base-TX 1 WiFi port
Watchdog	System: Programmable Communication: Programmable
Special functions	AND logic operations between inputs and outputs (from version V3.1.5406))
Connectors	Plug-in / screw-tightening connectors
Dimensions	87x68x27mm
Temperature	Functioning: -10~85ºC
Power	12VDC-24VDC 12VAC-24VAC
Current	1.5A@12VDC
Consumption	2W

Module
Installation material
Instructions
