IP video dørstation med adgangskontrol - Kamera 2 Mpx: Tovejs audio og video - Ansigt, kort, NFC, BLE, QR og PIN | 2 relæer - 20.000 brugere | PoE, SIP standard - IPS 7" touchscreen | Cloud vedligeholdelse - Forbindelse af monitor og paneler via Cloud
SKU: AK-E18C
Ekskl. moms
Levering 1-4 dage
IP video dørstation med adgangskontrol - Kamera 2 Mpx: Tovejs audio og video - Ansigt, kort, NFC, BLE, QR og PIN | 2 relæer - 20.000 brugere | PoE, SIP standard - IPS 7" touchscreen | Cloud vedligeholdelse - Forbindelse af monitor og paneler via Cloud

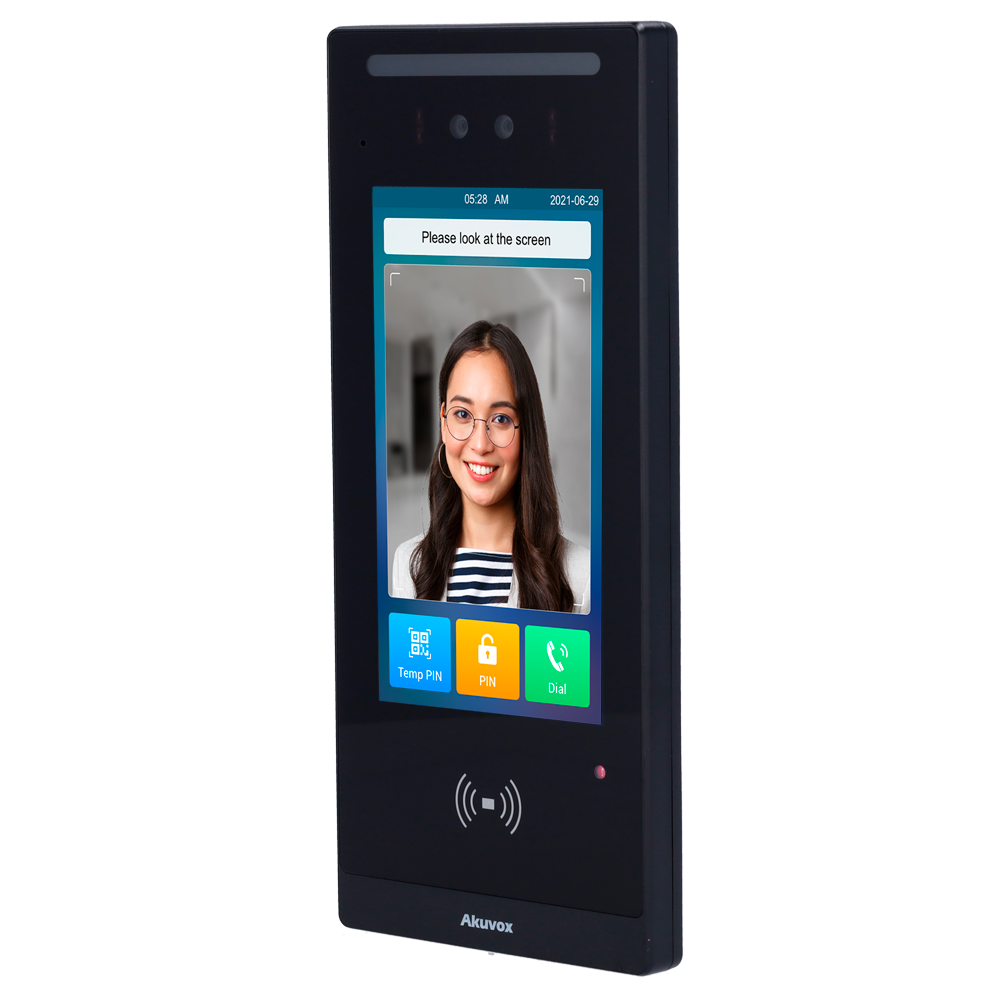

- Video dørstationen er det element, der placeres på ydersiden af ejendommen, derfor kaldes det også en udendørsenhed, og gør det muligt for besøgende at foretage opkald til bygningens personale. Disse enheder har også mulighed for at åbne døren gennem deres relæudgange. Denne model har 2 relæudgange til at håndtere op til 2 døre samtidigt. Derudover har den integreret adgangskontrol, der tillader identifikation gennem kort eller nøglebrikker med RFID EM 125 kHz og MF 13.56 MHz teknologi.
| Brand | Akuvox |
| Model | E18C |
| Access Control | Door opening with facial recognition, RFID card EM 125 kHz and MF 13.56 MHz, NFC, BLE, QR and PIN, with records |
| Capacity | Contacts: 1.000 RFID users: 20.000 faces and 20.000 cards/passwords |
| Records | 50.000 registers |
| Facial recognition verification time | < 0.2 sec |
| Facial recognition accuracy | > 99.5% |
| Screen | 7" IPS LCD full color touch screen |
| Outputs | 2 x lock relay, 1 x Wiegand OUT and 1 x RS485 |
| Inputs | 3 x output pushbutton and 1 x Wiegand IN |
| Remote access | SmartPlus cell phone application or configuration via WEB browser Remote access by Cloud: Included |
| Image sensor | Dual 2 Megapixel CMOS camera with infrared and light sensor, with anti-spoofing technology and mask detection |
| Camera resolution | 1920x1080 - 25fps / CIF, QCIF, VGA, 4CIF, 720p, 1080p Supports bidirectional video |
| Audio | Two-way audio with noise-reduced microphone and speaker with Crystal Clear Audio technology |
| Network interface | Ethernet 10/100 BaseT / RS485 / RTSP |
| Mode of operation | Local network and/or via cloud in different networks |
| Firmware updates | Remote with cloud via installer account or via web browser locally |
| Material | Plastic |
| Degree of protection | IP65 y IK07 |
| Temp. operation | -20 ºC ~ +55 ºC |
| Dimensions | 275 (H) x 120 (W) x 35 (D) mm |
| Power | DC 12 V / 1000 mA máx. / IEEE802.3af PoE |
| Weight | 1300 g |
- Akuvox outdoor video intercom panel
- User instructions
- Mounting material
