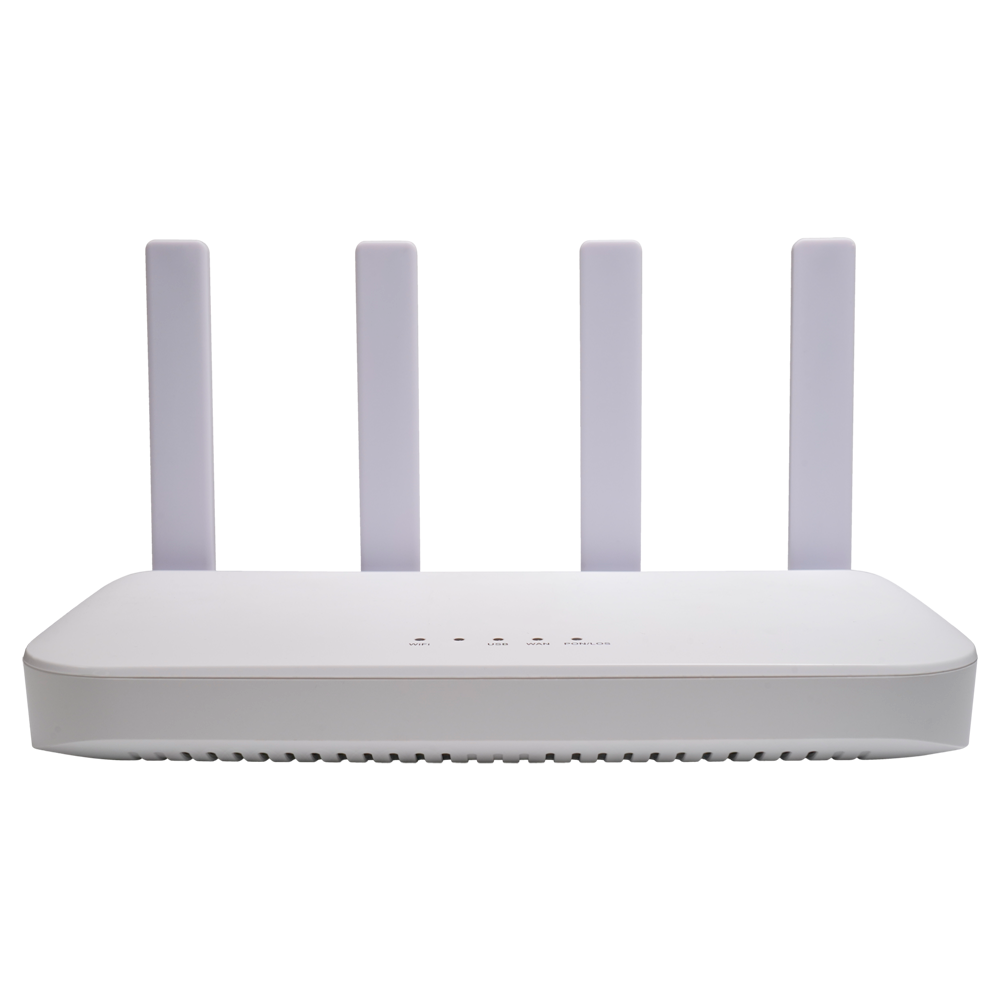

V-SOL Router ONT Wi-Fi 6 AX1500 - 1X PON 4x LAN RJ45 10/100/1000Mbps 1x USB3.0 - 802.11ac 2x2 double band 2.4 and 5GHz - Ideal for home and business FTTH - Designed to create a complete Mesh network

The V2804AX (WiFi6 XPON HGU ONT) is a broadband access device specially designed to meet the needs of fixed network operators for FTTH.

The ONT is based on high-performance chip solutions, supports dual-mode XPON technology (EPON and GPON), as well as IEEE802.11b/g/n/ac/ax WiFi 6 technology and other 2/capa 3, layer functions providing data services for carrier-grade FTTH applications. In addition, the ONT also supports the OAM/OMCI protocol, and allows configuring or managing various ONT services on the VSOL OLT.

The ONT offers high reliability, is easy to manage and maintain, and has quality of service (QoS) guarantees for various services. Complies with a number of international technical standards such as IEEE802.3ah and ITU-T G.984.

Router ONT XPON Gigabit Mesh Wi-Fi Router 6 AX1500
1X PON 4x LAN RJ45 10/100/1000Mbps 1x USB3.0
Compatible with 802.11a/b/g/n/ax dual-band 2,4 and 5 GHz
Wi-Fi capacity up to 1500Mbps
MU-MIMO technology with 2x2 integrated omnidirectional antennas
FTTH home and business
Mesh compatible
Multi-SSID

Brand	V-SOL
Interface	1X PON 4x LAN RJ45 10/100/1000Mbps 1x USB3.0
PON	XPON Port (EPON PX20+ and GPON Class B+) Singlemode SC, SC/APC connector Optical transmission power: 0 to +4 dBm Receiving sensitivity: -27 dBm Optical overload power: -3 dBm (EPON) o -8 dBm (GPON) Transmission distance: 20 km Wavelength: TX 1310 nm, RX 1490 nm
WiFi Antennas	Complies with IEEE802.11b/g/n/ax Wi-Fi: 2,4 GHz, 5 GHz 2x2, speed up to 1,5 Gbps, multiple SSIDs Transmission power: 2,4 GHz: 18 dBm; 5 GHz: 17 dBm Receiving power: 2,4 GHz: HT40-MCS7 -71 dBm; 5 GHz: VHT80 MCS9 <-63 dBm
Funciones WiFi	802.11b/g/n/ax integrado Autenticación: WAP-PSK (TKIP)/WAP2-PSK (AES) Múltiples SSID SSID ocultos WiFi Mesh Admite hasta 64 conexiones de dispositivos
Protocolos de Gestión	OAM/OMCI/Telnet/Web/TR069 Admite la gestión completa de las funciones de HGU mediante VSOL OLT
Funciones de capa 2 ( switching )	Compatible con bridge 802.1D y 802.1ad, VLAN 802.1Q
Funciones de capa 3 ( routing )	IPv4, IPv6 e IPv4/IPv6 dual stack DHCP/PPPOE/Estático Ruta estática, servidor DHCP NAT/DMZ/DDNS/Servidor virtual
Multicast	IGMP v1/v2/v3, espionaje IGMP Proxy IGMP Espionaje MLD v1/v2 Proxy MLD
QoS	Admite 4 colas de QoS ( Voip, IPTV, Internet ..) Compatible con SP, WRR, 802.1P y DSCP
Seguridad	Funciones básicas de firewall Filtrado de MAC basado en MAC o URL ACLs Compatible con detección de bucles
Funciones del sistema	NTP (Protocolo de Tiempo de Red) Reinicio programado del dispositivo Herramientas de diagnósticos de ping y traceroute
Color	Blanco
Dimensiones	250mm x 145mm x 36mm
Peso	340g
Temp. funcionamiento	0º C ~ +55º C
Alimentación	DC 12V 1A (adaptador incluido)

Router Wi-Fi 6 AX1500
Instrucciones de uso
Adaptador AC/DC
Cable UTP
