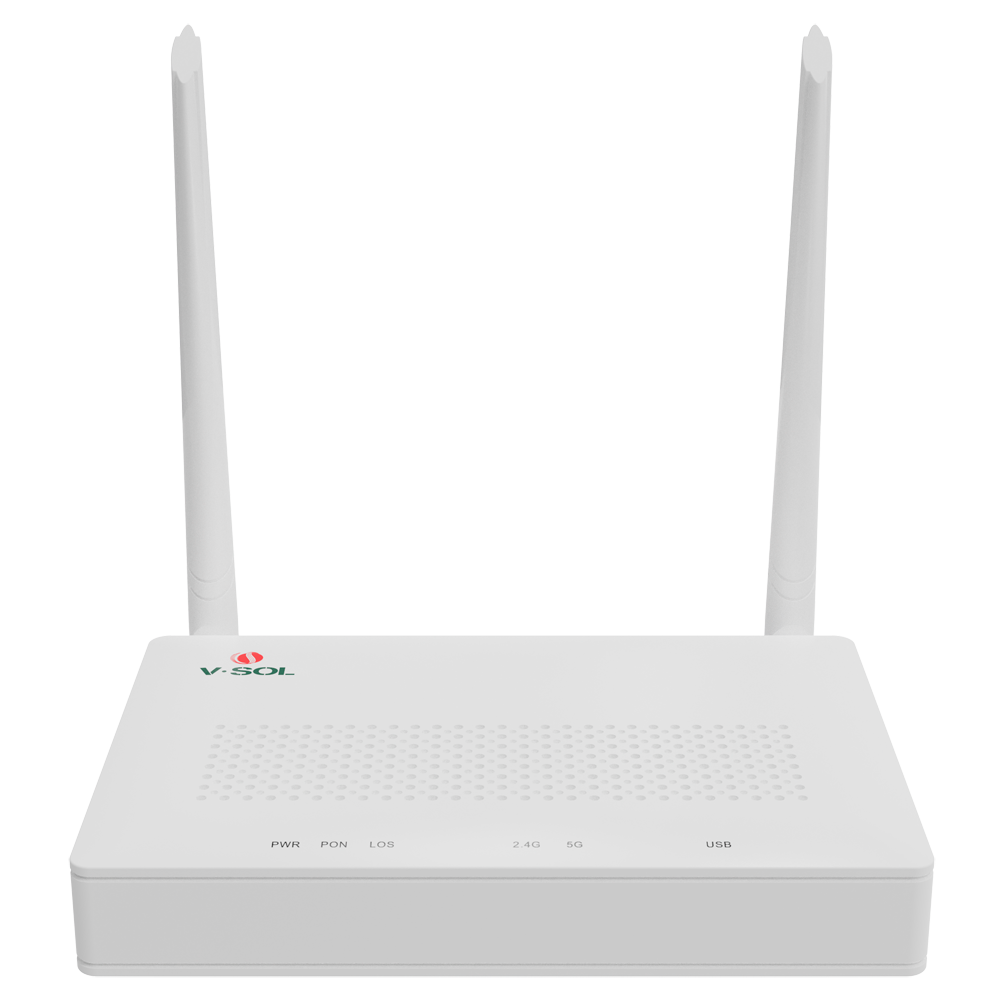

V-SOL Router ONT Wi-Fi 5 AC1200 - 1X PON 4x LAN RJ45 10/100/1000Mbps 1x USB3.0 - 802.11ac 2x2 double band 2.4 and 5GHz - Ideal for home and business FTTH - Designed to create a complete Mesh network
SKU: VSOL-V2804AC-A
Ekskl. moms
V-SOL Router ONT Wi-Fi 5 AC1200 - 1X PON 4x LAN RJ45 10/100/1000Mbps 1x USB3.0 - 802.11ac 2x2 double band 2.4 and 5GHz - Ideal for home and business FTTH - Designed to create a complete Mesh network
The V2804AC-A (4GE+USB 3.0+WiFi 5 XPON HGU ONT) is a broadband access device specially designed to meet the needs of fixed network operators for FTTH and triple play services.
The ONT is based on high-performance chip solutions, supports dual-mode XPON technology (EPON and GPON), as well as IEEE802.11b/g/n/ac Wi-Fi 5 technology and other layered 2/capa 3, functions providing data services for carrier-grade FTTH applications.
While maintaining its performance, the antenna has been transformed into an integrated dual-band antenna, which not only simplifies the design, but also reduces hardware costs and saves valuable physical space. In addition, the ONT is compatible with the OAM/OMCI protocol, and allows the configuration or management of various ONT services on the VSOL OLT.
The ONT offers high reliability, is easy to manage and maintain, and has quality of service (QoS) guarantees for various services. Complies with a number of international technical standards such as IEEE802.3ah and ITU-T G.984.
- Router ONT XPON Gigabit Mesh Wi-Fi Router 5 AC1200
- 4 Ports RJ45 10/100/1000Mbps LAN
- Compatible with 802.11a/b/g/n/ac dual-band 2,4 and 5 GHz
- Wi-Fi capacity up to 1200Mbps
- MU-MIMO technology with 2x2 integrated omnidirectional antennas
- FTTH home and business
- Mesh compatible
- Multi-SSID
| Brand | V-SOL |
| Interface | 1X PON 4x LAN RJ45 10/100/1000Mbps 1x USB3.0 |
| PON | XPON Port (EPON PX20+ and GPON Class B+) Singlemode SC, SC/APC connector Optical transmission power: 0 to +4 dBm Receiving sensitivity: -27 dBm Optical overload power: Transmission distance: 20 km Wavelength: TX 1310 nm, RX 1490 nm |
| WiFi Antennas | Complies with IEEE802.11b/g/n/ac Wi-Fi: 2,4 GHz, 5 GHz 2x2, speed up to 1,167 Gbps, multiple SSIDs Transmission power: 2,4 GHz: 18 dBm; 5 GHz: 17 dBm Receiving power: 2,4 GHz: HT40-MCS7 -71 dBm; 5 GHz: VHT80 MCS9 <-63 dBm |
| Funciones WiFi | 802.11b/g/n/ac integrado Autenticación: WAP-PSK (TKIP)/WAP2-PSK (AES) Múltiples SSID SSID ocultos WiFi Mesh Admite hasta 64 conexiones de dispositivos |
| Protocolos de Gestión | OAM/OMCI/Telnet/Web/TR069 Admite la gestión completa de las funciones de HGU mediante VSOL OLT |
| Funciones de capa 2 ( switching ) | Compatible con bridge 802.1D y 802.1ad, VLAN 802.1Q |
| Funciones de capa 3 ( routing ) | IPv4, IPv6 e IPv4/IPv6 dual stack DHCP/PPPOE/Estático Ruta estática, servidor DHCP NAT/DMZ/DDNS/Servidor virtual |
| Multicast | IGMP v1/v2/v3, espionaje IGMP Proxy IGMP Espionaje MLD v1/v2 Proxy MLD |
| QoS | Admite 4 colas de QoS ( Voip, IPTV, Internet ..) Compatible con SP, WRR, 802.1P y DSCP |
| Seguridad | Funciones básicas de firewall Filtrado de MAC basado en MAC o URL ACLs Compatible con detección de bucles |
| Funciones del sistema | NTP (Protocolo de Tiempo de Red) Reinicio programado del dispositivo Herramientas de diagnósticos de ping y traceroute |
| Color | Blanco |
| Dimensiones | 180mm x 120mm x 32mm |
| Peso | 280g |
| Temp. funcionamiento | 0º C ~ +55º C |
| Alimentación | DC 12V 1A (adaptador incluido) |
- Router Wi-Fi 5 AC1200
- Instrucciones de uso
- Adaptador AC/DC
- Cable UTP
