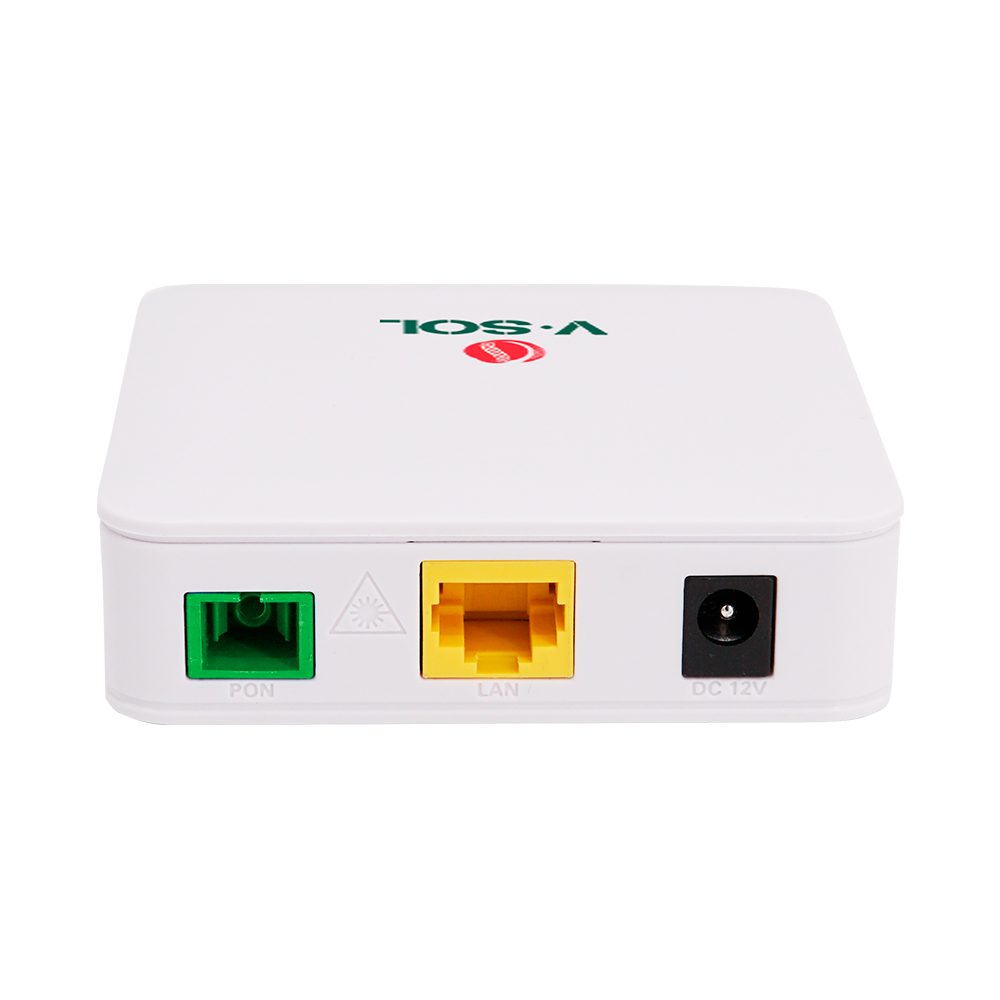

V-SOL ONT XPON - 1X PON 1x LAN RJ45 10/100/1000Mbps - Ideal for home and business FTTH

The V2801RD ONT (XPON 1GE ONU) is specially designed to meet the needs of telecom operators in FTTO (office), FTTD (desktop), FTTH (home), SOHO broadband access, video surveillance, etc. This ONU is based on high-performance chip technology solutions and supports Layer 2/Capa 3, functions providing data services for carrier-grade FTTH applications. The ONT offers high reliability and can be applied in a wide range of temperature environments and has a powerful firewall function that is easy to manage and maintain. Offers quality of service (QoS) assurance for different services. Complies with international technical standards such as IEEE802.3ah and ITU-T G.984.

ONT XPON
1X PON x LAN RJ45 10/100/1000Mbps
FTTH home and business

Brand	V-SOL
Interface	1X PON 1x LAN RJ45 10/100/1000Mbps
PON	XPON Port (EPON PX20+ and GPON Class B+) Singlemode SC, SC/APC connector Optical transmission power: 0 to +4 dBm Receiving sensitivity: -27 dBm Optical overload power: -3 dBm (EPON) o -8 dBm (GPON) Transmission distance: 20 km Wavelength: TX 1310 nm, RX 1490 nm
Management Protocols	OAM/OMCI/Telnet/Web/TR069
Layer functions 2 ( switching )	Compatible with bridge 802.1D and 802.1ad, VLAN 802.1Q
Layer functions 3 ( routing )	IPv4, IPv6 and IPv4/IPv6 dual stack DHCP/PPPOE/Static Static route, DHCP server NAT/DDNS/Virtual Server
Multicast	IGMP v1/v2/v3 Maximum multicast VLANs: 8 Maximum multicast groups: 64
QoS	Supports 4 QoS queues (Voip, IPTV, Internet...) Compatible with SP, WRR, 802.1P and DSCP
Security	Basic firewall functions MAC or URL based MAC filtering ACLs Loop detection support
Colour	White
Dimensions	82mm x 82mm x 25mm
Weight	85g
Temp. operation	0º C ~ +55º C
Power	DC 12V 0.5A (adapter included)

ONT XPON
User instructions
AC/DC Power adaptor
UTP cable
