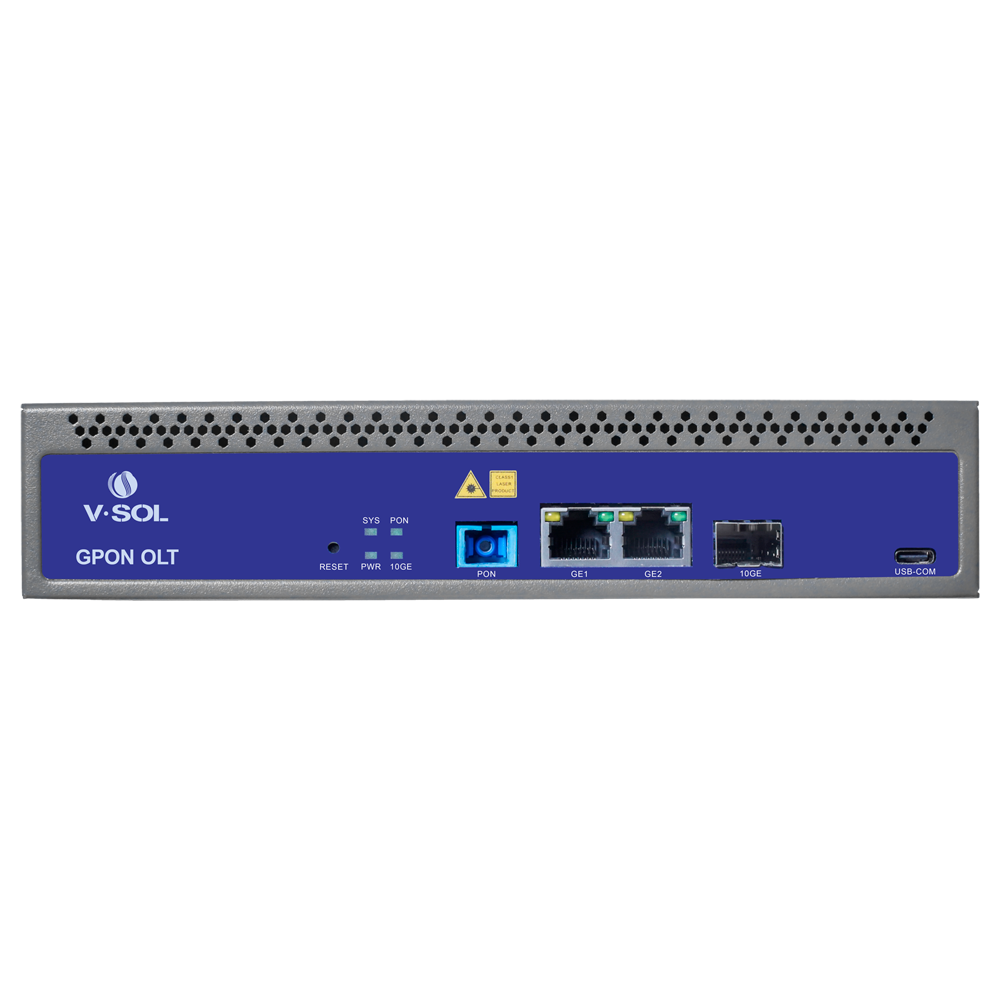

V-SOL Single Pon Gpon OLT - 2 Ports RJ45 10/100/1000 Mbps + 1 1/10Gigabit SFP+ Port - Up to 128 ONT per device - Transmission distance up to 20 km - Routing Layer 3 ( NAT,DMZ,ACL,PPPOE,DHCP ) - Switching Layer Switching 2 ( VLANs, MULTICAST, STP )
SKU: VSOL-V1600GS-F
Ekskl. moms
V-SOL Single Pon Gpon OLT - 2 Ports RJ45 10/100/1000 Mbps + 1 1/10Gigabit SFP+ Port - Up to 128 ONT per device - Transmission distance up to 20 km - Routing Layer 3 ( NAT,DMZ,ACL,PPPOE,DHCP ) - Switching Layer Switching 2 ( VLANs, MULTICAST, STP )
VSOL-V1600GS-F is a device that provides Internet and other services (such as telephone or TV) to many homes or businesses using fiber optics.
An OLT is the "brain" of the fiber optic network used by many Internet companies.
Think of it as a central fiber Internet delivery system: receives a large internet signal and distributes it through fiber optic cables to many users at the same time.
Use cases of V1600GS-F
-Connecting many homes in a new neighborhood
Imagine building a new neighborhood with 500 houses. Instead of running an internet cable to each house from the city (which is costly and inefficient), a company installs this OLT equipment in a nearby technical room and connects all the houses by fiber optics from there.
-Providing internet in an office building
In a building with many companies, the OLT can be installed in the building's communications room. Each office receives its fiber connection from this point.
-Providing services at a university
A university with many buildings and dormitories can use this equipment to distribute fiber Internet to all spaces from a single point.
-Small or rural internet providers
A small company offering internet in a rural area can use this equipment to connect several villages or communities from a local exchange, using less infrastructure than other technologies.
- Single Pon Gpon OLT
- 2 Ports RJ45 10/100/1000 Mbps + 1 1/10Gigabit SFP+ Port
- Up to 128 ONT per device
- Transmission distance up to 20 km
- Bandwidth uplink/downlink ~ 1.25Gbps/2.5Gbps
- Rackmount
| Brand | V-SOL |
| Chassis | Rack 1U |
| Interfaces | 2 Ports RJ45 10/100/1000 Mbps + 1 1/10Gigabit SFP+ Port 1 GPON Port 1.25Gbps/2.5Gbps 1 USB-COM port ( Type C ) |
| GPON | GPON port speed: Up/Down ~ 1.25Gbps/2.5Gbps Fiber Type : Single mode 9/125μm Connector: SC/UPC,TX: 7.5±0.5dBm, Sensitivity: -32dBm Wave length : TX 1490nm, RX 1310nm Wavelength division ratio : 1/128 ( up to 128 ONT ) Maximum transmission distance : 20 KM |
| Plate bandwidth | 16 Gbps |
| Forwarding rate | 23.808 Mbps |
| Management Protocols | WEB/Telnet/CLI/SNMP Port status configuration monitoring and management ONT online configuration and management User management Alarm management |
| Surge protection | 4KV |
| Switching Layer 2 | Mac address table ( up to 1000 ) Supports Vlans ( up to 4096 ) Storm control by ports Supports 802.1D and 802.1W ( STP ) Port isolation Bandwidth limitation per port IEEE802.x Flow control Port monitoring and statistics |
| Multicast | IGMP snooping 256 IP Multicast Groups |
| DHCP | DHCP server, DHCP relay, DHCP snooping DHCP option82 DHCPv6 server, DHCPv6 relay |
| Routing Layer 3 | Dynamic and static ARP table WAN configuration (DHCP/PPPOE/Estatic) Static routing, NAT, DMZ QoS based on DSCP, MAC, IP, Protocol, etc. Access Control List ( ACL ) |
| GPON functions | Complies with the ITU-T984.x standard (standard for GPON networks) Transmission distance up to 20 km Data encryption, multicast, port VLAN, splitting, etc. ONT autodiscovery, link detection and remote software update VLAN splitting and user separation to avoid broadcast storms Shutdown alarm function for easy detection of link problems Diffusion storm resistance function |
| Power | AC 100 V - 240 V DC 12V/2A |
| Operating temperature | -20°C - 60°C |
| Dimensions | 210mm x 173mm x 43.6mm |
| Weight | 1.07kg |
- V-SOL Single Pon Gpon OLT
- AC power cable
- User instructions
