TELTONIKA

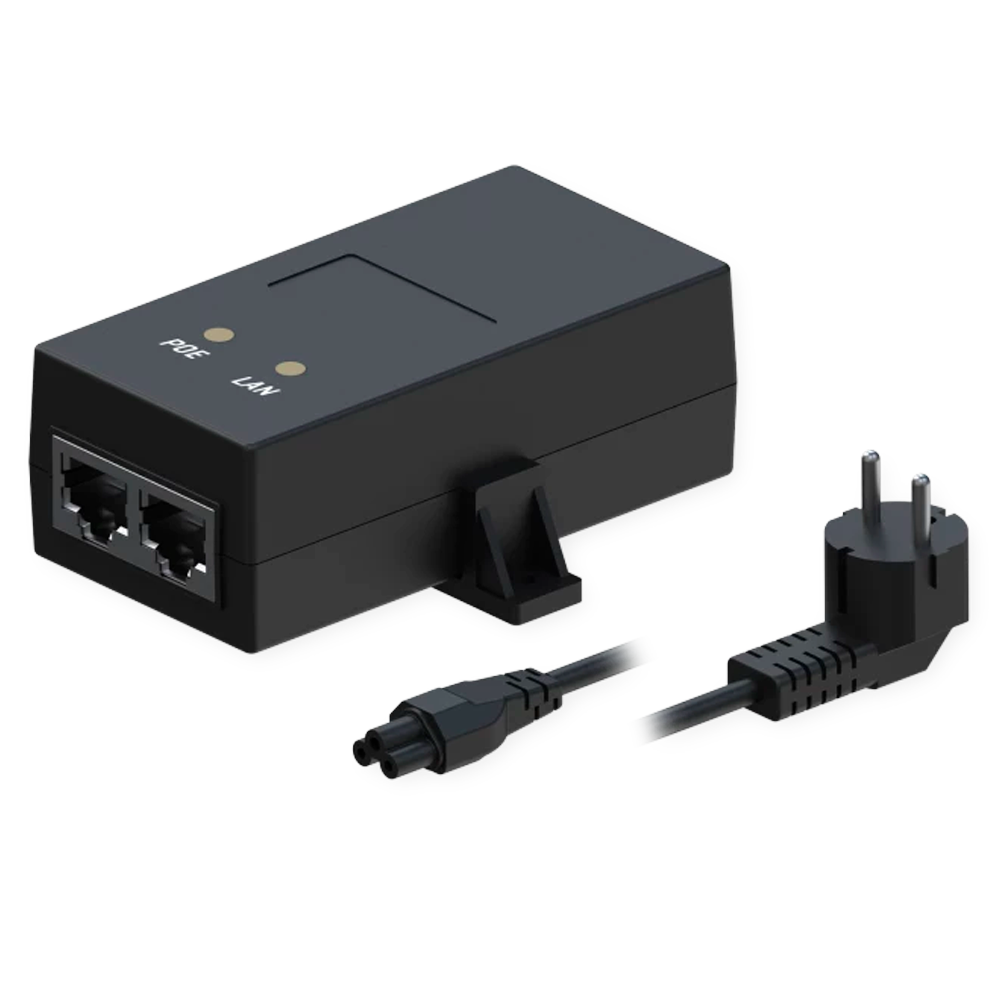

Passive PoE Injector - Input/Output RJ45 10/100 Mbps - 24V 1A - Maximum distance 100 m - Compatible with TK-PR1IC860 and TK-PR1ICC60 - Stabilized and protected
SKU: TK-PR323EUB
178.12 kr
Ekskl. moms
Udsolgt
Passive PoE Injector - Input/Output RJ45 10/100 Mbps - 24V 1A - Maximum distance 100 m - Compatible with TK-PR1IC860 and TK-PR1ICC60 - Stabilized and protected
Kategori
Accessories
Mærke
TELTONIKA
- Passive PoE Injector
- Allows injecting data and power into a UTP cable to power passive PoE devices (24v 1A) remotely
- Maximum distance 100 metres
| Interface | Input / Output RJ45 of 10/100 Mbps |
| Use cases | Passive PoE power supply for TK-PR1IC860 and TK-PR1ICC60 antennas |
| Power supply | 24V 1A |
| PoE features | Passive PoE Mode B Pins 4-5 positive Pins 7-8 negative |
| Maximum range | 100 meters |
| Input power | AC100-240V, 50/60Hz |
| Power supply connector | Schuko type F |
| Operating temperature | 0º C ~ 40º C |
| Dimensions | 86 (D) x 30 (H) x 65 (W) mm |
| Weight | 295 g |
| Certified | RoHS Safety: EN 62368-1:2014+A11:2017 EMC: EN 55032:2015/A11:2020 EN 55035:2017 EN IEC 61000-3-2:2019 EN 61000-3-3:2013+A1:2019 |
| MTBF (mean time between failures) | 40000 hours |
- Passive PoE Injector
- Quick installation guide
