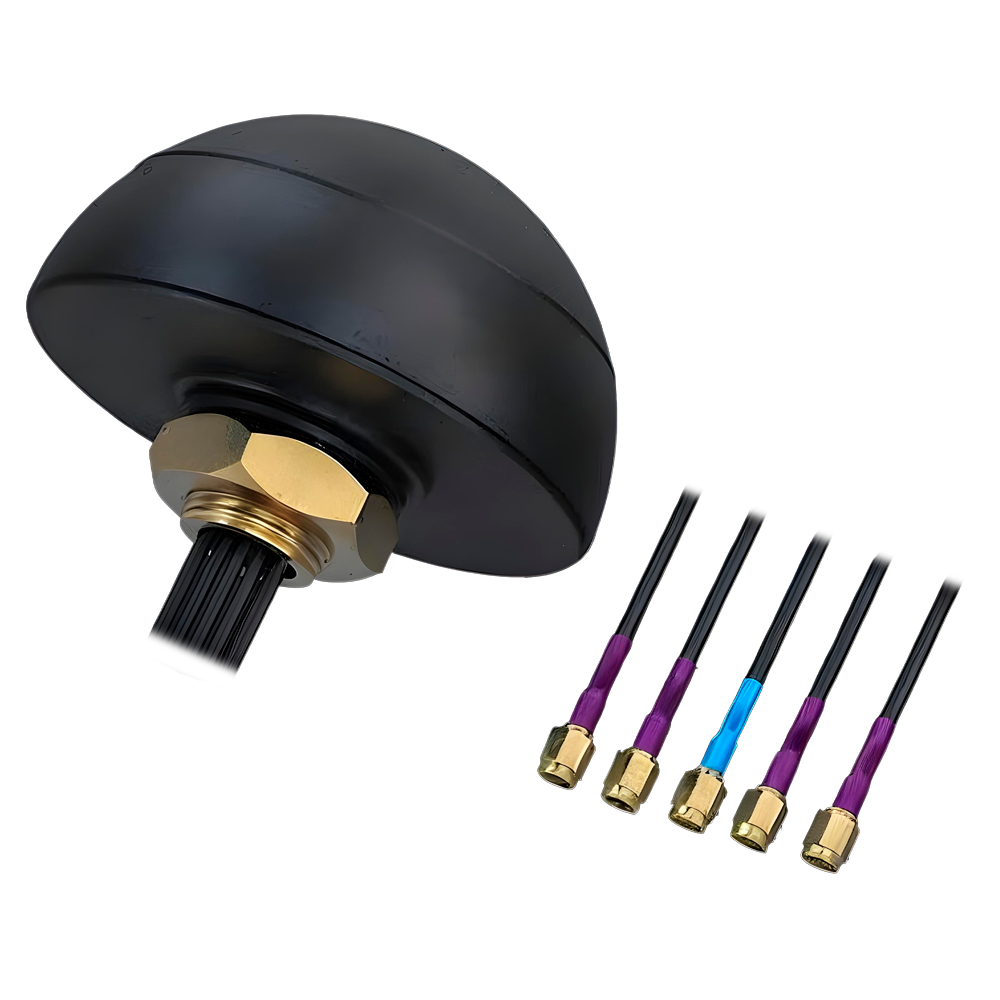

Teltonika Antenna - Quad Combo Antenna (4x LTE MIMO + 1x GNSS) - 5x High quality SMA Male Connectors - Outdoor certification with IP67 protection - 5x Integrated RG174 cables 3 meters in length

The TK-PR1KCL28 is an all-in-one rooftop antenna designed by Teltonika to maximize the performance of high-end routers such as the RUTX12 and RUTX14 models. This advanced solution integrates a Quad-band architecture for mobile connectivity (4 LTE ports) together with a high-precision GNSS system, enabling not only massive data transmissions via 4x4 MIMO technology, but also accurate satellite tracking. Its low-profile design (53 mm high) and rugged ABS housing with IP67 protection rating make it ideal for permanent installations in industrial vehicles, transportation fleets and critical IoT applications exposed to extreme weather conditions. Thanks to its 5 cables of 3 meters included, it offers total flexibility for ceiling mounting of any type of mobile infrastructure.

• Teltonika
• Quad Mobile (4x4 MIMO) + GNSS combo
• LTE Frequency Range: 698 - 960 / 1710 - 2690 MHz
• GNSS frequency: 1575.42 MHz
• LTE/LNA gain: 3.0 dBi / 28± 2dB
• IP67 (Water and dust resistant)
• Screw Mount - Diameter M27)

• 1x Teltonika Antenna PR1KCL28 Quad/GNSS Combo
• 4x Integrated Mobile Cables (SMA Male)
• 1x Integrated GNSS Cable (SMA Male)
• 1x Mounting nut M27 and sealing gasket
