MARCA BLANCA

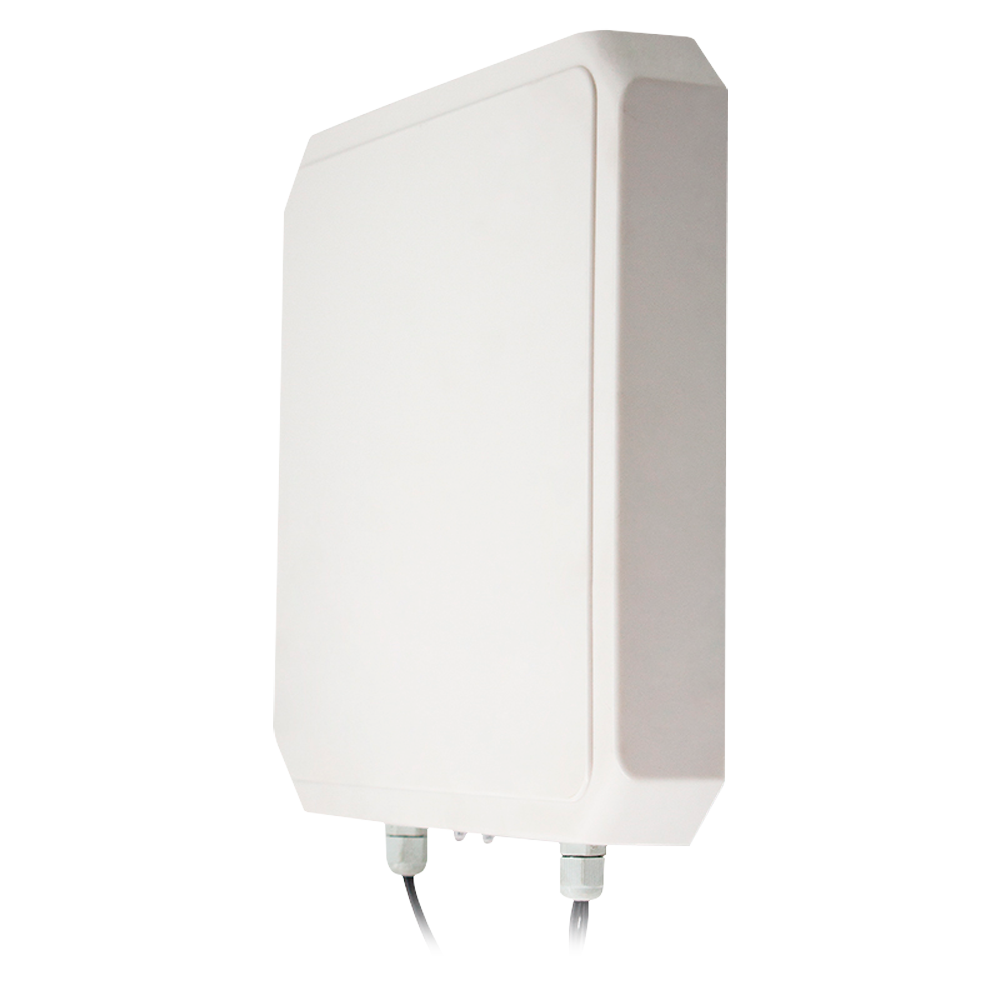

Access reader - UHF TAG Access - Range up to 6 m adjustable - Wiegand 26/34 - Compatible with third-party equipment - Suitable for exterior IP65
SKU: UHF-READER-6M
310.00 kr
Ekskl. moms
Udsolgt
Access reader - UHF TAG Access - Range up to 6 m adjustable - Wiegand 26/34 - Compatible with third-party equipment - Suitable for exterior IP65
Kategori
Readers and Stand-alone
Mærke
MARCA BLANCA
An access reader is used to identify users who want to access a system protected by an access controller. Transmits the credential information, with the controller deciding how to proceed.
This reader allows identification through cards or key fobs with 902-928 MHz and 865-868 MHz UHF technology.
The connection to the controllers is made via Wiegand. This protocol allows a secure connection in the outdoor installation with its IP65 grade.
- Access reader for controller
- Access with UHF
- Suitable for vehicle and personnel management
- Wiegand 26/34 and USB
- Suitable for exterior IP65
- Range up to 6 metres
- Compatible with Wiegand controllers
| Model | UHF-READER-6M |
| Reading distance | Up to 6 m |
| Identification modes | UHF TAG (ISM 902-928 MHz and ISM 865-868 MHz) |
| Compatibility | Third-party access control equipment with Wiegand connection |
| Configuration | USB Cable |
| Horizontal angle | Directional antenna with aperture up to 75º |
| Power | DC 12 V, 3 A |
| Degree of protection | Suitable for exterior IP65 |
| Temp. operation | -20 ºC ~ +70 ºC |
| Dimensions | 215 (W) x 215 (H) x 50 (D) mm |
| Weight | 800 g |
- UHF reader
- Mounting material
- USB Cable
