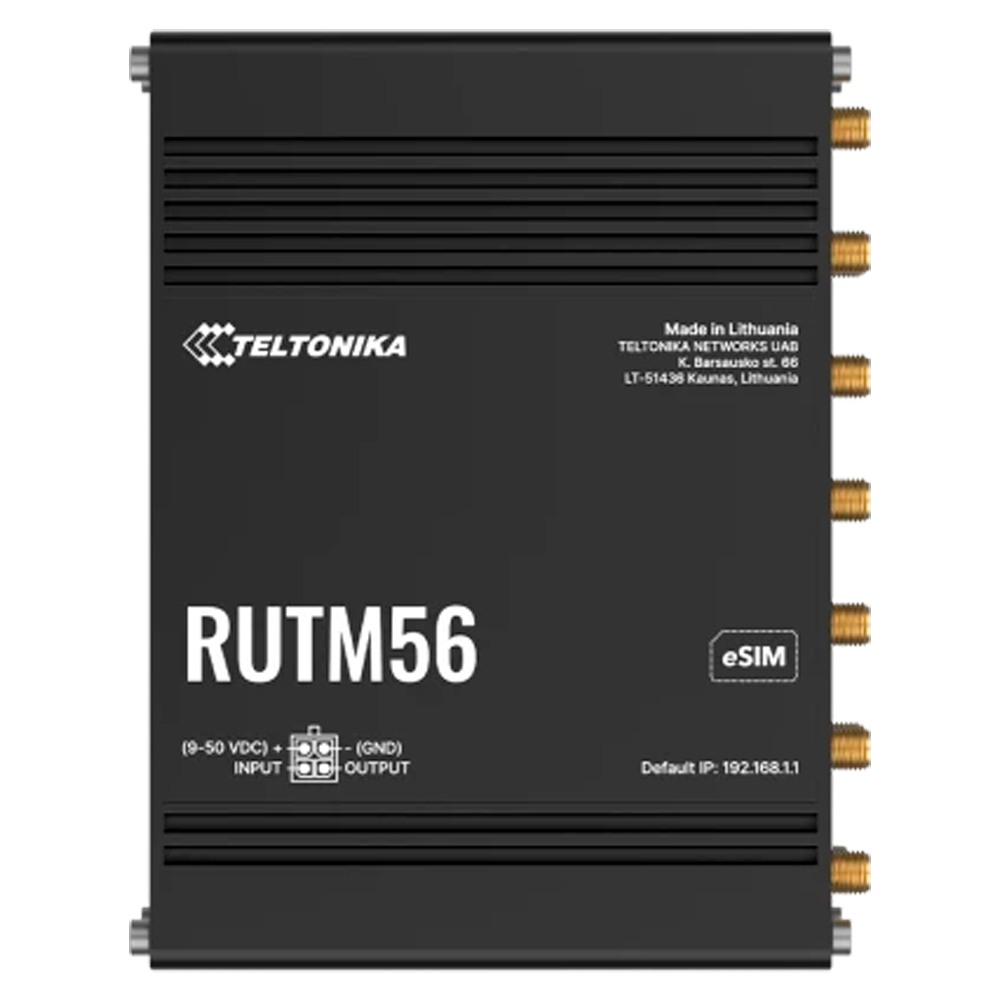

Teltonika Industrial Router 5G - Double modem (1x Modem 5G , 1x Modem 4G) - 5 ports 10/100/1000Mbps - WiFi 802.11 b/g/n/ac - Aluminum Housing
SKU: TK-RUTM56
Ekskl. moms
Teltonika Industrial Router 5G - Double modem (1x Modem 5G , 1x Modem 4G) - 5 ports 10/100/1000Mbps - WiFi 802.11 b/g/n/ac - Aluminum Housing
The RUTM56 is a future-proof dual-modem router designed to bridge the gap between legacy and next-generation networks. With integrated 5G and 4G Cat 4 modems, it ensures continuous operation by providing seamless failover to 3G and 2G networks. The RUTM56 ensures uninterrupted high-speed connectivity with dual SIM and eSIM support. Load balancing, Wi-Fi 5 and five Gigabit Ethernet ports optimize performance, while RutOS with versatile industrial and VPN protocols simplifies complex IoT configurations . This single, ready-to-use product enables rapid deployment of connectivity, eliminating the time-consuming configurations and risks associated with similar multi-device solutions.
Offers outstanding remote management features (RMS) and VPN functionality.
RMS (Remote Management System): This router enables remote management through the RMS platform, facilitating monitoring and control of connected devices from any location. This is especially useful for companies that need to manage multiple routers in different locations, as it provides a centralized interface for configuration, upgrades and device status monitoring.
VPN (Virtual Private Network): Supports multiple VPN protocols, enabling secure, private connections over the Internet. This is ideal for protecting sensitive information and ensuring that communications between different networks or devices are secure. With the ability to configure VPNs, users can access the network remotely without compromising security.
- Industrial Router 5G with WiFi
- 1x Modem 5G 1x Modem 4G
- 5 Ethernet ports RJ45 10/100/1000 (1xWAN/LAN+4xLAN)
- Dual SIM card slot + eSIM
- Dual band WiFi access point 802.11 b/g/n/ac Wave 2
- WiFi, GPS and LTE antennas included
- DIN-rail installation
- DC power 9 to 50V (power 18W included)
- Status LEDs
| Brand | Teltonika |
| Geographical area of operation/Bands supported | EMEA, APAC, Brazil 5G NR NSA: n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78 5G NR SA: n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78 4G (LTE-FDD): B1, B3, B5, B7, B8, B20, B28, B32 4G (LTE-TDD): B38, B40, B41, B42, B43 3G: B1, B5, B8 |
| Device | Industrial Router 5G |
| WiFi | IEEE 802.11 b/g/n/ac Wave 2 Dual Band 2.4+5GHz |
| LTE | Double modem (1x Modem 5G , 1x Modem 4G) |
| Ethernet | 5 Ethernet ports RJ45 10/100/1000 Mbps (1x LAN/WAN + 4x LAN) |
| Antenna connectors | 4 x LTE and 2 x WiFi (antennas included) |
| SIM | 2 microSIM card slots |
| eSIM | 2 x eSIM compatible Modem (up to 7 profiles per eSIM) |
| CPU | 880 MHz, Dual-Core MediaTek MIPS1004KC |
| RAM | 256 MB DDR3 |
| Flash | 16MB serial NOR flash, 256MB serial NAND flash |
| Operating System | RutOS (Based on OpenWRT) |
| Network Protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL) |
| GNSS Technologies | GPS, GLONASS, BeiDou, Galileo and QZSS |
| Ports | 1 x Digital Input, 0 - 6 V detected as low level, 8 - 50 V detected as high level 1 x Digital Output, Open Collector Input, Maximum Output 50 V, 300 mA |
| Power | DC connector 4 DC industrial pins 9~50V (power supply 18W included) |
| Material | Aluminium housing |
| Temp. operation | -40º C ~ +75º C |
| Operating humidity | 10 ~ 90 % (non-condensing) |
| Optional mounting kits | Rail Mounting Kit, Compact Rail Mounting Kit, Surface Mounting Kit |
| Degree of protection | IP30 |
| Installation | DIN rail |
| Dimensions | 132 × 95 × 44,2 mm |
| Weight | 515 g |
- Industrial 5G WiFi Router
- User instructions
- 18WDC Power supply
- LTE, GPS and WiFi antennas
- DIN Rail Mounting Kit
- Ethernet Cable 1,5m
