Video door entry monitor - IPS touch screen of 7" - Bidirectional audio - TCP/IP, WiFi - MicroSD card slot up to 256 GB - Surface mounting

The video door entry monitor is the element that is placed inside the premises, therefore it is also called an indoor unit, and allows to receive calls from visitors to the building staff.

This model has a 7" touch screen for easy user operation, with IPS technology that offers higher image quality.

IP equipment communicates and is powered by Ethernet cables and PoE switches, reducing the number of cables required for operation.

Advanced configurable functions: oNVIF protocol (allows adding CCTV cameras directly to the monitor without additional APPs).

With the Safire Smart mobile app, the end-user can receive calls, open the door or view the live camera feed from the panel, all from any location.

Safire Smart
IPS touch screen for 7" video door entry systems
Built-in microphone and speaker
Bidirectional audio
8 alarm inputs
DC output 12 V
MicroSD slot
Image capture and recording
Multiple screen extensions
TCP/IP and WiFi
PoE IEEE802.3af
Internal calls between devices
Camera viewing via RTSP and ONVIF
Surface mounting

Brand	Safire Smart
Model	SF-VIDISP11-7WIP
Operating system	Linux
Screen type	7" color touch-screen IPS
Screen resolution	1024 x 600
Operation mode	Additional mechanical door opening button
Inputs	8 x configurable alarm inputs, 1 x RS485
Outputs	1 x DC 12 V / 200 mA (only when the equipment is supplied with DC 12 V)
Audio	Two-way audio with integrated microphone and loudspeaker Noise reduction and echo cancellation
Equipment capacity	Up to 5 further monitors as indoor extensions Up to 16 IP camera channels
Memory	MicroSD card slot (up to 256 GB)
Connection	Ethernet 10/100 BaseT / WiFi 802.11 b/g/n / RTSP / ONVIF
Remote access	Does not have
Power	DC 12 V / 500 A max. / IEEE802.3af PoE
Temp. operation	-20 ºC ~ +50 ºC

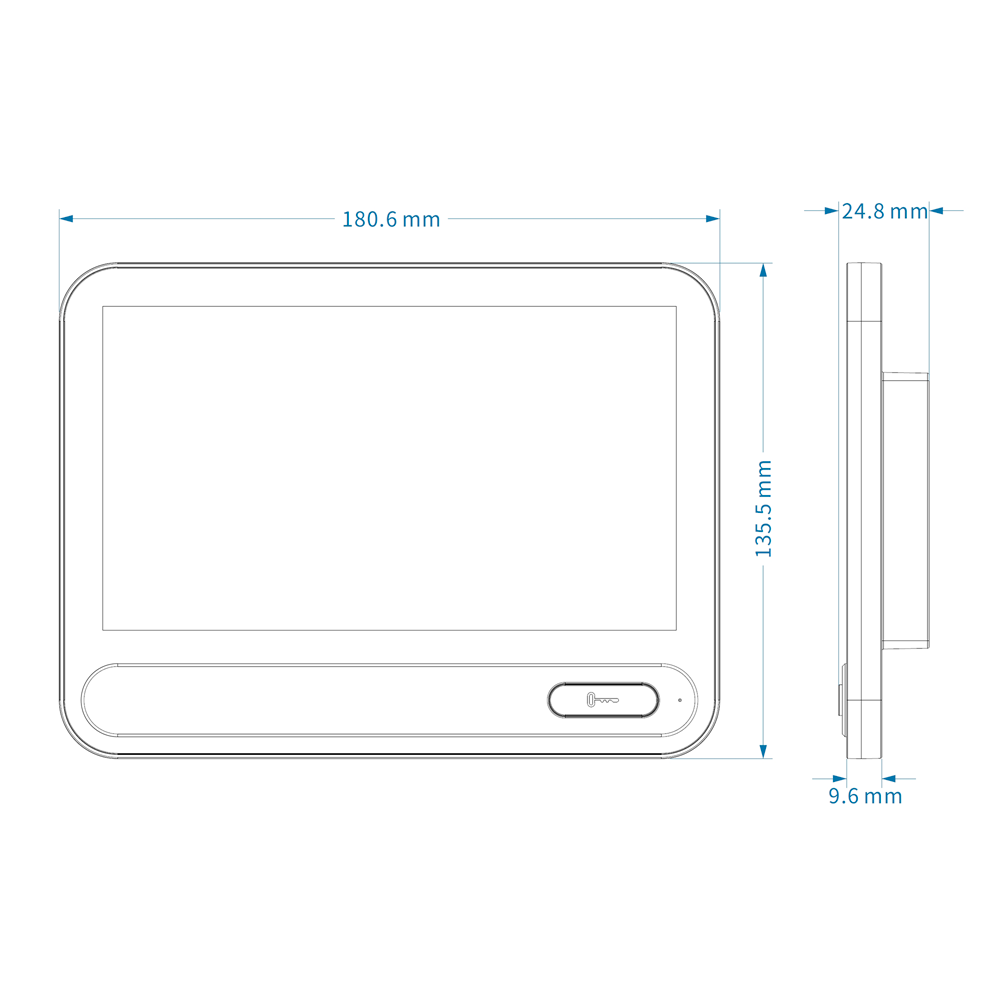

Dimensions	136 (H) x 181 (W) x 27 (D) mm
Weight	360 g

Safire Smart Indoor Video Door Station Monitor
Installation material
User instructions
