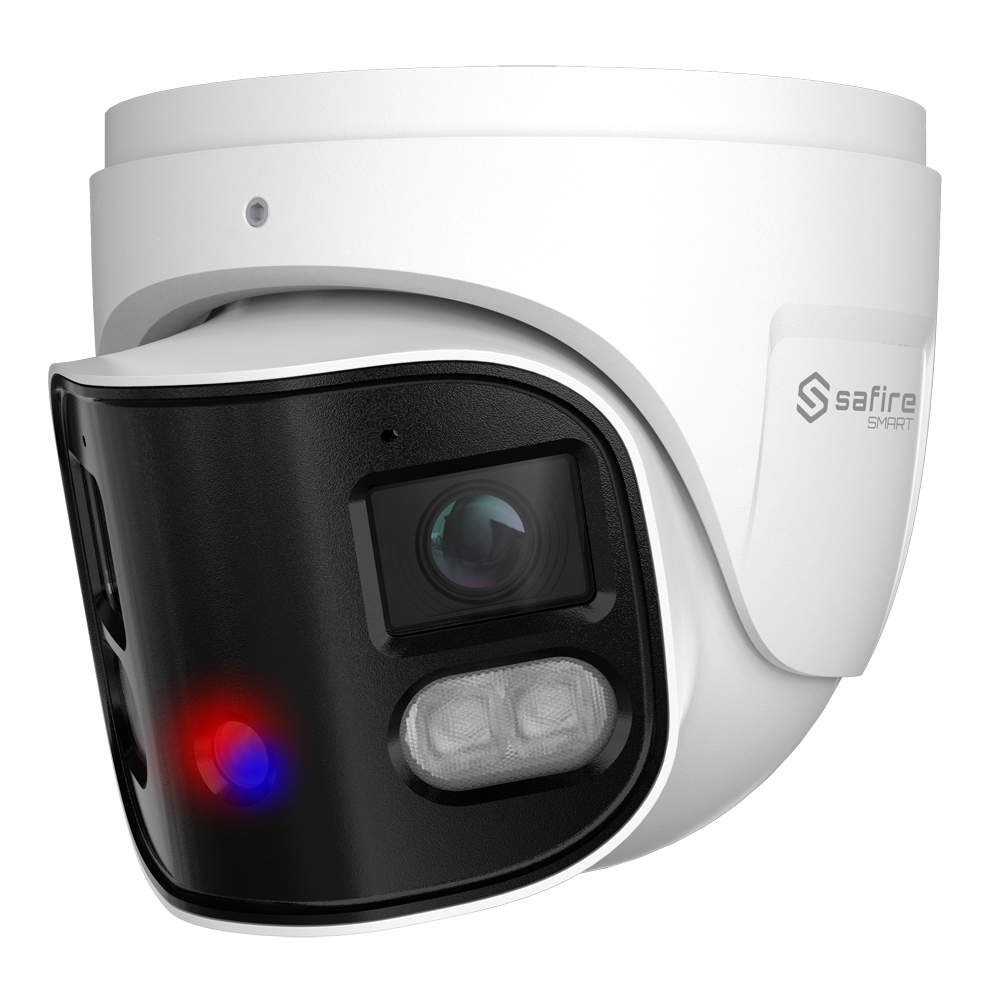

Safire Smart - Turret IP camera range I1 panoramic deterrent camera - Resolution 8 Megapixel (4640x1760) - Lens 2x2.8 mm (180º) | Video Metadata - AI: Classification of human and vehicle - IP66 | PoE.af | Loudspeaker and police flash
SKU: SF-IPT180A-8I1-SL
Ekskl. moms
Safire Smart - Turret IP camera range I1 panoramic deterrent camera - Resolution 8 Megapixel (4640x1760) - Lens 2x2.8 mm (180º) | Video Metadata - AI: Classification of human and vehicle - IP66 | PoE.af | Loudspeaker and police flash
The panoramic camera series of the I1, range offers a true 180º full panoramic image, at a maximum resolution of 8MPx and occupying a single channel on the NVR. In addition, this series features the most advanced artificial intelligence, detecting intrusions by human, vehicle and two-wheeler, along with video metadata to extract all the characteristics of these targets. It also features active deterrence, with the ability to customize a recorded message and activate a flashing police deterrent light.
- Safire Smart
- Range I1 panoramic with Artificial Intelligence
- Turret IP Camera
- 2x 1/2.7" CMOS Progressive Scan
- 8 Megapixel (4640x1760)
- Lens 2x 2.8mm (180º)
- 0 Lux
- White light range 20 m
- Compression H.265+ / H.264+
- WDR
- 3DNR
- Integrated microphone and speaker
- Bidirectional audio
- Alarms
- Advanced Artificial Intelligence: human, vehicle and non-motorized vehicle detection
- Facial Capture
- Video metadata
- Human, vehicle and non-motorized vehicle counts
- Active deterrence with personalized audio message
- WEB, CMS, Smartphone and NVR interface
- ONVIF Compatible
- PoE (IEEE802.3af)
- Weatherproof IP66
| Brand | Safire Smart |
| Range | I1 overview |
| Image sensor | 2x 1/2.7" CMOS Progressive Scan |
| Maximum resolution | 8 Megapixel (4640x1760) (2x 4Mpx); Occupies 1 channel |
| Minimum illumination | Colour: 0.0032Lux @(F1.6, AGC ON), 0 Lux with LED |
| Type of lighting | Dual light |
| Illumination range | IR 30m White led 20m |
| Day/Night | Removable mechanical ICR filter |
| Electronic Shutter | 1/3~1/100.000 s |
| Main Stream rate | 25 FPS (8Mpx, 6Mpx, 5Mpx, 4Mpx, 1080p) |
| Extra Stream rate | 25 FPS (2048x768, 1600x608, 1200x448) |
| Third Stream Rate | 25 FPS (1200x448, 960x368, 640x240) |
| Compression | H.265+, H.264+, H.265, H.264 |
| Bitrate | 64 Kbps ~ 10 Mbps |
| Lens | 2x 2.8 mm |
| Viewing Angle (FOV) | H: 180°, V: 66° |
| Range performance | 60 m (D), 24 m (O), 12 m (R), 6 m (I) |
| Image improvements | DWDR, BLC, HLC, Defog, 3D-DNR, AWB, ROI, ROI, Privacy Mask, ROI |
| Motion Detection | Yes |
| Smart Features | Advanced Artificial Intelligence based classification of human, vehicle and non-motorized vehicle based on: Area Intrusion, Line Crossing, Entry Region, Exit Region Face Detection and Face Capture Counting of people, vehicles and non-motorized vehicles (by line or by area) Heat map Feature extraction: - Human: Up to 13 characteristics - Vehicle: Up to 4 characteristics - Non-motorized vehicle: Up to 1 characteristics Other smart events: Detection of illegal parking, abandoned object, removed object, Loitering detection, Video exceptions (change of scene, loss of video, ...) |
| Active Deterrence | Deterrent loudspeaker with personalized sound message Flash with police light (blue and red) *Triggered by an artificial intelligence event |
| Audio | 2x Microphones 1x Integrated speakerphone 1xEntrada / 1xSalida Bidirectional audio |
| Audio Compression | G711A / U |
| Alarm | 1 Input / 1 Relay |
| Network interface | Ethernet 10 / 100M BaseT |
| Internal memory | MicroSD card up to 256GB |
| Remote access | Web Browser, Smartphone App Safire Smart, PC Software Safire Smart VMS |
| Interoperability | ONVIF |
| Power | DC 12 V / 0.9mA / 9W max. / IEEE802.3af PoE |
| Degree of protection | Weatherproof IP66 |
| Material | Metallic |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | 111.5 (Ø) × 102.2 (H) mm |
| Weight | 719g |
- Safire Smart I1 Panoramic Turret IP Camera
- Installation material
- Installation quick guide
