MARCA BLANCA

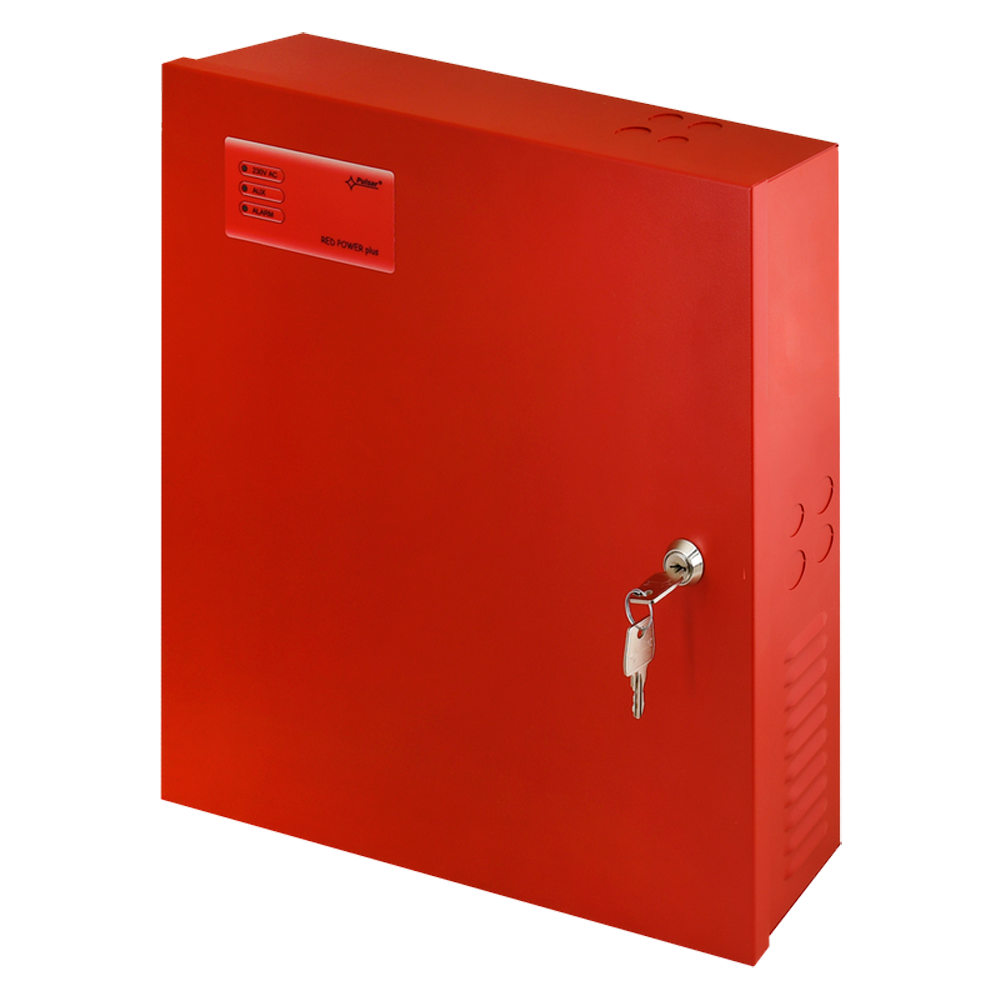

Power supply - Certificate EN54-4 - Output current 4.2A - Up to 5A for 5 minutes - Auxiliary fault outputs - Capacity for 2 12V 17Ah batteries
SKU: PD-5A17-FIRE
340.00 kr
Ekskl. moms
Udsolgt
Power supply - Certificate EN54-4 - Output current 4.2A - Up to 5A for 5 minutes - Auxiliary fault outputs - Capacity for 2 12V 17Ah batteries
Kategori
Power supplies
Mærke
MARCA BLANCA
- Power supply
- Certificate EN54-4
- Output current 4.2A (Maximum output up to 5A for 5 minutes)
- Auxiliary power failure and general fault outputs
- 230V AC operating voltage
- Capacity for 2 12V 17Ah batteries
| Power supply input | 230VAC |
| Output Voltage | 22~27.6VDC |
| Efficiency | 87% |
| Output current | Nominal: 42A Maximum: 5A (5 minutes) Middle charging current: 0.8A |
| Back-up battery | Supports up to 2x12VDC / 17Ah |
| Permitted cable | Up to 2.5mm2 |
| Protections | SCP, OLP, OVP, UVP, tamper - opening of the box |
| Materials | Plate DC01, 1mm, RAL3001 (red), made of metal |
| Closing | Lock (1xMR027, of the same code) |
| Degree of protection of the enclosure | IP30 |
| Dimensions | 385 x 402 x 88 [+/-2 mm]] |
