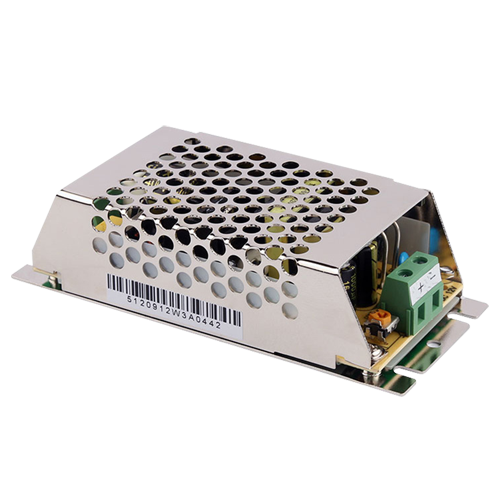

Switching Power Supply - Input AC 100~240 V - DC Output 12 V / 2,5 A (30W) - Adjustable output 11,4~12,6 V - Protected against surges - and current peaks

SKU: PD-30-12

80.62 kr

Ekskl. moms

På lager

Switching Power Supply - Input AC 100~240 V - DC Output 12 V / 2,5 A (30W) - Adjustable output 11,4~12,6 V - Protected against surges - and current peaks

AC/DC switchable power supply. Precise voltage stabilization. Grid casing for better heat dissipation.

Its input is connected directly to the alternating current (AC 100~240 V) and provides continuous DC power 12 V 2,5 A. It has an output. The voltage can be adjusted manually in a range between 11,4 V ~ 12,6 V.

It has protection systems against short circuit, overvoltage and current peaks to ensure a problemless performance of the installation.

Input voltage	AC 100~240 V
Input frequency	47~63 Hz
Output Voltage	DC 12 V (typically)
Output voltage range	Adjustable 11,4 V ~ 12,6 V
Output power	30W
Output current	2,5 A
Working temperature	-10º C ~ +45º C
Dimensions	115 x 50 x 30 mm
Weight	220 g

Power supply DC 12 V 2,5A
