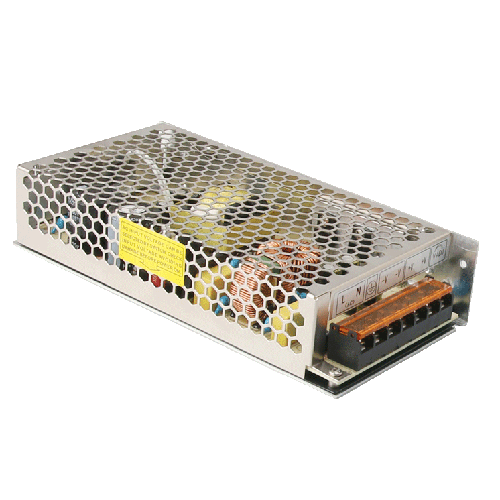

Switching Power Supply - Input AC 100~240 V - DC Output 12 V / 15 A (180W) - Adjustable output 11,5~13,9 V - Protected against surges - and current peaks

SKU: PD-180-12

337.50 kr

Ekskl. moms

På lager

Switching Power Supply - Input AC 100~240 V - DC Output 12 V / 15 A (180W) - Adjustable output 11,5~13,9 V - Protected against surges - and current peaks

AC/DC switchable power supply. Precise voltage stabilization. Grid casing for better heat dissipation.

Its input is connected directly to alternating current (AC 100~240 V) and provides continuous DC power 12 V / 15 A. With two outputs. The voltage can be adjusted manually in a range between 11,5 V ~ 13,9 V.

It has protection systems against short circuit, overvoltage and current peaks to ensure a problemless performance of the installation.

Input voltage	AC 100~240 V
Input frequency	47~63 Hz
Output Voltage	DC 12 V (typically)
Output voltage range	Adjustable 11,5 V ~ 13,9 V
Output power	180W
Output current	15 A
Working temperature	-20º C ~ +55º C
Dimensions	199 x 98 x 42 mm
Weight	580 g

Power Supply DC 12 V / 15 A
