MARCA BLANCA

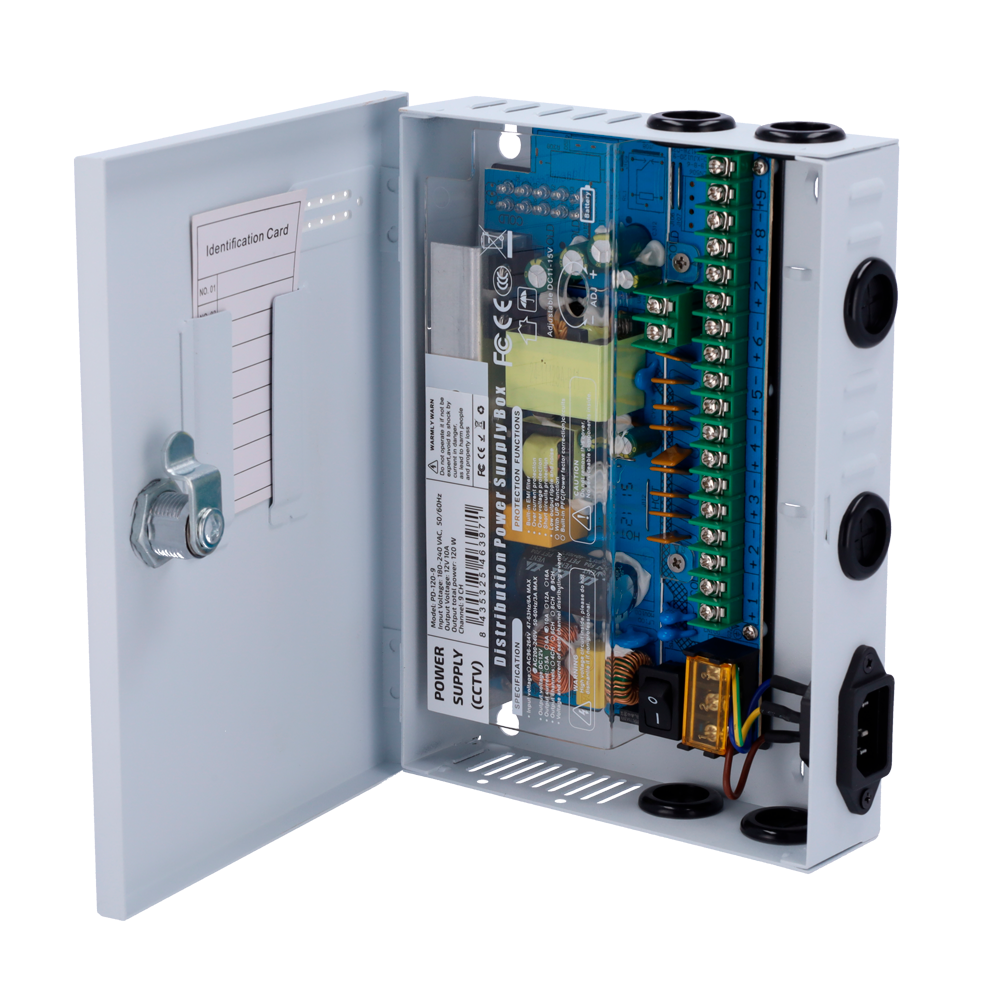

Power supply distribution box - 1 AC input 180-246 V 50-60Hz - 9 outputs - Resettable fuse protection - Output voltage 12 V / 120 W - Metal housing
SKU: PD-120-9-FUSE
468.75 kr
Ekskl. moms
På lager
Power supply distribution box - 1 AC input 180-246 V 50-60Hz - 9 outputs - Resettable fuse protection - Output voltage 12 V / 120 W - Metal housing
Kategori
Fuentes y Alimentadores
Mærke
MARCA BLANCA
- Power supply distribution box
- 1 input AC 180-240 V 50-60 Hz
- 9 copper pair outputs DC 12 V
- Output power 120 W (10 A)
- Individual PTC fuse for each output channel
- Multiple protections
- Protective metallic housing
| Power supply input | AC 180-246 V 50/60 Hz |
| Power supply outputs | 9 outputs via copper pair (clamp) |
| Output voltage | 12VDC |
| Total power | 120 W (10 A) |
| Backup battery | External (7-24 AH) |
| Protection | Short circuit / Over voltage / Current peaks |
| Temp. operation | -25º C ~ +60º C |
| Dimensions | 208 (H) x 152 (W) x 40 (D) mm |
- Power supply distribution box with 9 outputs 12 V
- Safety lock key
- Replacement fuse 10A
- Installation template
- 4 plugs and 4 affix screws
- User instructions
