MARCA BLANCA

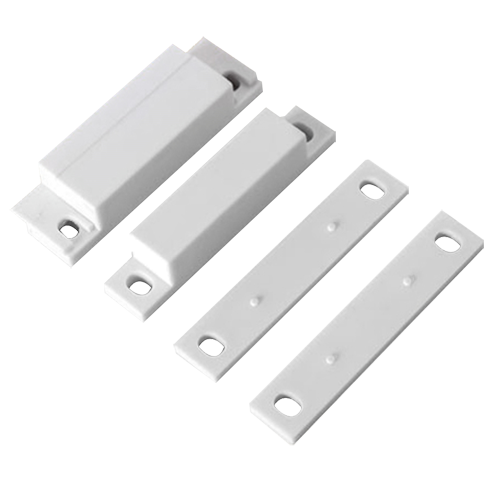

Magnetic contact - Suitable for installation in wood - Reed Technology - Terminal connection system - Resistance to mechanical and electrical shocks
SKU: MC-SWPS
3.00 kr
Ekskl. moms
Udsolgt
Magnetic contact - Suitable for installation in wood - Reed Technology - Terminal connection system - Resistance to mechanical and electrical shocks
Mærke
MARCA BLANCA
- Magnetic surface detector
- Reed Technology
- Suitable for installation in wood
- Resistance to mechanical and electrical shocks
- Terminal connection system
| Technology | Reed |
| Power | Medium power |
| Maximum detection distance | Up to 20mm depending on the material where it is installed |
| Material | Plastic |
| Cable | Connector for 2 cables |
| Magnet | Neodymium |
| Resistance to mechanical shocks | Up to 20KgS |
| Electrical parameters | 100 VDC/VAC max, 500mA, 10W |
| Dimensions | Detector: 63.5 (W) x 13 (H) x 19 (D) mm Magnet: 63.5 (W) x 12.8 (H) x 12 (D) mm |
- Magnetic contact
- User instructions
