MARCA BLANCA

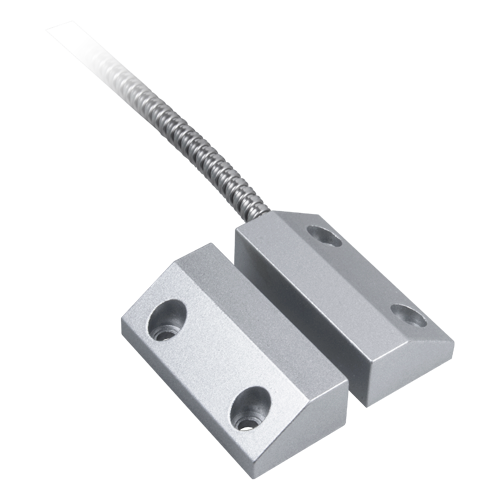

Magnetic contact - Suitable for metal installation - Reed technology High power - Connection system of 2 wires protected by metal mesh - Resistance to mechanical and electrical shocks
SKU: MC-SMMC-A2
9.00 kr
Ekskl. moms
Udsolgt
Magnetic contact - Suitable for metal installation - Reed technology High power - Connection system of 2 wires protected by metal mesh - Resistance to mechanical and electrical shocks
Mærke
MARCA BLANCA
- Magnetic surface detector
- Reed Technology
- High power
- Suitable for metal installation
- Resistance to mechanical and electrical shocks
- System of 2 wires protected by metal mesh
| Technology | Reed |
| Power | High power |
| Maximum detection distance | Up to 40mm depending on the material where it is installed |
| Material | Metallic |
| Cable | 2 wires protected by metal mesh |
| Wire mesh length | 38 cm |
| Cable length | 55 cm |
| Magnet | Neodymium |
| Resistance to mechanical shocks | Up to 15KgS |
| Electrical parameters | 100 VDC/VAC max, 500mA, 10W |
| Dimensions | Detector: 48 (W) x 24.2 (H) x 15 (D) mm Magnet: 48 (W) x 24.2 (H) x 15 (D) mm |
- Magnetic contact
- User instructions
