MARCA BLANCA

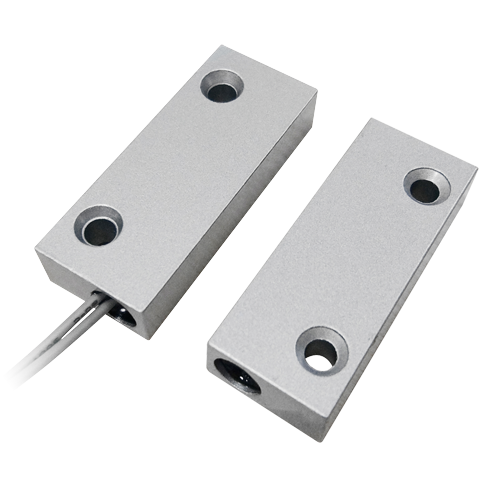

Magnetic contact - Suitable for metal installation - Reed technology High power - 2-wire connection system - Resistance to mechanical and electrical shocks
SKU: MC-SMMC
10.00 kr
Ekskl. moms
Udsolgt
Magnetic contact - Suitable for metal installation - Reed technology High power - 2-wire connection system - Resistance to mechanical and electrical shocks
Mærke
MARCA BLANCA
- Magnetic surface detector
- Reed Technology
- High power
- Suitable for metal installation
- Resistance to mechanical and electrical shocks
- 2-wire system
| Technology | Reed |
| Power | High power |
| Maximum detection distance | Up to 30mm depending on the material where it is installed |
| Material | Metallic |
| Cable | 2 wires |
| Cable length | 35 cm |
| Magnet | Neodymium |
| Resistance to mechanical shocks | Up to 15KgS |
| Electrical parameters | 100 VDC/VAC max, 500mA, 10W |
| Dimensions | Detector: 49 (W) x 9.6 (H) x 20 (D) mm Magnet: 49 (W) x 9.6 (H) x 20 (D) mm |
- Magnetic contact
- User instructions
