MARCA BLANCA

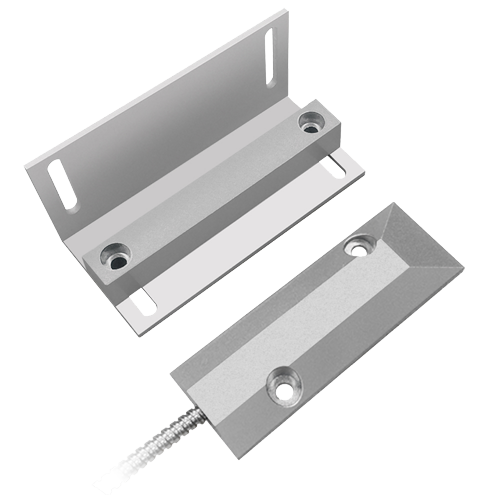

Magnetic contact - Suitable for metal installation - Reed technology High power - 2-wire connection system - Resistance to mechanical and electrical shocks - L-Installation Bracket
SKU: MC-RMMC-L
12.00 kr
Ekskl. moms
Udsolgt
Magnetic contact - Suitable for metal installation - Reed technology High power - 2-wire connection system - Resistance to mechanical and electrical shocks - L-Installation Bracket
Mærke
MARCA BLANCA
- Magnetic contact for shutters and metallic doors
- Reed Technology
- High power
- Suitable for metal installation
- L-Installation Bracket
- Resistance to mechanical and electrical shocks
- 2-wire system
| Technology | Reed |
| Type of contact | NC |
| Power | High power |
| Maximum detection distance | Up to 50mm depending on the material where it is installed |
| Material | Metallic |
| Cable | 2 wires protected by metal mesh |
| Wire mesh length | 38 cm |
| Cable length | 55 cm |
| Magnet | Neodymium |
| Resistance to mechanical shocks | Up to 19KgS |
| Electrical parameters | 100 VDC/VAC max, 500mA, 10W |
| Dimensions | Detector: 106 (W) x 10 (H) x 38 (D) mm Magnet: 106 (W) x 16 (H) x 16 (D) mm |
- Magnetic contact
- L-mount installation bracket
- User instructions
