MARCA BLANCA

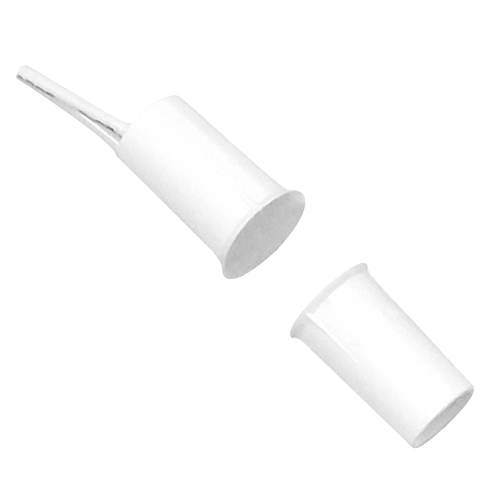

Magnetic contact - Suitable for installation in wood - Reed Technology - 2-wire connection system - Resistance to mechanical and electrical shocks
SKU: MC-EWPC
2.40 kr
Ekskl. moms
Udsolgt
Magnetic contact - Suitable for installation in wood - Reed Technology - 2-wire connection system - Resistance to mechanical and electrical shocks
Mærke
MARCA BLANCA
- Recessed magnetic detector
- Reed Technology
- Suitable for installation in wood
- Resistance to mechanical and electrical shocks
- 2-wire connection system
| Technology | Reed |
| Power | Medium power |
| Type of contact | Normally closed |
| Maximum detection distance | Up to 15mm depending on the material where it is installed |
| Material | Plastic |
| Cable | 2 wires |
| Cable length | 35 cm |
| Magnet | Neodymium |
| Resistance to mechanical shocks | Up to 15KgS |
| Electrical parameters | 100 VDC/VAC max, 500mA, 10W |
| Dimensions | Detector: 17 x Ø11-9 mm Magnet: 17 x Ø11-9 mm |
- Magnetic contact
- User instructions
