MARCA BLANCA

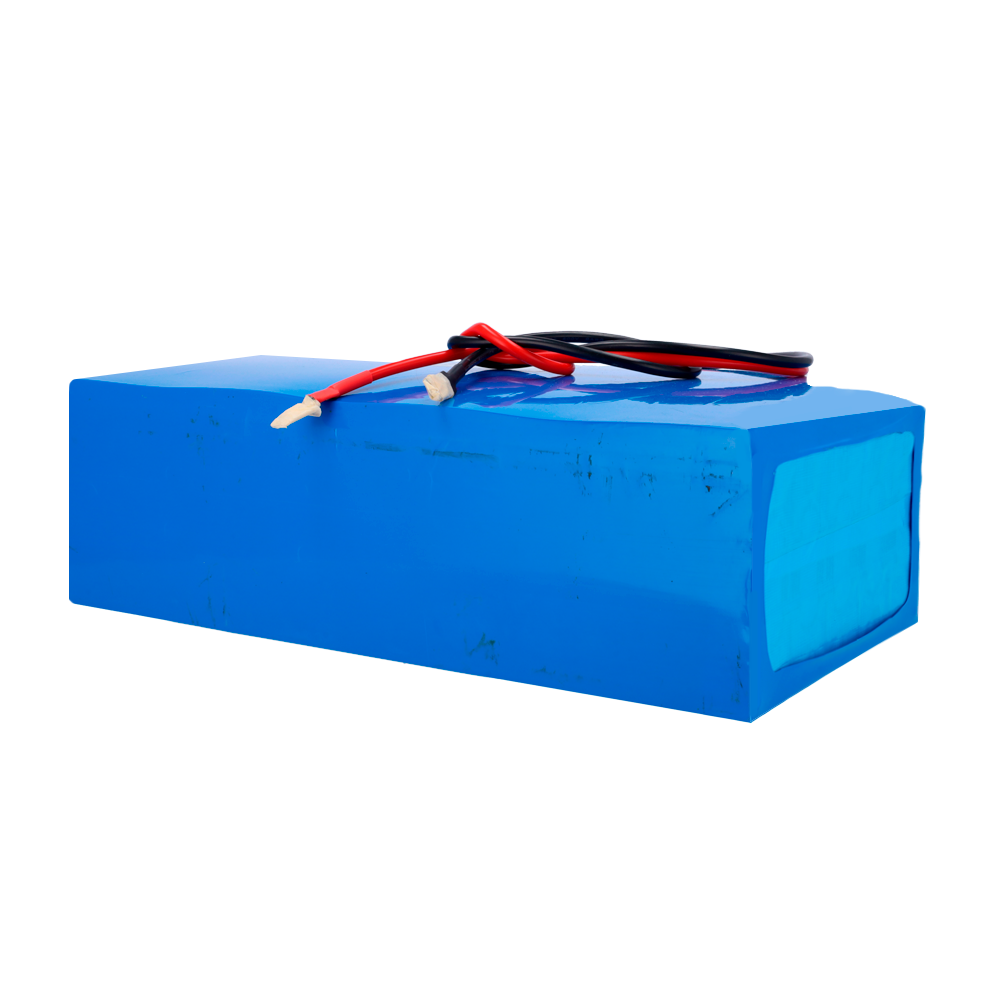

High capacity lithium battery - Voltage 48 V - Current 50 A - Integrated MPPT regulator - Compatible with Safire smart cabinets
SKU: GE-48V50A-LT
5.883.00 kr
Ekskl. moms
På lager
High capacity lithium battery - Voltage 48 V - Current 50 A - Integrated MPPT regulator - Compatible with Safire smart cabinets
Kategori
Baterías y Pilas
Mærke
MARCA BLANCA
High capacity lithium battery 48 volts 50 amperes compatible with smart cabinets to provide service in situations where power supply is not possible at certain times of the day or with the use of solar panels. 60 volt plate recommended for charging or two 30 volt plates in series.
- High capacity lithium battery
- 48 volts 50 amps
- Integrated MPPT
- Compatible with smart cabinets
| Battery type | LiFePO4 |
| Nominal voltage | 48V |
| Rated current | 100 A |
| Nominal energy | 2.4kWh - 50Ah |
| Coating material | PVC |
| Resistance | ≤30 mΩ @ 50% SOC |
| Current volumetric efficiency | ≥100% Rated power |
| Recommended charging current | ≥20A |
| Maximum continuous discharge current | ≥20A |
| Maximum recommended load power | ≥2kW |
| Maximum charge current | 50A |
| Maximum peak load power | ≥2.5KW |
| Recommended charging voltage | 57.6V |
| BMS Load Breakdown Voltage | 58.4V |
| BMS Load Break Release Voltage | 54.75V |
| Voltage balancing | ≥52.8V |
| Open voltage balance | ≥52.8V |
| Recommended low-voltage disconnection | ≤45V |
| BMS discharge cut-off voltage | 37.5V |
| Discharge cut-off release voltage BMS | ≥46V |
| Discharge temperature | -20 ~ 60 ºC |
| Charging temperature | 0 ~ 50 ºC |
| Storing temperature | -20 ~ 55 ºC |
| High temperature cutting BMS | 65 ºC |
| Reconnection temperature | 55 ºC |
| Dimensions | 458 x 155 x 145mm |
| Weight | ≈19KG |
| Protection | IP 54 |
| Certified | UN38.3 |
| Shipping classification | UN 3480 |
| Life Cycles | 3000 cycles (25 ℃, 100 % DOD) for effectively lower total cost of ownership |
| Expansion capacity | Up to 4 units in parallel (9.6Kwh) |
| Lifetime | 8 Approx. years (with use as indicated by the manufacturer and correct charging cycles) |
| Electrical protections | - Overvoltage - Overload - Overload - Overcurrent - Short |
