SECURITON
SECURITON - Max range. 200m - Max. opening. 15m - Transmitter/receiver system - Requires controller element CSRLS-2 or CLI - Standards EN 54/12, 54/17 and 54/18
SKU: ERHS0712-PRO
17.625.00 kr
Ekskl. moms
På lager
SECURITON - Max range. 200m - Max. opening. 15m - Transmitter/receiver system - Requires controller element CSRLS-2 or CLI - Standards EN 54/12, 54/17 and 54/18
Kategori
Barreras IR
Mærke
SECURITON
ERHS0712-PRO uses two infrared beams (Dual Wave technology) and therefore tolerates building movements. Specifically, the transmitter sends two infrared beams that are detected by the receiver. being able to detect both smoke and flame fires i98ncluso in their initial phase.
The ERHS0712-PRO detectors are robust and manufactured with industrial quality, for all types of environments regardless of their difficulty
Requires controller element CSRLS-2 or CLI
- SECURITON
- Range 200m
- Opening 15m
- Transmitter/receiver system
- Requires controller element CSRLS-2 or CLI
- Highly contaminated environments
- IP 65
- Standards EN 54/12, 54/17 and 54/18
- Nano-coated lens
| Certification / Approvals | VdS, UL, ActivFire, EAC, SIL, EN 54/12, 54/17 and 54/18 |
| Coverage distance | 10–200 m |
| Scope of application | Dusty industrial buildings, recycling, etc |
| Configuration | control unit CSRLS-2 or CLI |
| Detectors can be connected by control unit | 8 |
| Networking technology | RS-485 with max. 1200 m of cable |
| Relay | 2 (alarm, failure by detector) 8 (alarm, failure by detector) [%VAR%] |
| Power | 19,2–28,8 VDC |
| Consumption | CSRLS (1 detector/8 detectors) 50 mA / 270 mA CLI (1 detector/8 detectors) 150 mA / 350 mA |
| Dimensions | 162 x 145 x 193 mm |
| Weight | Tx Unit 0,735 Kg Rx Unit 0,775 Kg |
| Degree of protection | IP 65 |
| Temperature range | from –20 to +65 °C |

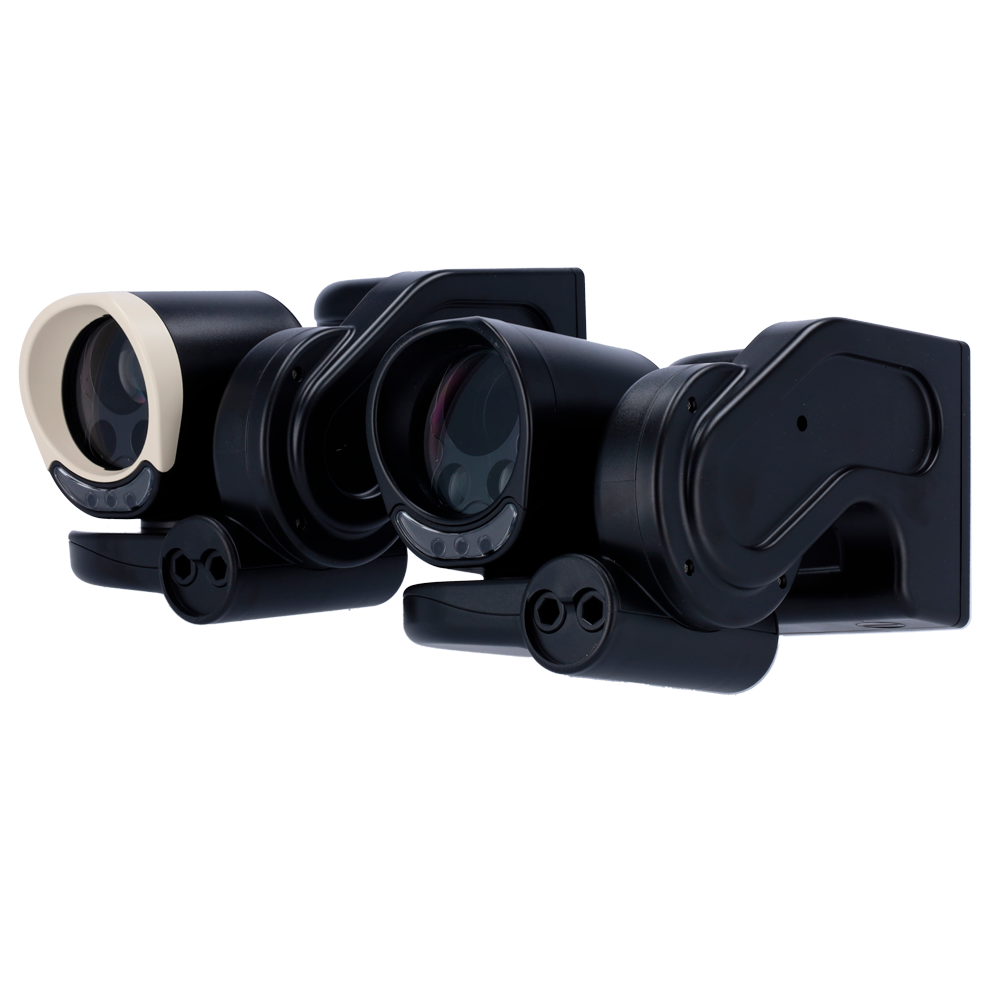

- transmitter and receiver ERHS0712-PRO
