Data acquisition and control module - 8 digital inputs | 8 relay outputs (NO/NC) - Protocols: Modbus/TCP, TCP/IP, UDP, HTTP,... - Integrated web server - Ethernet Port 10/100 Base-TX | WiFi Port - Power supply not included (12VDC/1A)

SKU: DT-R008

74.00 kr

Ekskl. moms

Udsolgt

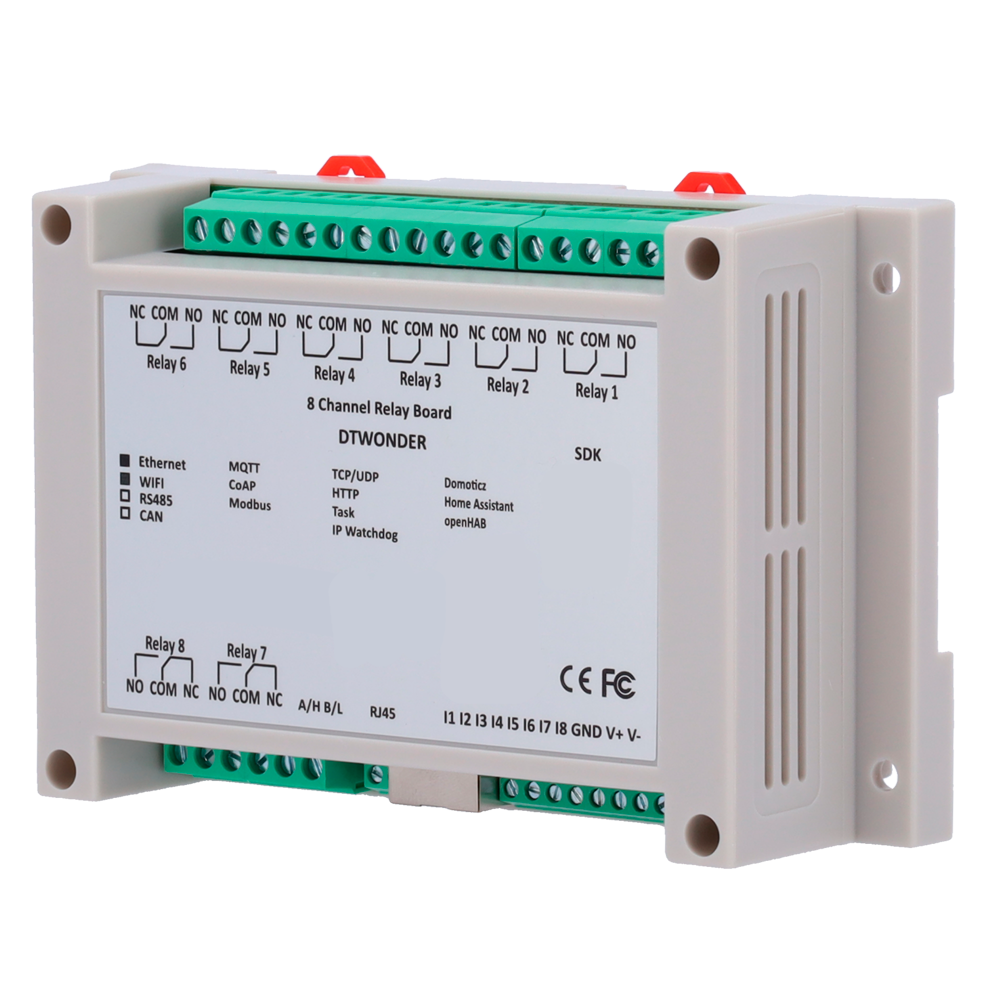

Data Acquisition and Control Module (DA&C)
8 digital inputs and 8 relay outputs
LED indicator
Protocols: Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT
Integrated web server
Watchdog function for system recovery
AND logic operations between inputs and outputs (from version V3.1.5406))
1 Ethernet port 10/100 Base-TX
1 WiFi port

Inputs	8 Digital
Outputs	8 relays
Protocols	Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP
Communication	1 Port 10/100 Base-TX 1 WiFi port
Watchdog	System: Programmable Communication: Programmable
Special functions	AND logic operations between inputs and outputs (from version V3.1.5406))
Connectors	Plug-in / screw-tightening connectors
Dimensions	87x122x27mm
Temperature	Functioning: -10~85ºC
Power	12VDC-24VDC 12VAC-24VAC
Current	1.5A@12VDC
Consumption	5W

Module
Installation material
Instructions
