MARCA BLANCA

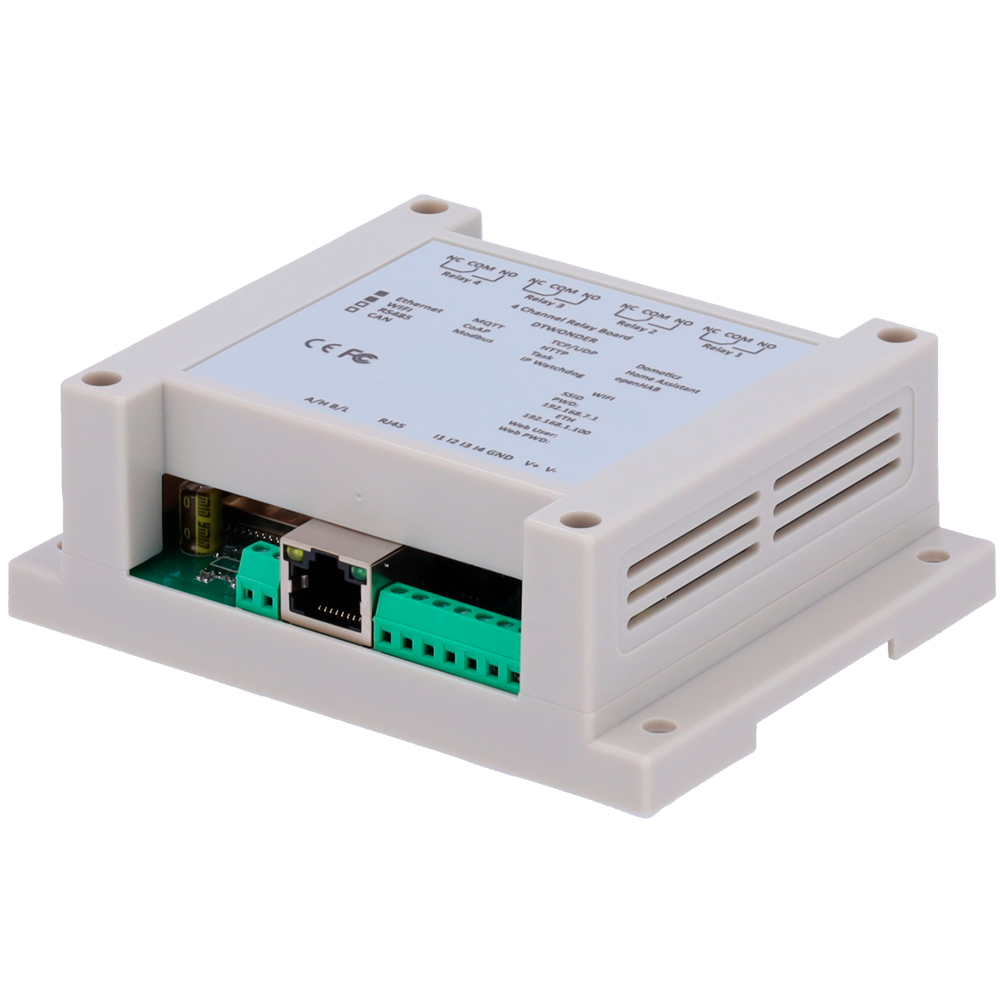

Data acquisition and control module - 4 digital inputs | 4 relay outputs (NO/NC) - Protocols: Modbus/TCP, TCP/IP, UDP, HTTP,... - Integrated web server - Ethernet Port 10/100 Base-TX | WiFi Port - Power supply not included (12VDC/1A)
SKU: DT-R004
55.02 kr
Ekskl. moms
Udsolgt
Data acquisition and control module - 4 digital inputs | 4 relay outputs (NO/NC) - Protocols: Modbus/TCP, TCP/IP, UDP, HTTP,... - Integrated web server - Ethernet Port 10/100 Base-TX | WiFi Port - Power supply not included (12VDC/1A)
Kategori
Relay
Mærke
MARCA BLANCA
- Data Acquisition and Control Module (DA&C)
- 4 digital inputs and 4 relay outputs
- LED indicator
- Protocols: Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT
- Integrated web server
- Watchdog function for system recovery
- AND logic operations between inputs and outputs (from version V3.1.5406))
- 1 Ethernet port 10/100 Base-TX
- 1 WiFi port
| Inputs | 4 digital |
| Outputs | 4 relays |
| Protocols | Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP |
| Communication | 1 Port 10/100 Base-TX 1 WiFi port |
| Watchdog | System: Programmable Communication: Programmable |
| Special functions | AND logic operations between inputs and outputs (from version V3.1.5406)) |
| Connectors | Plug-in / screw-tightening connectors |
| Dimensions | 91,6 x 86,4 x 27mm |
| Temperature | Functioning: -10~85ºC |
| Power | 12VDC-24VDC 12VAC-24VAC |
| Current | 1.5A@12VDC |
| Consumption | 3W |
- Module
- Installation material
- Instructions
