MARCA BLANCA

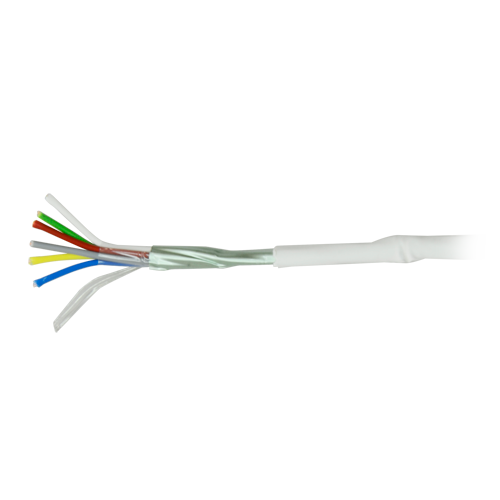

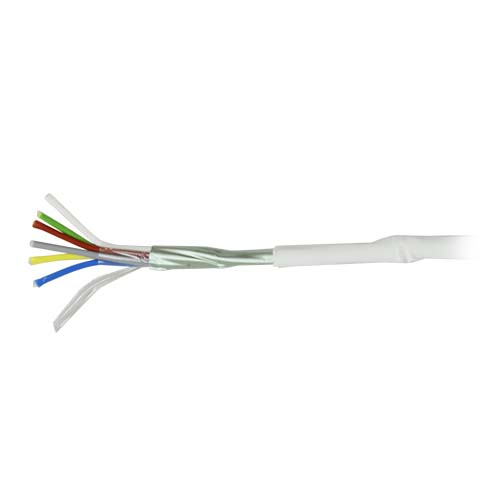

6 conductors - Flexible electrolytic Copper conductor - CuSn Aluminium polyester screen + drain - Bobbin of 100 meters - CPR Certificate: B2ca -s1a, d0, a1 - Low loss
SKU: CA6-100-H
543.75 kr
Ekskl. moms
På lager
6 conductors - Flexible electrolytic Copper conductor - CuSn Aluminium polyester screen + drain - Bobbin of 100 meters - CPR Certificate: B2ca -s1a, d0, a1 - Low loss
Kategori
Cables
Mærke
MARCA BLANCA
- Bobbin of cable
- 100 m
- Alarm
- 6 conductors
- Inner conductor Flexible electrolytic copper 0,22 mm2
- PE isolation
- CuSn Aluminium polyester screen + drain
- Polyolefin cover FRLSHF 4.1 mm
- CPR Certificate: B2ca -s1a, d0, a1
- Certified EN 50575
- Halogen free
| Length | 100 m |
| Interior conductor | Flexible electrolytic copper AWG24 0,22 mm2 |
| Isolation | Polyethylene |
| Formation of the wires | Twisted |
| Screen | Aluminum polyester + CuSn drain |
| External cover | Polyolefin LSHO |
| Number of conductors | 6 signal |
| Conductivity | <10μS/mm |
| Resistance | 106 Ohm/km signal |
| Temp. operation | 0º C ~ 70º C |
| Certification | CPR (B2ca -s1a, d0, a1), UNE EN 50575, UNE EN 60332-1-2, UNE EN 50399, UNE EN 61034-2, UNE EN 60754-2 |
| Colour | White |
- Bobbin of cable
