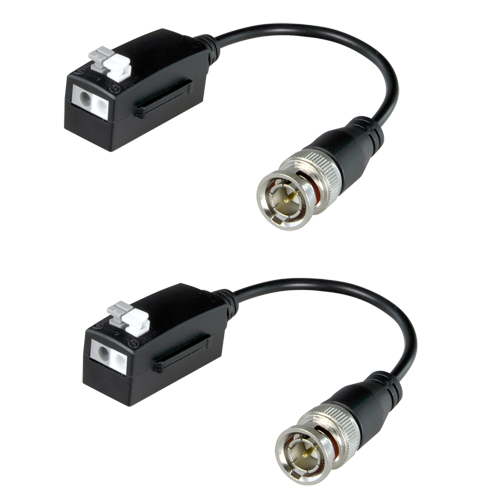

SAFIRE UTP passive transceiver - Optimised for HDTVI, HDCVI and AHD - 1 video channel - Passive, connector of 2 pins - Range: 200 m - 2 units

Passive video transceiver over twisted pair, 2 units for transmission and reception, specific for analogue high definition (HD).

Optimized for video signal transmission of 1 High definition HDTVI analog camera. It has BNC male connector and cable insertion terminal by pressure, two-pin connector.

The maximum length between the end that connects to the camera and the end that connects to the video output is :

• HDTVI 720p - 200 m
• HDTVI 1080p - 200 m
• HDCVI 720p - 400 m
• HDCVI 1080p - 200 m
• AHD 720p - 300 m
• AHD 1080p - 200 m
• HDTVI 4 MP 200 m
• HDCVI 4 MP 200 m
• HDTVI 4K 200 m
• HDCVI 4K 200 m

Brand	NO
Number of channels	1 channel
Power supply	Not required (Passive)
Video Input/Output	BNC (male)
Transmission distance	HDTVI 200/200/200/200 m (720p/1080p/4 Mpx/4K), HDCVI 400/200/200/200 m (720p/1080p/4 Mpx/4K) AHD 300/200/200 m (720p/1080p/4 Mpx), CVBS 300 m
Twisted pair connector	Two pin connector
Crosstalk	60 dB
Input impedance	75 Ohm
Output Impedance	100 Ohm
Cable category	UTP category 5/6

- Pair of passive HD tranceivers
