ZKTECO
Access reader - Access by EM card and MF DESFire - LED and acoustic indicator - Wiegand 34/66 | RS485 - Compatible with ZKTeco controllers - Suitable for exterior IP65
SKU: ZK-ER-KR903-ZK
468.75 kr
Ekskl. moms
Udsolgt
Access reader - Access by EM card and MF DESFire - LED and acoustic indicator - Wiegand 34/66 | RS485 - Compatible with ZKTeco controllers - Suitable for exterior IP65
An access reader is used to identify users who want to access a system protected by an access controller. Transmits the credential information, with the controller deciding how to proceed.
This reader allows identification through cards or key fobs with RFID EM technology of 125 kHz, MF of 13.56 MHz and MF DESFire of 13.56 MHz.
The connection to the controllers is made through Wiegand or RS485. These protocols allow a secure connection in the outdoor installation with their IP65 grade.
- ZKTeco
- Access reader for controller
- Access by EM card and MF DESFire
- LED indicator
- Wiegand 34/66 and RS485
- Suitable for exterior IP65
- Compatible with ZK-C3 PRO, ZK-INBIO PRO and ATLAS Series controllers
| Brand | ZKTeco |
| Model | ACC-ER-KR903-ZK |
| Card reading distance | < 4 cm |
| Identification modes | Card (RFID EM 125 kHz and MF DESFire 13.56MHz)) |
| Outputs | RS485, Wiegand 34/66, buzzer for status indication, tamper |
| Compatibility | ZKTeco ZK-C3 PRO, ZK-INBIO PRO and ATLAS Series Controllers |
| Power | DC 9 - 12 V / 200 mA max. |
| Material | ABS |
| Degree of protection | Suitable for exterior IP65 |
| Temp. operation | -20 ºC ~ +60 ºC |
| Dimensions | 86 (H) x 86 (W) x 16 (D) mm |
| Weight | 140 g |
- ZKTeco card reader

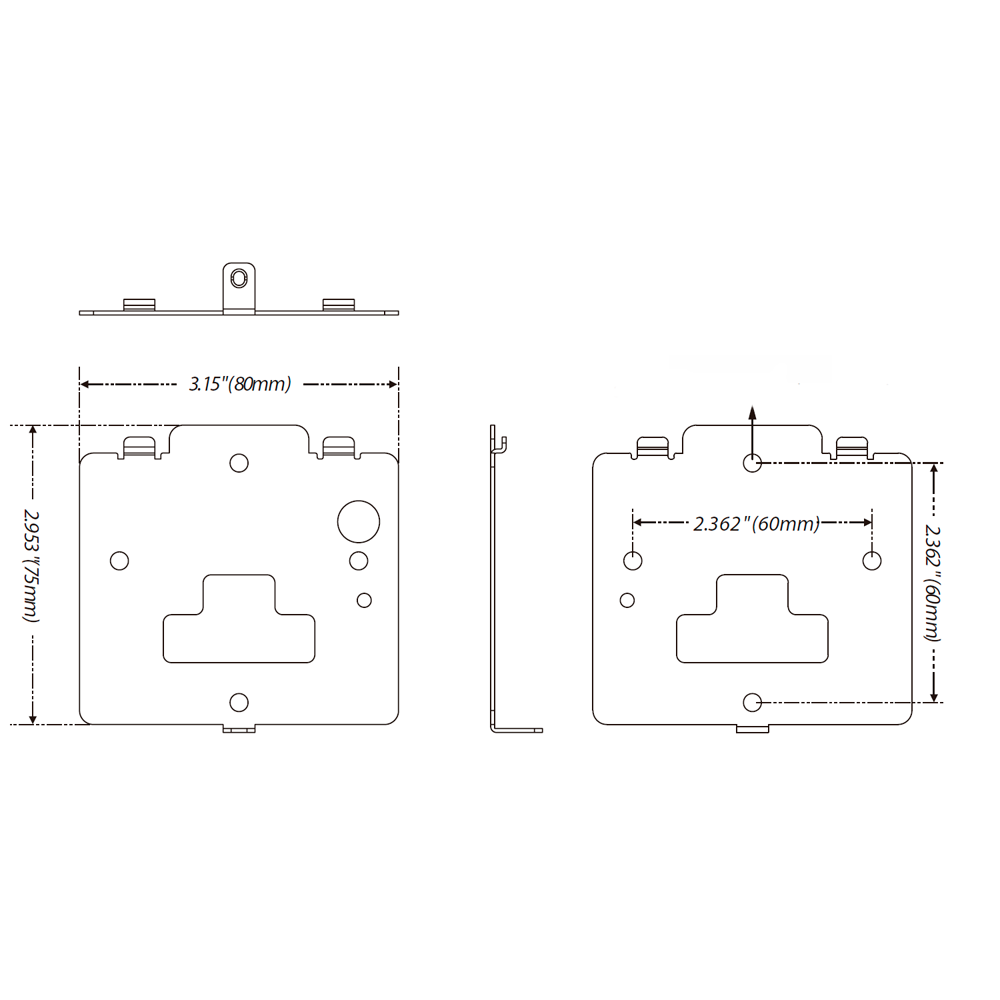

- Mounting material
