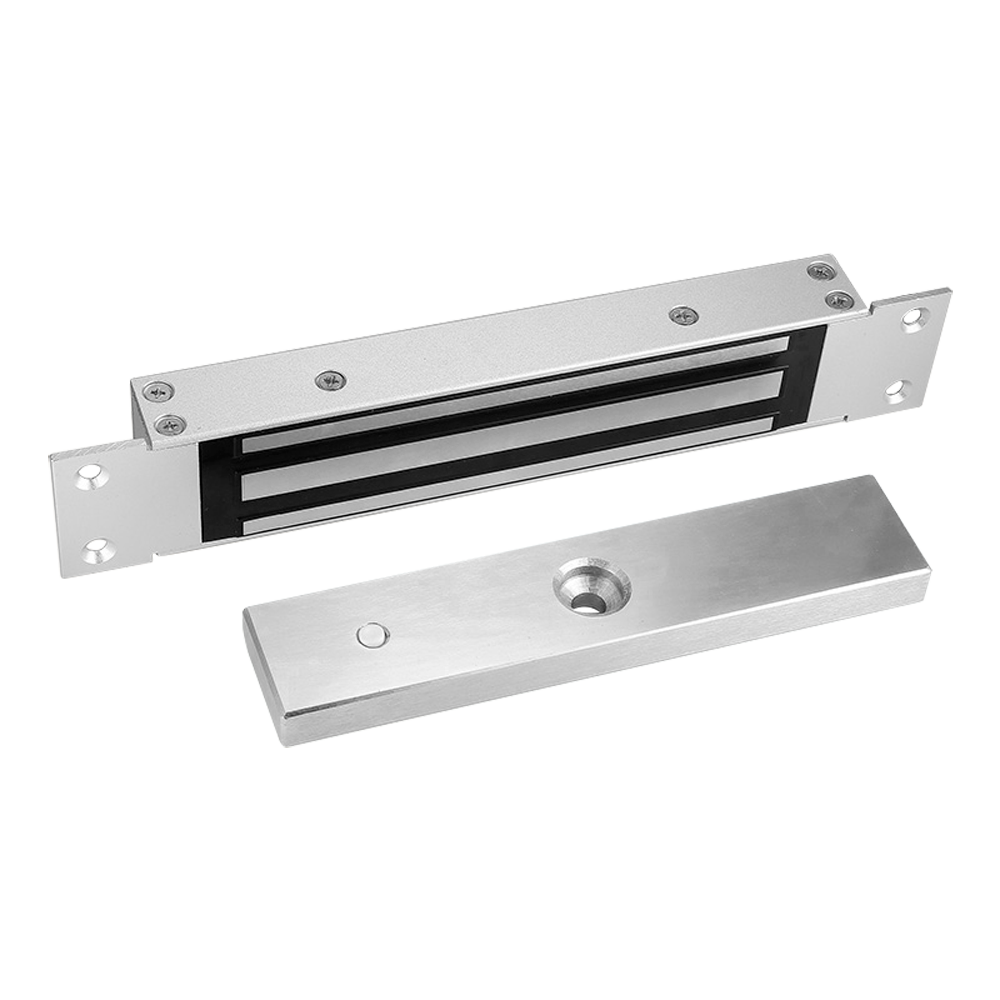

Electromagnetic suction cup - For single doors - Holding force 500 kg - Fail Safe (NC) opening mode - Flush mounting - Status sensor
SKU: YF-500CS
92.00 kr
Ekskl. moms
Udsolgt
Electromagnetic suction cup - For single doors - Holding force 500 kg - Fail Safe (NC) opening mode - Flush mounting - Status sensor
Kategori
Magnetic locks
Mærke
YLI
- Electromagnetic lock for single doors
- Fail Safe functionality / Inverted (NC)
- Linear load resistance 500 kg
- NO/NC/COM contact output for door lock status
- Recessed installation
- Made of aluminum
| Model | YF-500CS |
| Door type | Simple: 1 folding sheet |
| Opening mode | Fail Safe / Inverted (NC) |
| Retention force | 500 kg |
| Signaling | NO/NC/COM contact output for door block status |
| Power | DC 12 V / 660 mA máx. o DC 24 V / 330 mA max. |
| Mounting | Built-in |
| Protection | Interior |
| Material | Aluminium |
| Temp. operating | -10 ºC ~ +55 ºC |
| Dimensions | Maglock: 265 (W) x 75 (H) x 39 (D) mm Counterplate: 180 (W) x 38 (H) x 13 (D) mm |
- Electromagnetic lock
- Magnetisation plate
- Installation material
- User instructions
