YLI

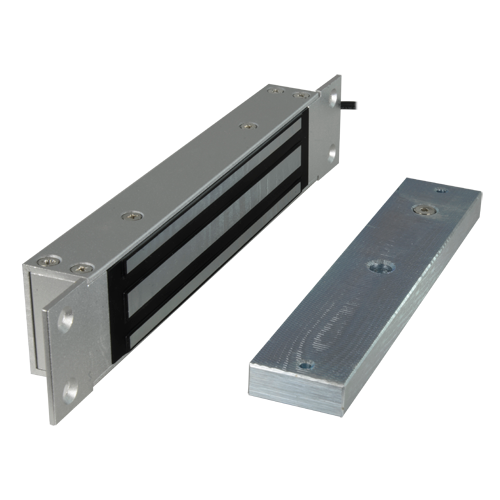

Electromagnetic door lock - For single doors - Holding force 280 kg - Fail Safe (NC) opening mode - Flush mounted
SKU: YF-280CA
42.00 kr
Ekskl. moms
Udsolgt
Electromagnetic door lock - For single doors - Holding force 280 kg - Fail Safe (NC) opening mode - Flush mounted
Kategori
Magnetic locks
Mærke
YLI
- Electromagnetic lock for single doors
- Fail Safe functionality / Inverted (NC)
- Linear load resistance 280 kg
- Recessed installation
- Made of aluminum
| Model | YF-280CA |
| Door type | Simple: 1 folding sheet |
| Opening mode | Fail Safe / Inverted (NC) |
| Retention force | 280 kg |
| Power | DC 12 V / 520 mA máx. o DC 24 V / 260 mA max. |
| Mounting | Built-in |
| Protection | Interior |
| Material | Aluminium |
| Temp. operating | -10 ºC ~ +55 ºC |
| Dimensions | Maglock: 250 (W) x 43 (H) x 28 (D) mm Counterplate: 180 (W) x 38 (H) x 13 (D) mm |
- Electromagnetic lock
- Magnetisation plate
- Installation material
- User instructions
