YLI
Electromechanical safety lock - Fail Safe (NC) opening mode - Holding force 1000 kg | Door sensor - Programmable self-closing - Selectable opening time - Stainless steel SUS304
SKU: YB-500IN-LED
637.50 kr
Ekskl. moms
Udsolgt
Electromechanical safety lock - Fail Safe (NC) opening mode - Holding force 1000 kg | Door sensor - Programmable self-closing - Selectable opening time - Stainless steel SUS304
Kategori
Electric locks
Mærke
YLI
- Electromechanical piston security lock
- NC operation (Fail Safe)
- Timer with adjustable delay
- Door sensor
- Applicable in firefighting systems
- Mounting on wood, metal, glass and RF doors
- Suitable for narrow doors
- Made of stainless steel SUS304
- 12 VDC
| Mounting | Surface |
| Opening mode | Fail Safe (NC) |
| Locking delay time | 0, 3, 6 y 9 seconds |
| Retention force | 1000 kg |
| Power | DC 12 V / 960 mA máx. (start) / 180 mA max. (rest) |
| Open sensor | LED indicator and door indicator output (integrated in socket) |
| Entrance profile | Narrow 26mm |

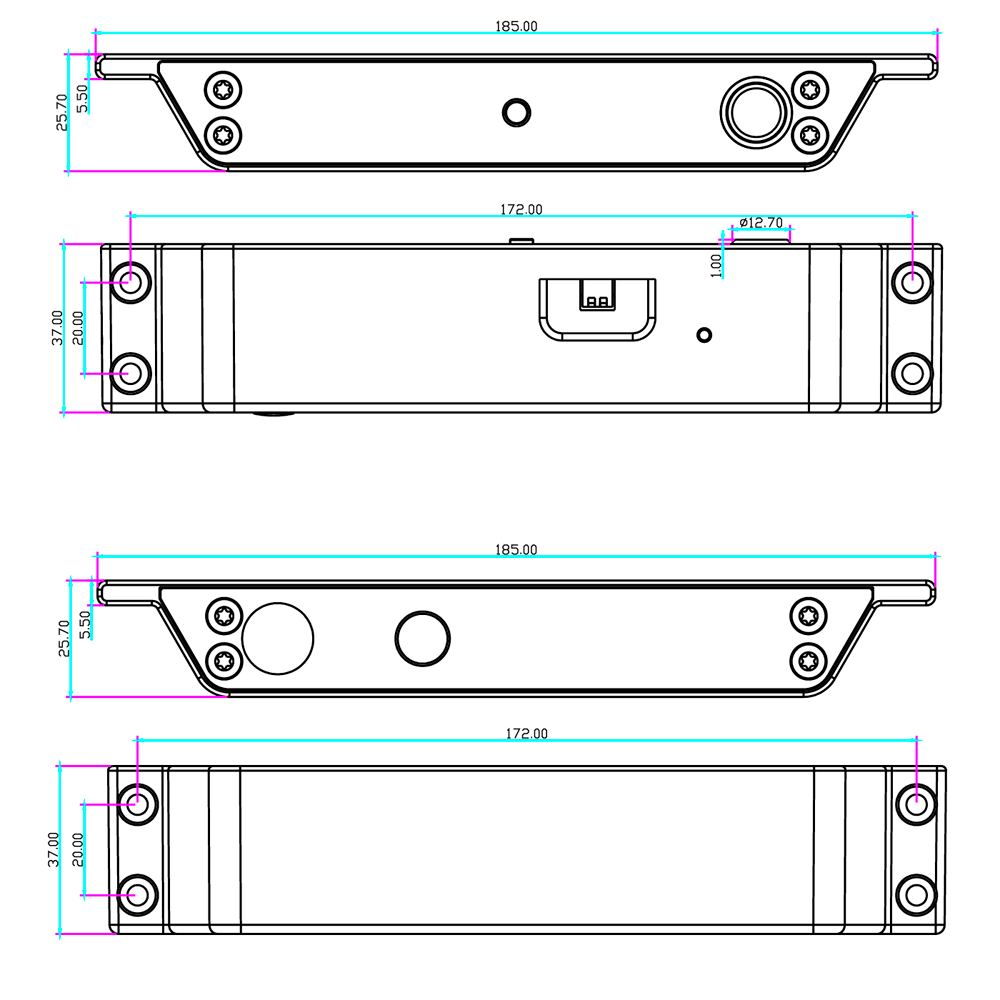

| Plate dimensions | 185 (H) x 26 (W) x 37 (D) mm |
| Dimensions | 185 (H) x 26 (W) x 37 (D) mm |
| Temperature | -40º C ~ +60º C |
| Weight | 1.2 kg |
| Range | EasyAccess |
- Lock
- Electromagnetic strike with sensor
- Installation material (covers, hardware, jigs)
- User instructions
