YALE

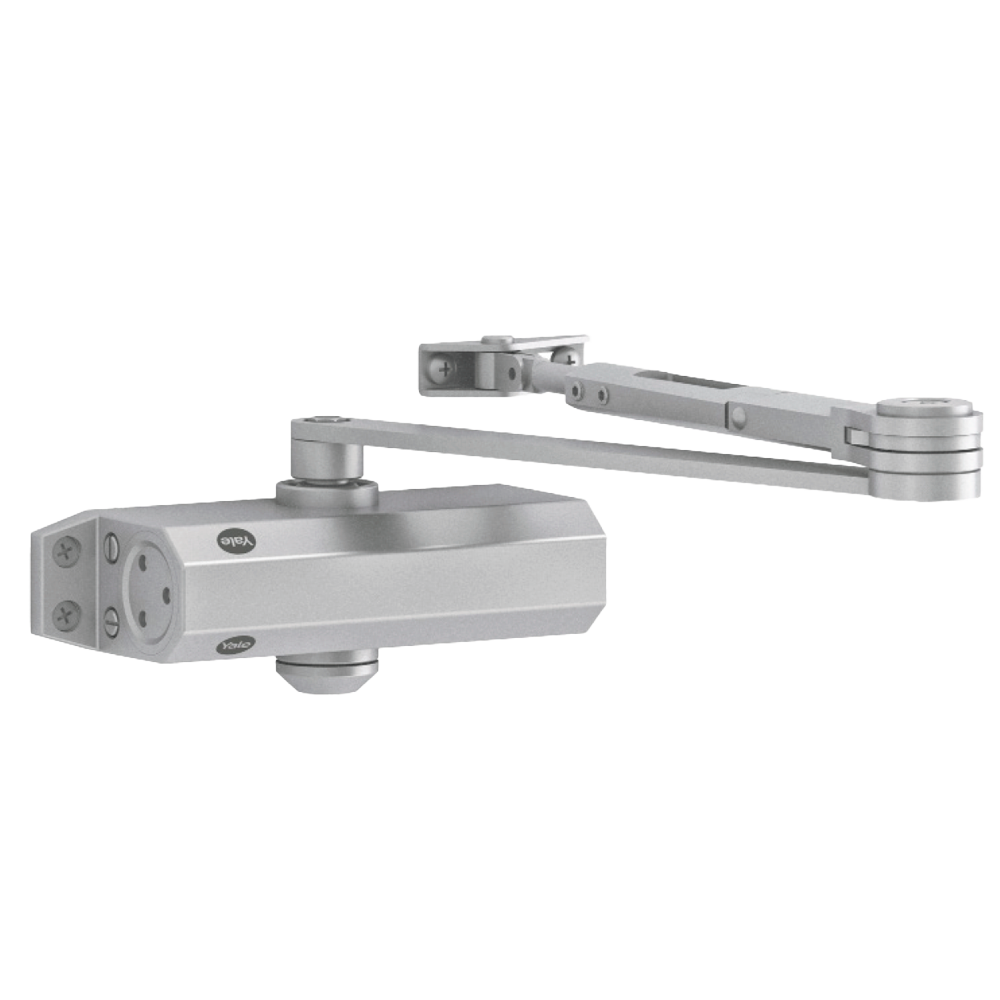

Articulated arm door closer - Surface and reversible installation - Opening with reduced force - Doors of 80 kg and 1100 mm max - Adjustable speed - For all types of doors
SKU: YALE-DOORCLOSER-3500-RET
58.00 kr
Ekskl. moms
Udsolgt
Articulated arm door closer - Surface and reversible installation - Opening with reduced force - Doors of 80 kg and 1100 mm max - Adjustable speed - For all types of doors
Kategori
Door closers and springs
Mærke
YALE
- Yale
- Hinged arm door closer with hold-open system
- Door opening with reduced force
- Surface and reversible installation
- Suitable for all types of doors, including RF
- For doors with maximum weight 80 kg
- For doors with maximum width of 1100 mm
- Maximum opening 180°
- Two adjustable closing speeds
- More than 500.000 usage cycles
- Silver color
| Brand | Yale |
| Model | YALE-DOORCLOSER-3500-RET |
| Installation | Surface mounted and reversible (for right or left closing) |
| Door type | All types of doors, including RF doors |
| Door width | Maximum 1100 mm |
| Door weight | Maximum 80 kg |
| Maximum opening | 180° |
| Closing speed | Adjustable between two levels: Speed 1: 180°~15° Speed 2: 15°~0° |
| Special functions | Retaining arm (facilitates opening by reducing the force required) Force adjustment by arm position |
| Dimensions | 182 (W) x 41 (H) x 60 (D) mm |
| Material | Metallic |
| Weight | 1.75 kg |
- Yale Door Closer
- Installation material
- User instructions
