UNIVIEW
Videowall kit 2x2 - Includes monitors - Includes wall bracket - Daisy chain via HDMI
SKU: UV-MWA46B1E-KIT2X2-WALL
5.391.75 kr
Ekskl. moms
På lager
Videowall kit 2x2 - Includes monitors - Includes wall bracket - Daisy chain via HDMI
Kategori
Video wall monitors
Mærke
UNIVIEW
The videowall kits are complete solutions that integrate professional monitors and a sturdy cabinet type support, designed to create large format screens in different configurations.
Thanks to their modular structure and cabinet-type support, the video wall kits offer a stable, safe and aesthetic installation. In addition, they allow you to configure different sizes and resolutions to adapt to the specific needs of each project, guaranteeing an impressive and professional visual experience.
- Monitor videowall 46"
- FHD resolution
- Brightness 450 nits
- Frame 3,5 mm (A-A)
- Horizontal orientation
- 24/7

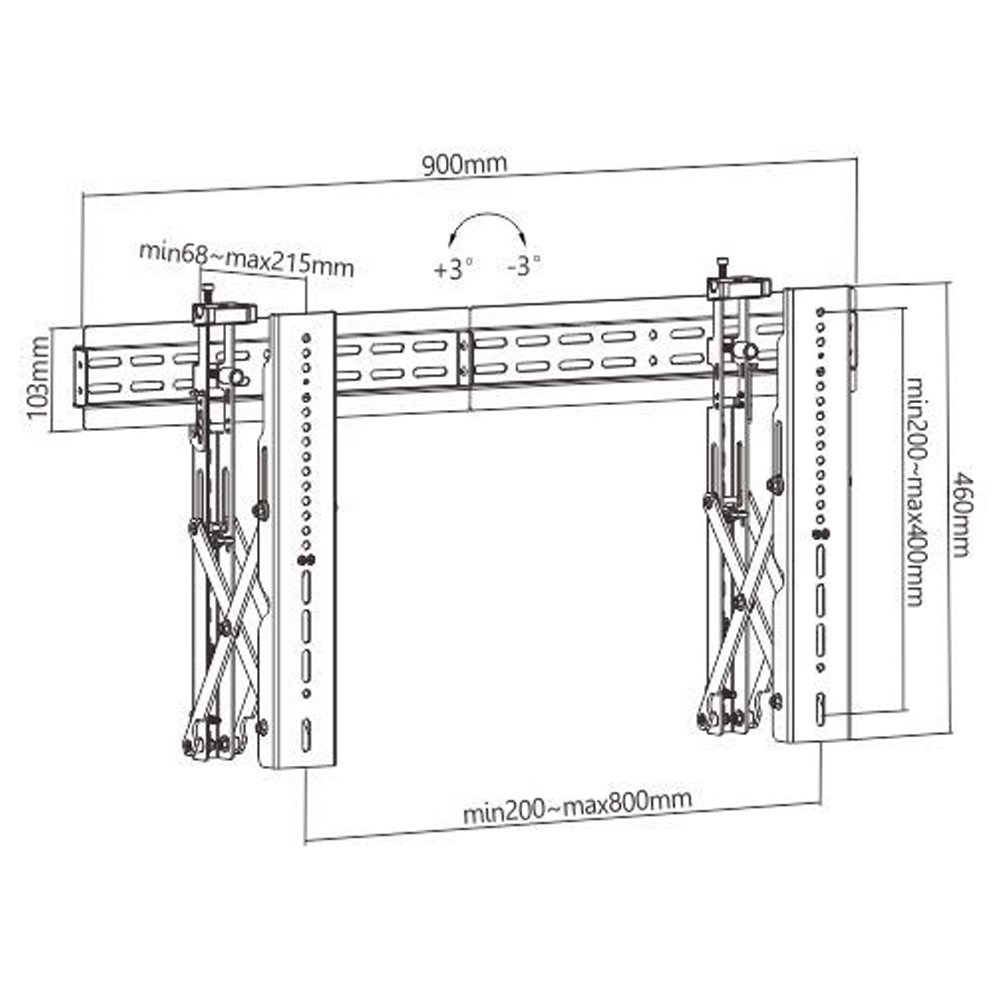

MONITOR SUPPORT (LVW02-48T) | |
| Type | Wall bracket for video wall |
| Maximum supported weight | 45 Kg |
| VESA | 200x200 mm 400x200 mm 300x300 mm 400x400 mm 600x400 mm 800x400 mm |
| Distance to wall | 68 ~ 215 mm |
| Level adjustment | +/-3° |
| Dimensions | 900 (W) x 465 (H) x 215 (D) mm |
| Material | Steel |
| Colour | Black |
UV-MW-A46-B1-E | |
| Brand | UNIVIEW |
| Size | 46" |
| Resolution | 1920x1080 |
| Refresh rate | 60 Hz |
| Panel type | ADS |
| Mark | 3,5 mm (A-A: total frame when installing two monitors together) Superior: 2,3 mm Left: 2,3 mm Inferior: 1,2 mm Law: 1,2 mm |
| Brightness | 450 nits |
| Contrast | 1200:1 |
| Anti-reflective (haze) | 25% |
| Response time | 8 ms |
| Viewing angle (horizontal / vertical) | 178º / 178º |
| Colour depth | 8 bit (16,7 M) |
| Color range | 72% NTSC |
| Functioning | 24/7 |
| Inputs | HDMI x1 DVI x1 VGA x1 CVBS x1 DisplayPort x1 USB 2.0 x1 RS232 x1 IR x1 |
| Outputs | HDMI x1 RS232 x1 |
| Daisy chain | Yes, via HDMI Up to a maximum of 9 monitors (total) |
| Video wall configuration | Using the remote control and the monitor's video wall settings |
| Orientation | Horizontal |
| Dimensions | 1.022,18 (W) x 576,77 (H) x 89,88 (D) mm |
| VESA | 600x400 mm |
| Weight | 11,4 Kg |
| Power | AC 100 ~ 240 V 50/60 Hz |
| Energy consumption | 130 W (max.) |
| Operating conditions | Temperature: 0 ~ 40 ºC Humidity: 20 ~ 90 % (No condensation) |
| Storage conditions | Temperature: -20 ~ 60 ºC Humidity: 10 ~ 90 % (No condensation) |
- 4 x Videowall monitors 46" UV-MW-A46-B1-E
- 4 x Power cable
- Network cable
- 3 x HDMI cable (1,8 m)
- 4 x Grounding cable
- IR receiver
- Remote control
- 4 x Monitor brackets
- Screws
- Quick start guide
